Place of Origin: | GuangDong, China |
Brand Name: | GUOMAT |
Certification: | ISO/TS16949:2009 |
Model Number: | FD330-22 VP ECO |
Minimum Order Quantity: | 6pcs |
---|---|
Price: | $199.9-299.9/pc |
Packaging Details: | Strong Carton Box Or As Customers Need |
Delivery Time: | 2-8 work days |
Payment Terms: | T/T, Western Union, L/C |
Supply Ability: | 1000pcs/week |
Item: | Rubber Air Spring | Warranty: | 12 Months |
---|---|---|---|
Material: | Rubber | Function: | Reduce Shock |
Brand: | CONTITECH | Type: | Rubber Bellow Only |
Weight: | 4.8KG | Color: | Black |
High Light: | FD330-22 Industrial Air Spring,330cm Rubber Actuator Industrial Air Spring |

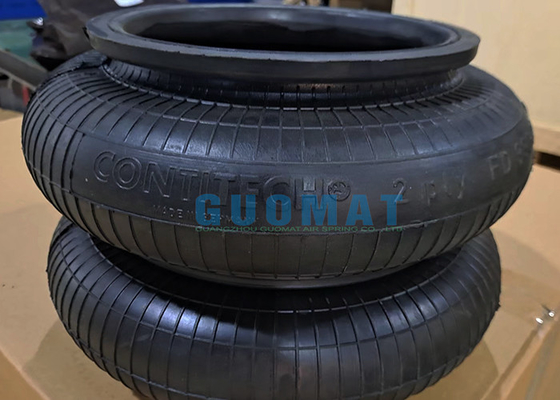

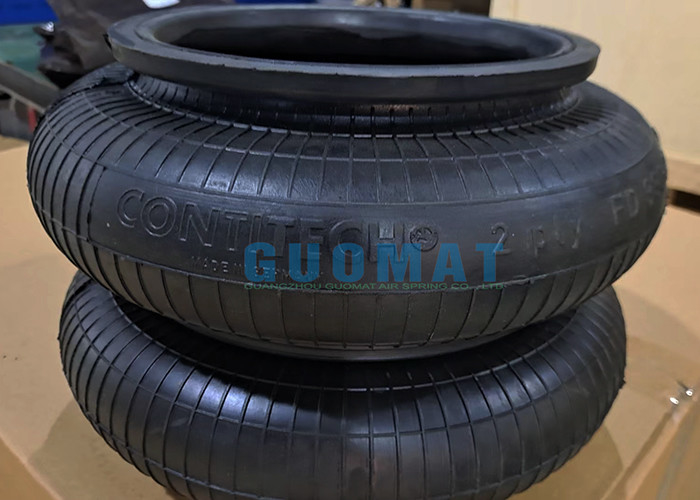

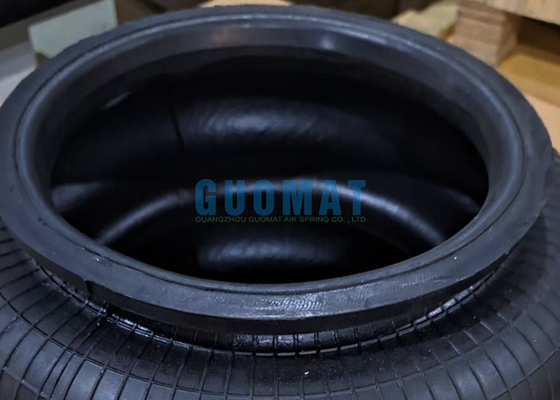

Original FD330-22 VP ECO Contitech Bellows Style Air Spring 330cm Industrial Rubber Actuator 75789
Product Description
Manufacturer: Continental Contitech
Manufacturer Part Number: FD330-22
Manufacturer Part Number: FD 330-22
Manufacturer Part Number: FD330-22 VP ECO
Manufacturer Part Number: FD 330-22 VP ECO
Manufacturer Part Number: FD330-22VPECO
Manufacturer Part Number: 62828
Comparable to: Firestone W013580812
Comparable to: Firestone W01 358 0812
Comparable to: Firestone W01-358-0812
Comparable to: Firestone WO13580812
Comparable to: Firestone WO1 358 0812
Comparable to: Firestone WO1-358-0812
FD330-22 Contitech Air Bellow Technical Data
Weight: 10.6 lbs. / 4.8kg
Max Inflation Pressure: 120 psi
330cm/ sq Effective Area
Max Stroke: 22cm/220mm
High Temp: Max 120C/225F
Order No. |
Type |
62828 |
Rubber bellows only |
75229 |
with crimped plates,1/4NPT air inlet A=0 in. excentrical |
75248 |
with crimped plates,air A=0 in. excentrical |
What is an FD330-22 VP ECO Contitech Air Spring?
FD330-22 VP ECO Contitech Air Spring is an actuator made by ContiTech, used for vibration isolation and as a pneumatic actuator. It is a double convoluted air spring that is part of the FD series with a load capacity range between 3.3 and 11.9 tons . The VP in the name stands for "Vibration Plus," indicating that this air spring is designed for applications involving vibration isolation. The ECO in the name refers to the type of bellows used in the actuator, which is a high-temperature bellow that can operate in temperatures ranging from -4 to 266 degrees Fahrenheit.
FD 330-22 Contitech Air Spring Assembly
CONTITECH |
FIRESTONE |
GOODYEAR |
GUOMAT |
FD 33-22 363 FD 33-22 472 FD 33-22 471 FD 33-22 500 FD 33-22 313 FD 33-22 337 FD 33-22 318 FD 33-22 346 FD 33-22 364 FD 33-22 365 FD 33-22 366 FD 33-22 367 FD 33-22 331 FD 33-22 368 FD 33-22 327 FD 33-22 343 FD 33-22 334 FD 33-22 363 |
W01-358-7180 W01-358-7181 W01-358-7183 W01-358-7344 W01-358-7400 W01-358-7401 W01-358-7403 W01-358-7404 W01-358-7405 W01-358-7406 W01-358-7408 W01-358-7409 W01-358-7410 W01-358-7423 W01-358-7424 W01-358-7429 W01-358-7437 W01-358-7180 |
2B12-425 2B12-411 2B12-412 2B12-304 2B12-309 2B12-320 2B12-307 2B12-410 2B12-313 2B12-426
2B12-319 2B12-406 2B12-432 2B12-300 2B12-427 2B12-320 2B12-311 |
2B7180 2B7181 2B7183 2B7344 2B7400 2B7401 2B7403 2B7404 2B7405 2B7406 2B7408 2B7409 2B7410 2B7423 2B7424 2B7429 2B7437 2B7180 |
GUOMAT Industrial Air Spring
