Place of Origin: | GuangDong, China |
Brand Name: | GUOMAT |
Certification: | ISO/TS16949:2009 |
Model Number: | 2B6941 |
Minimum Order Quantity: | 6pcs |
---|---|
Price: | $59.9-69.9/pc |
Packaging Details: | Strong Carton Box Or As Customers Need |
Delivery Time: | 2-8 work days |
Payment Terms: | T/T, Western Union, L/C |
Supply Ability: | 1000pcs/week |
Air Spring: | Suspension Air Spring | Warranty: | 12 Months |
---|---|---|---|
Material: | Rubber + Steel | Application: | For Truck/Trailer/Industrial Machine |
Firestone: | W01-358-6941 | Goodyear: | 2B9-265 |
Number Of Convolutions: | 2 | Triangle: | 6325/4448 |
High Light: | 2B9-265 Goodyear Air Spring Shock,Air Spring Shock For Scissors Lift |
FD200-19 448 Contitech Air Actuators 2B9-265 Goodyear Air Springs Shock For Scissors Lift and Tilt Table
Product Description
FD200-19 448 is an air spring produced by ContiTech for commercial trucks and other heavy vehicles. The air springs are dual-convoluted and designed to provide a smooth ride when carrying heavy loads. GUOMAT 2B6941 is produced with reference to Contitech FD200-19 448 and can be completely replaced.
Brand: GUOMAT
Model Number: 2B6941
Warranty: 1 Year
Material: Rubber
Type: Air Spring
Certification: ISO/TS16949:2009
Quality: High-Quality
MOQ: 10PCS
Application: Industrial Machine, Auto Suspension Systems
OEM Number
Firestone P/N : W01-358-6941 / WO1-358-6941
Firestone P/N : W01 358 6941 / WO1 358 6941
Firestone P/N : W013586941 / WO13586941
Contitech P/N : FD200-19 / FD 200-19
Contitech P/N : FD200-19 448 / FD 200-19 448
Contitech P/N : 161295
Goodyear P/N : 2B9-265 / 2B 9-265
Goodyear P/N : 578923202 / 578 923 202 / 578-923-202
GoodyearP/N : 2B9-280 / 2B 9-280
Goodyear P/N : 578923206 / 578 923 206 / 578-923-206
Triangle P/N : 6325 / 4448
Histeer P/N : 10302
SAF Holland P/N : 57006941

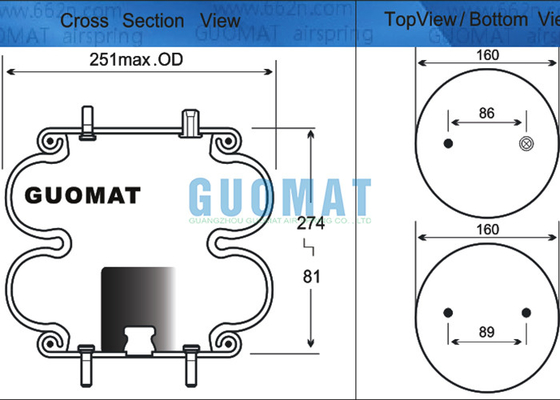

Technical Data
Working temperature |
-40°C bis +70°C |
Failure testing |
≥3 millions |
Top Cover Plate Diameter |
160mm |
Bottom Cover Plate Diameter |
160mm |
Rubber Bellows MAX Diameter |
251mm |
The Working Stroke |
MAX 274mm to MIN 81 mm |
Screw Center Distance of Top Cover Plate |
86mm |
Screw Center Distance of Bottom Cover Plate |
86mm |
Industrial Air Spring Application

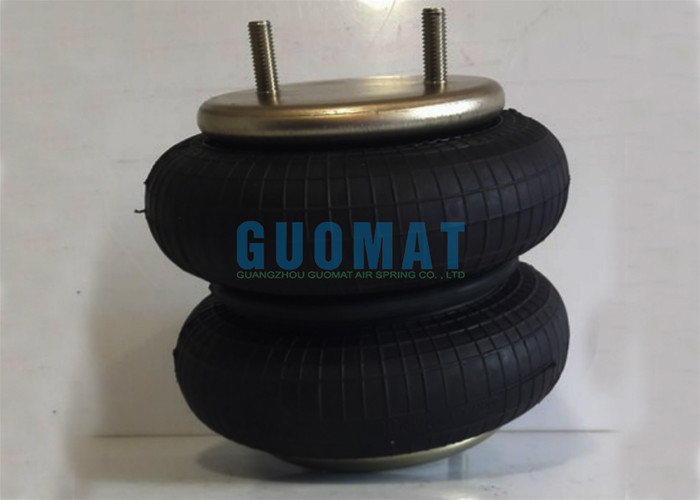

GUOMAT 2B6941 Double Convoluted Air Spring Real Picture
