| Air Spring: | Suspension Air Spring | Warranty: | 12 Months |
|---|---|---|---|
| Material: | Rubber + Steel | Application: | For Truck/Trailer/Industrial Machine |
| Net Weight: | 0.8KG | Packing Size: | 16*16*10(cm) |
| Type: | Convoluted Air Spring | Compression Height: | 20mm |
| High Light: | Suspension Single Convoluted Air Spring,50mm Single Convoluted Air Spring |
||

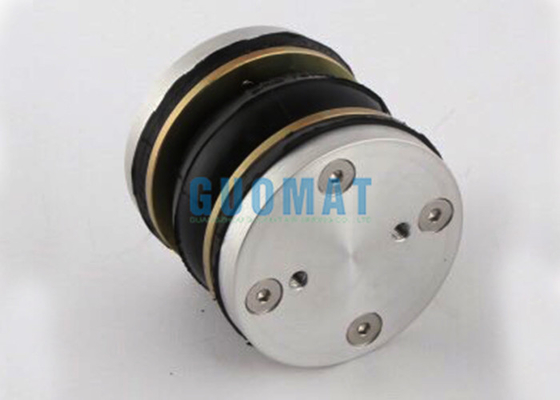

70mm-50mm Contitech Industrial Bellows Actuator FS22-3 DI Small Single Convoluted Style Air Spring
Product Description
Contitech FS22-3
Contitech FS 22-3
Contitech FS22-3 DI
Contitech FS 22-3 DI
Contitech FS22-3 DI G1/4
Contitech FS 22-3 DI G1/4
Contitech FS22-3,FS 22-3,FS22-3DIG1/4
Contitech Order Number 69342
Firestone W01R584079
Firestone W01 R58 4079
Firestone W01-R58-4079
Firestone WO1R584079
Firestone WO1 R58 4079
Firestone WO1-R58-4079
Technical Data: GUOMAT 1B22-3
GUOMAT 1B22-3 air spring is produced according to the specifications and dimensions of Contitech FS 22-3.

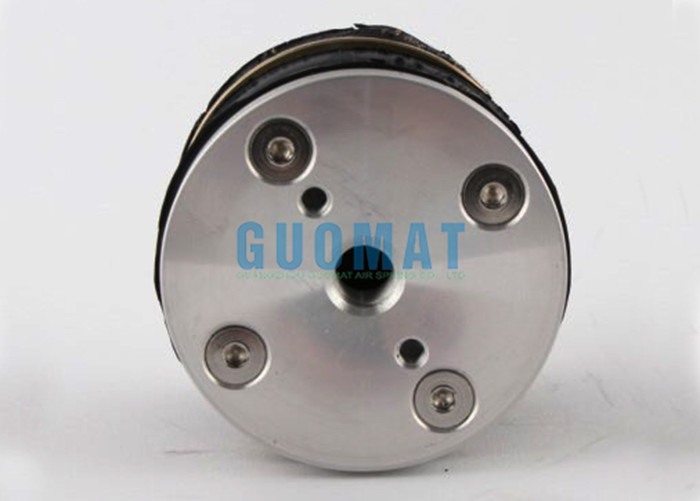

The diameter of the upper cover is 78 mm, the center distance between the threaded holes is 36 mm, the specification of the threaded holes: 2 pieces of M6 with a depth of 8 mm, and the specification of the air hole is G1/4.
The diameter of the bottom cover is 78 mm, the center distance between the threaded holes is 36 mm, the specification of the threaded holes: 2 pieces of M6 with a depth of 8 mm
The maximum outer diameter of the air spring is 80 mm, and the suitable installation diameter is 95 mm. The maximum height is 70mm, the minimum height is 50mm, and the compressed height is 20mm
|
Pressure P |
bar |
3 |
4 |
5 |
6 |
7 |
8 |
Vol.V(I) |
|
Force(Load) |
kN |
0.9 |
1.2 |
1.5 |
1.7 |
2 |
2.3 |
0.084 |
|
Spring Rate |
N/mm |
84 |
103 |
123 |
142 |
162 |
180 |
|
|
Natural Frequency |
Hz |
4.9 |
4.7 |
4.6 |
4.5 |
4.5 |
4.4 |
|
Pressure P |
bar |
3 |
4 |
5 |
6 |
7 |
8 |
Vol.V(I) |
|
Height H (mm) |
60 |
0.84 |
1.11 |
1.39 |
1.68 |
1.97 |
2.26 |
0.084 |
|
50 |
1.41 |
1.78 |
2.16 |
2.53 |
2.91 |
3.3 |
0.052 |
Contitech Single Convoluted Industrial Air Spring
|
Contitech Number |
Order Number |
Air Fitting |
Max.Outer Diameter |
Max.Height |
Min.Height |
|
FS 22-3 DI CR |
69342 |
G1/4 |
80mm |
70mm |
50mm |
|
FS 44-5 DI CR |
70205 |
G3/8 |
110mm |
90mm |
50mm |
|
FS 76-7 DI CR |
70208 |
G1/2 |
152.5mm |
110mm |
55mm |
|
FS 76-7 DS CR |
70216 |
G1/2 |
153.5mm |
105mm |
50mm |
|
FS 138-8 DS |
66507 |
G1/2 |
184mm |
130mm |
50mm |
|
FS 210-10 DS |
67404 |
G1/2 |
210mm |
150mm |
50mm |
|
FS 412-10 DS |
67962 |
G1/2 |
260mm |
150mm |
50mm |
|
FS 614-13 DS |
68045 |
G1/2 |
310mm |
175mm |
50mm |
|
FS 816-15 DS |
70043 |
G1/2 |
310mm |
190mm |
50mm |
