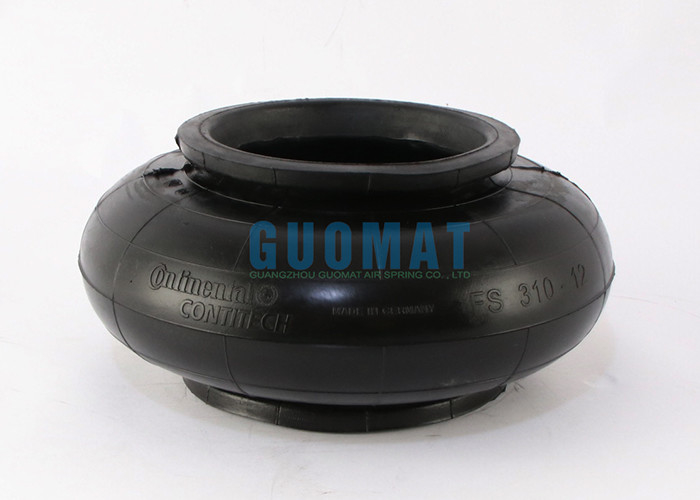

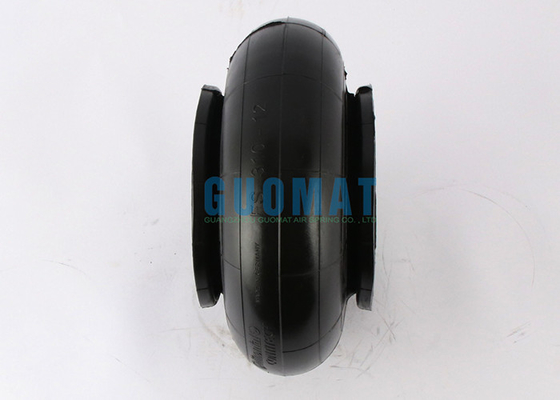

Continental FS310-12 Rubber Air Spring Original Contitech Single Convolution Air Bellow For Industrial

Continental FS310-12 Rubber Air Spring Original Contitech Single Convolution Air Bellow For Industrial


Product Description

FS 310-12 VP ECO is a type of air spring or air actuator manufactured by Continental . It is a single convoluted bellows style air spring designed for various pneumatic applications. The "310-12" in the product name indicates the size and type of the air spring.

Item: Industrial Air Spring

Brand: Contitech

Material: Rubber

Warranty: 1 Year

Country of Origin: Germany

Weight: 2.21 lbs.

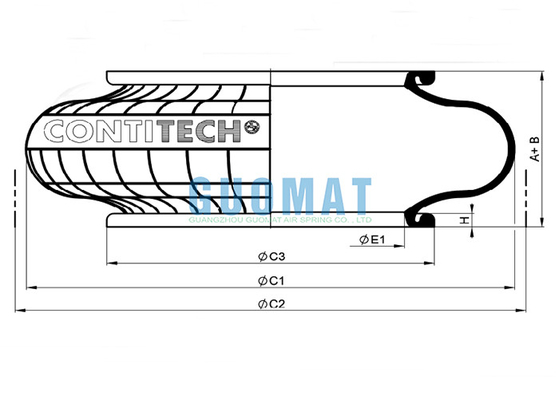

Technical Data: Contitech FS 310-12 VP ECO

Min.pressure: 0 bar

Return force to min.height: ≤120N

Overal  weight,standard quality: 1.0kg

Overal weight,hign temperature quality: 1.4kg

Minimum height: 55mm

Maximum stroke: 120mm

Maximum diameter: 320mm

Installation space needed: 335mm

Bead diameter: 172mm

Inner-Øsealing and mounting surface: 131mm

Height of bead: 11mm

Maximum loading capacity(7bar/115mm):26.8kN

Maximum lifting pressure: 8 bar

Corss Reference Numbers

Features of FS 310-12 VP ECO

• Single Convolution Bellows: It is designed with a single convoluted bellows , which provides flexibility and allows for the absorption of shocks and vibrations.
• Resistant to Mineral Oils: The FS 310-12 VP ECO air spring is resistant to mineral oils , ensuring its durability and long-lasting performance.
• Temperature Resistance: It can operate in a temperature range of -4°F to 266°F (-20°C to 130°C), making it suitable for various industrial applications.
• Rated Pressure: The air spring is rated for a maximum pressure of 120 psi.

Applications of FS 310-12 VP ECO

• The FS 310-12 VP ECO air spring is commonly used in pneumatic applications that require reliable and efficient force generation and suspension . Some possible applications include:
• Industrial Machinery: It can be used in industrial machinery for load support, vibration isolation, and shock absorption.
• Automotive: The air spring can be utilized in automotive suspension systems to provide a smoother ride and improved load-carrying capacity.
• Material Handling Equipment: It finds applications in material handling equipment, such as forklifts and scissor lifts, to provide cushioning and stability.
• Railway Systems: The FS 310-12 VP ECO air spring can also be used in railway systems for suspension and vibration control.
