| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 6X2 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $89.9-99.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Style: | Flange Type Air Spring | Material: | Rubber+Aluminum |
|---|---|---|---|
| Warranty: | 1 Year | Other Name: | Bags Rubber Bellows |
| Bellows NO.: | Springride DF 6 X 2 | Net Weight: | 3kg |
| Position: | Industrial Machine | Connection Method: | Flange Connection |
| High Light: | 6''X2 Norgren Air Spring,Double Convoluted Norgren Air Spring |
||

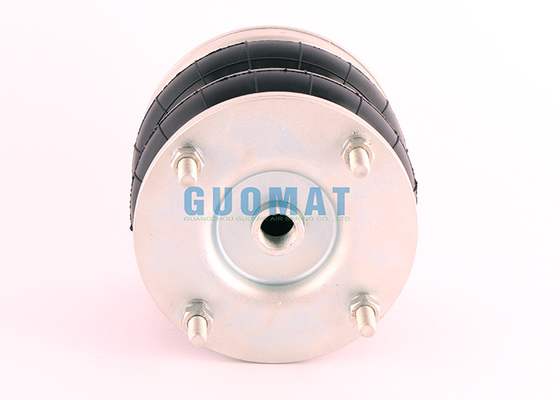

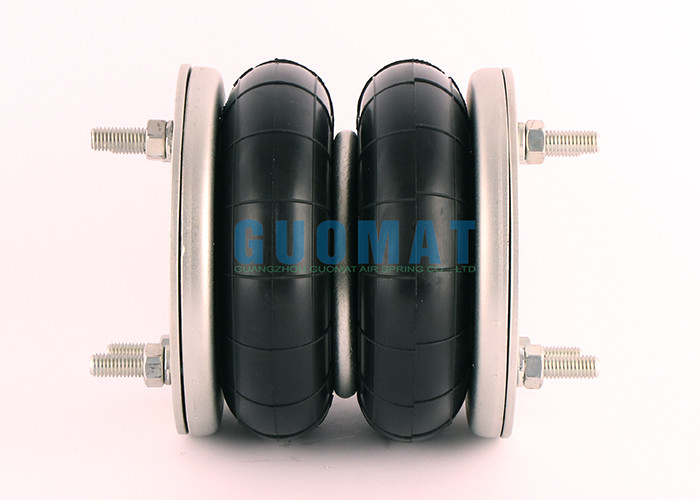

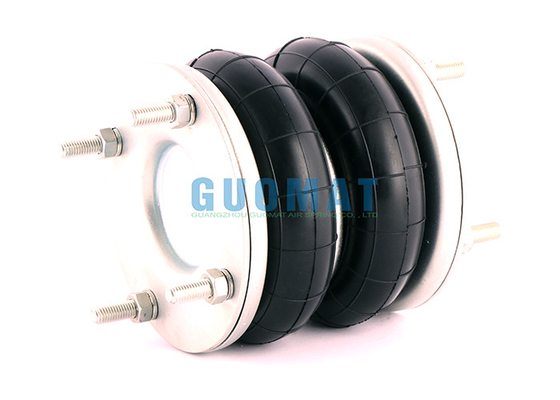

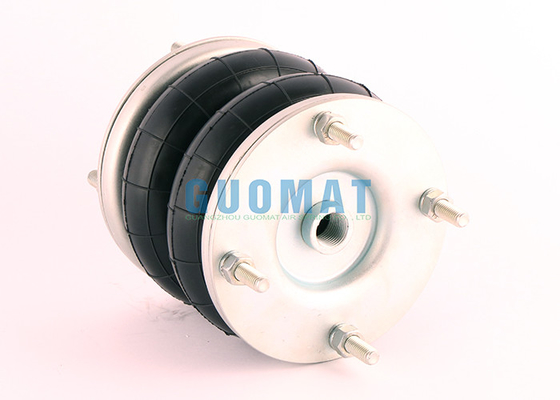

6''X2 Norgren Air Spring M/31062 Double Convoluted Air Bellow Flange Connection For RV Suspension Shock Absorption
Product Description
|
Item |
Flange Air Spring |
Brand |
GUOMAT |
|
Model No. |
2B6X2 |
Warranty |
1 Year |
|
Material |
Rubber and Iron Parts |
MOQ |
1 PC |
|
Shipment |
Fedex,UPS,EMS,DHL,By Air,By Sea |
Payment |
L/C,T/T,Western Union,PayPal |
GUOMAT 2B6X2 Replace These Air Spring
Continental ContiTech: FD 76-14 DS CR
Continental ContiTech: 70215
Continental ContiTech: FD 76-14 1/2 M10
Continental ContiTech: FD 76-14 DS G1/2
Continental ContiTech: FD 76-14 DS G1/2 CR
Continental ContiTech: FD 76-14 DS CR G1/2
Continental ContiTech: FD 76-4 DS CR / FD76-14DSCR / FD7614DSCR
Continental ContiTech Bellow: FD 76-14 / FD76-14 / FD7614
Firestone Number: W01-R58-4053 / W01R584053 / W01 R58 4053
Firestone Style: 6''x2 / 6''X2 / 6x2
Dunlop FR: 6''x2
Dunlop FR: SP1482
Dunlop UK (Pneuride): PNP 30550 0112 / PNP30550 0112
Norgren: M/31062 / M 31062 / M31062
NominalØ(invh) x convolutions: 6''x2 / 6''X2 / 6X2
Parker: 6''x2 9109001
Technical Data
6x2 is a double convoluted air spring, the connection method is flange connection, G1/2 air hole. The diameter of the upper cover plate is 153.5 mm, four M10 screw rods, and the center distance between the screw rods is 127 mm. The diameter of the bottom cover is 153.5 mm, four M10 screw rods, and the center distance between the screw rods is 127 mm. The natural outer diameter of the air spring is 159 mm, and the natural height is 135.5 mm.
Applies to the Following Devices
Clamp Device
Table Lifter
Level Platforms
Bumper and actuator
Webb Tensioning Device
Quick Lock Device
Double Convoluted Air Spring
|
Model |
Max.diameter |
Overall diameter |
Stroke |
Height(mm) |
Weight |
||
|
(mm) |
(mm) |
(mm) |
H.min. |
H.design |
H.Max. |
(kg) |
|
|
23/4x2 |
80 |
95 |
45 |
65 |
90 |
110 |
0.26 |
|
23/4x2(AL) |
80 |
95 |
45 |
65 |
90 |
110 |
0.40 |
|
41/2x2(AL) |
125 |
140 |
85 |
65 |
100 |
150 |
0.95 |
|
6x2 |
175 |
190 |
115 |
80 |
140 |
195 |
1.3 |
|
6x2(AL) |
175 |
190 |
115 |
80 |
140 |
195 |
2.2 |
|
6x2 |
175 |
190 |
115 |
75 |
140 |
190 |
2.6 |
|
8x2 |
220 |
245 |
175 |
75 |
160 |
250 |
3.7 |
|
10x2 |
270 |
300 |
225 |
75 |
170 |
300 |
4.9 |
|
12x2 |
325 |
350 |
225 |
75 |
170 |
300 |
6.7 |
|
141/2x2 |
400 |
425 |
265 |
75 |
200 |
340 |
8.9 |
