| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1B7544 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $49.9-59.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Item Name: | Rubber Air Spring | Warranty: | 12 Months |
|---|---|---|---|
| Material: | Rubber + Steel | MOQ: | 10 Pieces |
| Goodyear No.: | 1B7-544 | Quality: | 100 % Tested |
| Type: | Air Shock | Function: | Reduce Vibration |
| High Light: | Single Convolution Industrial Air Spring,1B7544 Industrial Air Spring,Goodyear Rubber Air Bag |
||
1B7544 Single Convolution Industrial Air Spring Replace 1B7-544 Goodyear Rubber Air Bag
Product Description
1B7-544 is a Goodyear model number and refers to a specific type of rubber air bag manufactured by Goodyear. A rubber air bag, also known as an air spring or air bag, is an inflatable component used in a variety of applications, including automotive suspension systems, industrial machinery, and air ride systems.
Technical Parameters
The diameter of the upper cover plate is 105 mm, G1/4 air hole, threaded hole of M8 specification, 15 mm deep, and the center distance between the threaded holes is 70 mm.
The diameter of the bottom cover plate is 105 mm, the threaded holes of M8 specification are 15 mm deep, and the center distance between the threaded holes is 70 mm.
When the air spring is at 0.7MPa, the maximum outer diameter is 195mm, the natural height is 120mm, the minimum compression height is 55mm, and the full stroke is 75mm
|
Working medium |
water, air |
|
Working pressure |
≤0.7Mpa |
|
Burst pressure |
≥1.6Mpa |
|
Fatigue times |
≥106 times |
|
Applicable temperature |
-35℃-+60℃ |
Cross Reference
Goodyear Number: 1B7-544 / 1B 7-544 / 1B7 544
Goodyear Flex Number: 579-91-3-520 / 579 91 3 520 / 579913520
Goodyear Bellow Number: 579-912-544 / 579 912 544 / 579912544
ENIDINE Number: YI-1B7-544 / YI 1B7 544 / YI1B7544
1B7-544 Goodyear Air Spring Applications
The 1B7-544 Goodyear Air Spring is a special type of air spring manufactured by Goodyear. It is the use of compressed air to provide support and cushioning for a variety of applications, especially in industrial and automotive environments. They are designed to absorb shock and vibration and are often used in suspension systems to improve ride comfort and stability.
While specific applications for 1B7-544 Goodyear Air Spring may vary depending on the specific needs of a particular system or vehicle, it is typically used in applications requiring load carrying capacity such as trucks, trailers, buses and agricultural equipment. Air springs are designed to provide a smooth and controlled ride, reducing the impact of bumps and uneven roads on the vehicle and its cargo.
Goodyear Convoluted Air Spring
|
Goodyear 1B14-350 (Bellows No. 578-91-3-351) |
|
Goodyear 1B14-358 (Bellows No. 578-91-3-352) |
|
Goodyear 2B9-200 (Bellows No. 578-92-3-202) |
|
Goodyear 2B9-250 (Bellows No. 578-92-3-206) |
|
Goodyear 2B9-246 (Bellows No. 578-92-3-211) |
|
Goodyear 2B9-607 (Bellows No. 578-92-3-208) |
|
Goodyear 2B9-495 (Bellows No. 578-92-3-217) |
|
Goodyear 2B10-226 (Bellows No. 578-92-3-250) |
|
Goodyear 2B12-300 (Bellows No. 578-92-3-309) |
|
Goodyear 2B12-434 (Bellows No. 578-92-3-310) |
|
Goodyear 2B12-345 (Bellows No. 578-92-3-315) |
|
Goodyear 2B14-354 (Bellows No. 578-92-3-353) |
|
Goodyear 2B14-362 (Bellows No. 578-92-3-356) |
|
Goodyear 3B12-300 (Bellows No. 578-93-3-100) |
|
Goodyear 3B12-322 (Bellows No. 578-93-3-103) |
|
Goodyear 3B14-351 (Bellows No. 578-923-3-350) |

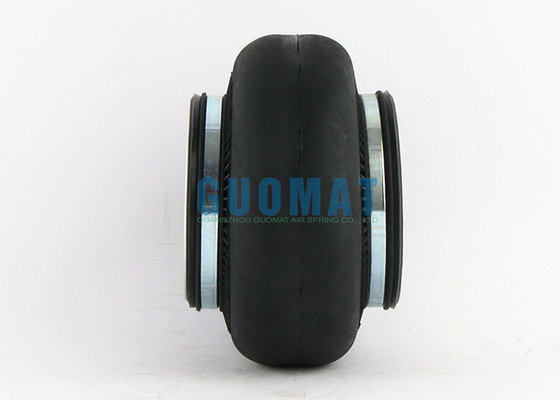

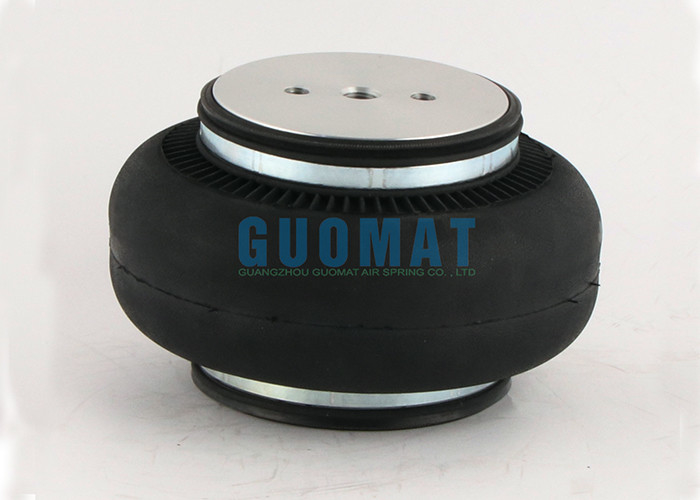

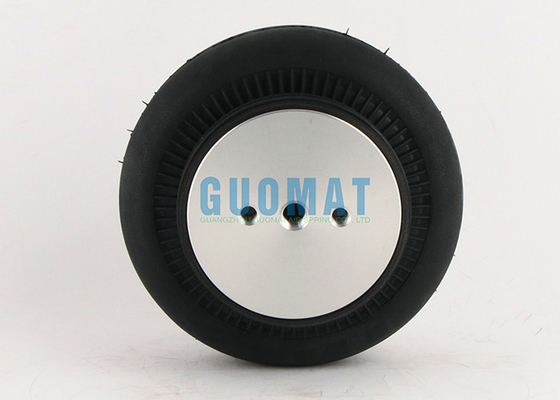

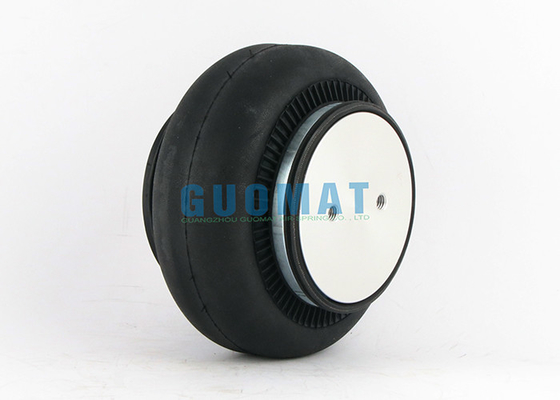

The Real Pictures
