| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B6799 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $59.9-69.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Spring Type: | Double Convoluted Type Air Spring | Warranty: | 12 Months |
|---|---|---|---|
| Material: | Rubber + Steel | Package: | Standard Packing Or Customized |
| Firestone: | W013586799 | Contitech: | 161388 |
| Color: | Black | Other Name: | Air Shock Part |
| High Light: | W01-358-6799 Air Spring Assembly,FD530-35 543 Air Spring Assembly |
||
W01-358-6799 Firestone Air Spring Assembly FD530-35 543 Contitech Convoluted Air Actuator
Product Description
The W01-358-6799 Firestone Air Spring is a genuine Firestone replacement air spring commonly used on a wide variety of vehicles. It is designed to provide a smoother ride and enhance vehicle performance, ultimately improving driver safety. W01-358-6799 air spring is compatible with and can be used as a replacement for SAF Holland (Neway) 90557203.
GUOMAT 2B6799 refer to the following OEM number:
Firestone Number 233-2
Firestone Number W01-358-6799
Firestone Number W01 358 6799
Firestone Number W013586799
Firestone Number WO1-358-6799
Firestone Number WO1 358 6799
Firestone Number WO13586799
Contitech Number FD530-35 543
Contitech Number FD 530-35 543
Contitech Number FD530-35543
Contitech Number FD 530-35543
Goodyear Number 2B14-476
Goodyear Number 2B 14-476
Goodyear Number 2B14 476
Goodyear Number 2B14476
Goodyear Number 578923356
Goodyear Number 578 92 3 356
Goodyear Number 578-92-3-356
Neway Holland Number 90557203
SAF Holland Number CBL 14/15/16/17
Technical Parameters
|
Maximum outer diameter |
Ø406 max. OD |
|
Top Cover Diameter |
Ø289mm |
|
Number of top cover studs |
4 |
|
Distance between top cover studs |
Ø159mm |
|
Diameter of bottom cover |
Ø289mm |
|
Number of Bottom Cover Studs |
4 |
|
Distance between Bottom Cover Studs |
Ø159mm |
|
Maximum height |
391mm |
|
Minimum height |
104mm |
|
Compression height |
287mm |
Why Choose Us?
1. More than 15 years of production and sales experience, we have rich experience and provide you with suitable solutions
2. There are many kinds of shock absorption products, so that you can choose the products that meet your needs
3. Factory price, competitive
4. Many models are in stock, fast delivery
5. High product quality
6. 1 year warranty
Other Firestone Air Spring
|
W01-358-7557 Firestone, 233-2 Bellows, Repalce Reyco 19983-01(21AR,74AR) Watson&Chalin AS-0089 |

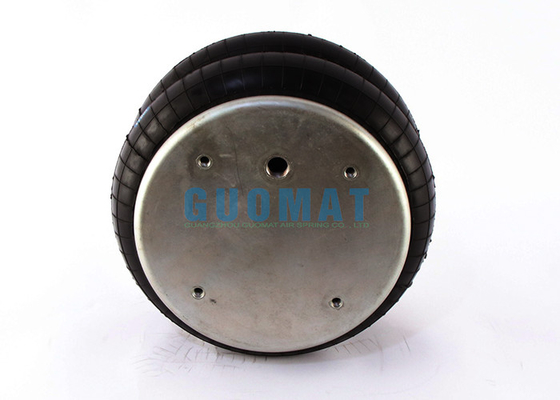

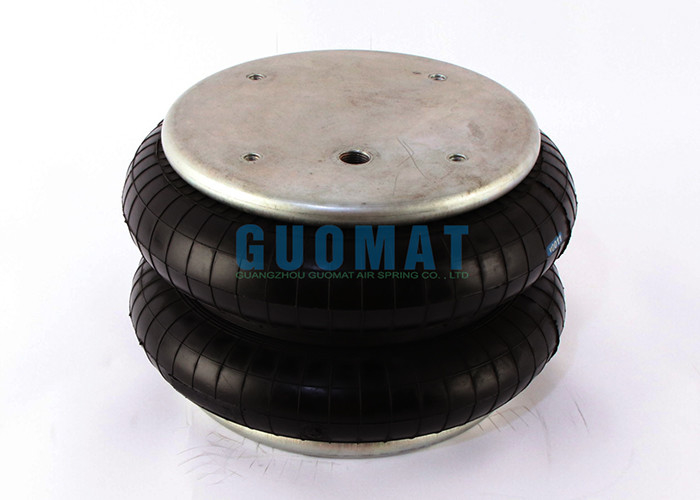

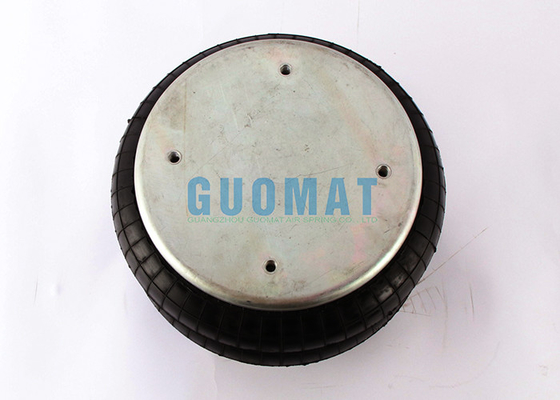

The Following is the Product Picture Display
