| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B6943 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $59.9-69.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Name: | Air Vibration | Warranty: | 12 Months |
|---|---|---|---|
| Material: | Rubber + Steel | Number Of Convolutions: | 2 |
| Goodyear: | 2B9-250 | Contitech: | FD 200-25 426 |
| Operation: | Inflatable | MOQ: | 5 Pieces |
| High Light: | Contitech Double Bellow Air Spring,W01-358-6943 Double Bellow Air Spring,426/161332 Double Bellow Air Spring |
||

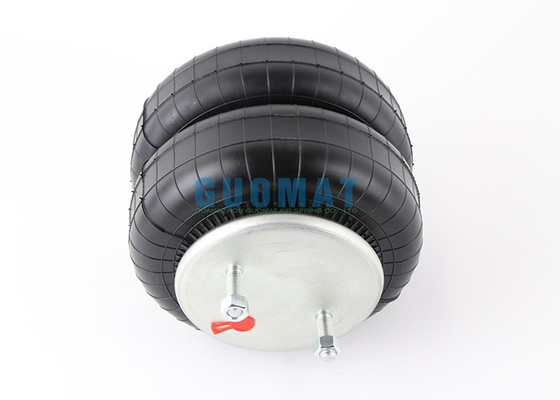

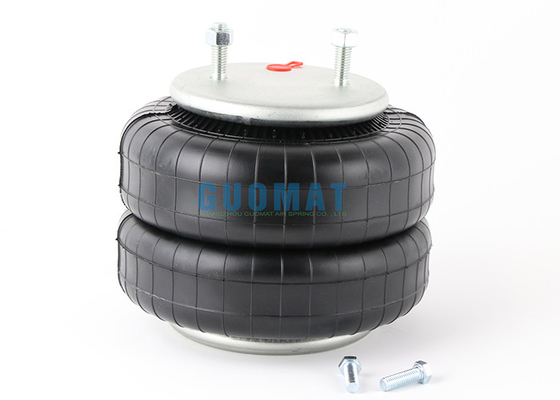

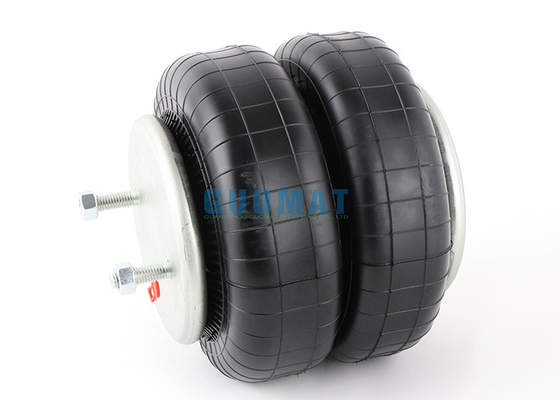

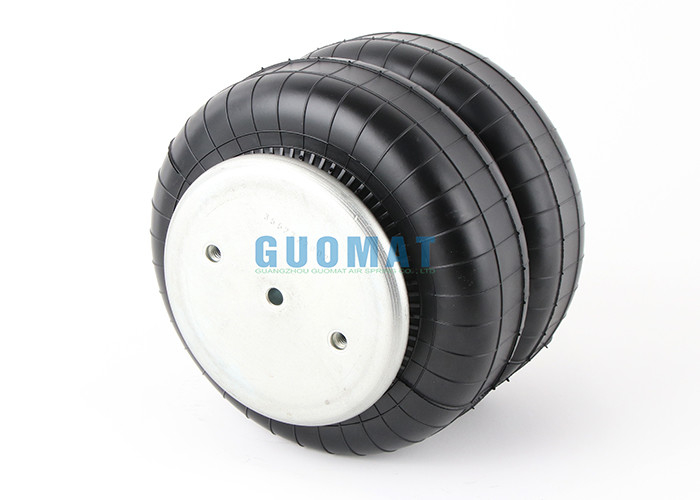

FD200-25 426/161332 Contitech Double Bellow Air Spring W01-358-6943 Firestone Air Lift Suspension
Product Description
Brand: GUOMAT
Model Number: 2B6943
Warranty: 1 Year
Material: Rubber and Steel
Type: Air Spring
Certification: ISO/TS16949:2009
Quality: High-Quality
MOQ: 5PCS
Application: Industrial Machine, Auto Suspension Systems
Technical Data
The diameter of the top cover is 160 mm, the screw type is 1/2-13UNC, the number of screws is 2, the center distance between the screws is 89 mm, the position of the air hole is a partial hole, and the type of air hole is 1/4NPTF.
The diameter of the bottom cover is 160 mm, the type of threaded holes is 3/8-16UNC, the number of threaded holes is 2, and the center distance between the threaded holes is 89 mm.
The maximum outer diameter of the air spring is 262 mm, the maximum height is 325 mm, the minimum height is 79 mm, and the compressed height is 246 mm.
Cross Reference Numbers
|
Firestone : W01-358-6943 : W013586943 : W01 358 6943 Contitech : FD 200-25 426 : FD200-25426 : 161332 Goodyear : 2B9-250 : 2B 9-250 : 2B9 250 : 578923206 : 578-923-206 : 578 923 206 Triangle : 6332/4426 |
Watson&Chalin : AS-0041
Neway / SAF : 90557237
V-Steer II (Lift Bag)
Van Raden
Ridewell : 1003586943C
Tuthill : 6352
Key Features of the 2B9-250 Goodyear Air Spring
Double Convoluted Design : The 2B9-250 Goodyear Air Spring features a double convoluted design , which means it has two bellows or air chambers. This design provides enhanced load support and stability.
Rubber Construction: The air spring is made of rubber, which offers flexibility and resistance to wear and tear. This helps to ensure a longer lifespan for the air spring.
High-Quality Manufacturing: Goodyear is known for its commitment to quality manufacturing processes. The 2B9-250 Goodyear Air Spring is manufactured to meet strict standards , ensuring reliability and performance.
Easy Installation: The 2B9-250 Goodyear Air Spring is designed for easy installation , making it convenient for mechanics and vehicle owners.
