Place of Origin: | GuangDong, China |
Brand Name: | GUOMAT |
Certification: | ISO/TS16949:2009 |
Model Number: | 6X1 |
Minimum Order Quantity: | 6pcs |
---|---|
Price: | $119.9-159.9/pc |
Packaging Details: | Strong Carton Box Or As Customers Need |
Delivery Time: | 2-8 work days |
Payment Terms: | T/T, Western Union, L/C |
Supply Ability: | 1000pcs/week |
Warranty: | 12 Months | Material: | Rubber + Steel |
---|---|---|---|
Operation: | Inflatable | MOQ: | 1 Piece |
Spring Type: | Flange Connection Air Spring | Color: | Black |
Application: | Industrial Machine | Package: | Carton |
High Light: | Single Convoluted Lifting Air Spring,M/3106 Lifting Air Spring |
GUOMAT Durable Airbag 6X1 Replace M/31061 NORGREN Single Convoluted Lifting Air Spring
Product Description
GUOMAT Number: 6X1
Contitech Number: FS76-7
Contitech Number: FS 76-7
Contitech Number: FS76-7 1/2 M10
Contitech Number: FS 76-7 1/2 M10
Contitech Number: FS76-7 DS CR
Contitech Number: FS76-7DSCR
Contitech Number: FS 76-07 DS G1/2 CR
Firestone Number: W01-R58-4052
Firestone Number: W01 R58 4052
Firestone Number: W01R584052
Firestone Style: 6''x1 / 6''X1 / 6X1
Dunlop FR Number: SP153
Dunlop UK(Pneuried): PNP 30551 01 13
Dunlop UK(Pneuried): PNP305510113
Norgren Number: M/31061
Norgren Number: M 31061
Norgren Number: M31061
Norgren Ø (inch) x convolutions: 6X1 / 6''X1
Technical Data: GUOMAT 6X1 Flange Air Spring
The diameter of the top cover of the air spring is 183.5 mm, the specification of the air hole is G1/2, the specification of the screw rods is 4 M10, and the center distance between the screw rods is 155.5 mm.
The diameter of the air spring bottom cover is 183.5 mm, the specification of the screw rods is 4 M10, and the center distance between the screw rods is 155.5 mm.
The natural outer diameter of the air spring is 205 mm, and the natural height is 130 mm
The Role of Industrial Air Springs
Industrial air springs play an important role in various applications , particularly in the transportation and machinery industries. They are designed to absorb vibration and provide support and stability in suspension systems. Here are some key roles of industrial air springs:
Firestone | Contitech | Dunlop Pneuride | Dunlop Springride | Norgren |
W01R584050 | FS 44-5 DI | 4 1/2‘’x1 | SP2334 | PM/31041 |
W01R584051 | FD 44-10 DI | 4 1/2‘’x2 | SP2441 | PM/31042 |
W01R584035 | FT 44-15 DI | 4 1/2''x3 | SP2895 | PM/31043 |
W01R584078 | FS 76-7 DI | 6‘’x1 | SP2913 | PM/31061 |
W01R584052 | FS 76-7 DS | 6‘’x1 | SP1536 | M/31061 |
W01R584070 | FD 76-14 DI | 6‘’x2 | SP2917 | PM/31062 |
W01R584053 | FD 76-14 DS | 6‘’x2 | SP1482 | M/31062 |
W01R584054 | FS 138-8 DS | 8‘’x1 | SP1537 | M/31081 |
W01R584055 | FD 138-18 DS | 8‘’x2 | SP1490 | M/31082 |
W01R584057 | FS 210-10 DS | 10‘’x1 | FS 210-10 DS | M/31101 |

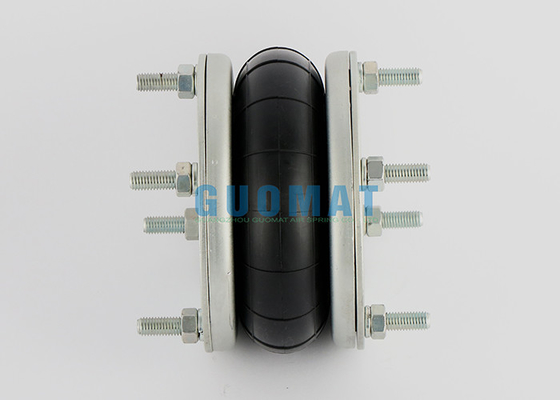

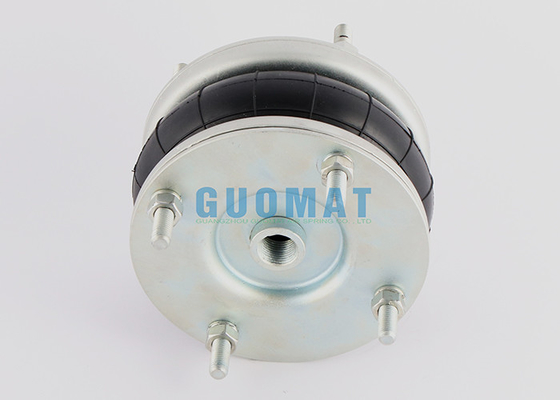

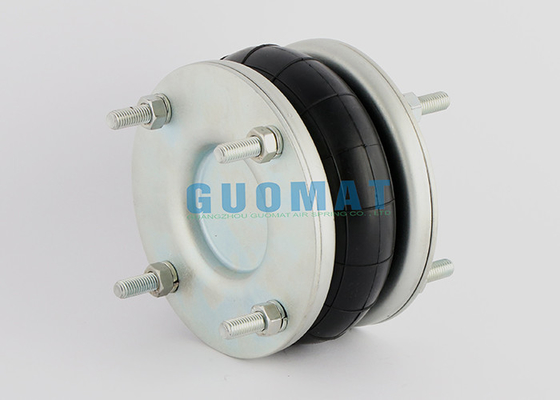

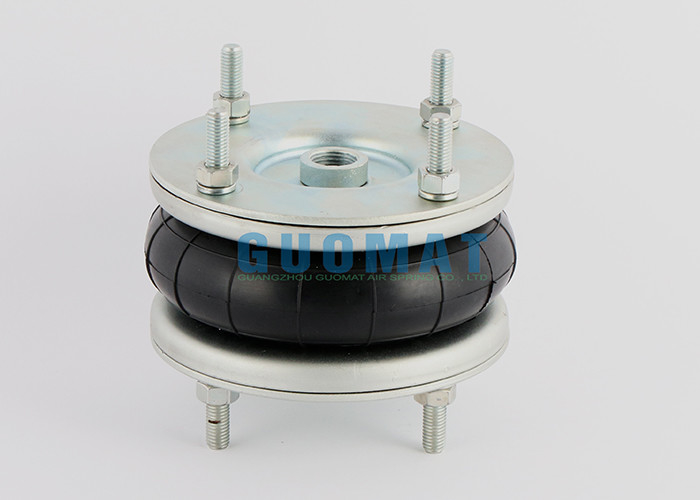

The Real Pictures
