| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1B200-10 |
| Minimum Order Quantity: | 2pcs |
|---|---|
| Price: | $49.9-59.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Type: | Suspension Air Spring | Material: | Rubber+Steel |
|---|---|---|---|
| Warranty: | 12 Months Warranty | Operation: | Gas-Filled |
| Cover Plate: | Aluminum Plate | Plate Dia.: | 160mm |
| Air Hole: | G3/4 | Other Name: | Industrial Air Spring Bags |
| High Light: | SP1B12 Phoenix Suspension Air Spring,Suspension Air Spring Single Convoluted,Phoenix Suspension Air Spring |
||
SP1B12 Phoenix Suspension Air Spring FS 200-10 G3/4 Air Connection Contitech Single Convoluted Air Bellow
Product Description
|
Spring Type |
Convoluted Air Spring |
Brand |
GUOMAT |
|
Model NO. |
1B200-10 |
Air Inlet |
G3/4 |
|
Material |
Rubber,Steel,Metal |
Size |
OEM Size |
| Warranty | 1 Year | MOQ | 1 Piece |
Technical Parameters of GUOMAT 1B200-10 Air Spring
The natural outer diameter of GUOMAT 1B200-10 air spring is 220 mm and the natural height is 110 mm. The diameter of the upper cover is 160 mm, the air hole specification is G3/4, and the two threaded holes are M8X1.25. The center distance between the threaded holes is 89 mm, and the distance between the threaded hole and the air hole is 38 mm. The diameter of the bottom cover is 160 mm, and the two threaded holes are M8X1.25. The distance between the threaded holes and the air holes is 38 mm.
Refer Numbers
Firestone Air Spring W01-M58-6374 ; W01 M58 6374 ; W01M586374
Firestone Air Spring WO1-M58-6374 ; WO1 M58 6374 ; WO1M586374
ContiTech Air Spring FS200-10 ; FS 200-10 ; FS200 10
ContiTech Air Spring FS 200-10 CI ; FS200-10 CI
ContiTech Air Spring FS 200-10 CI 3/4 NPT
ContiTech Air Spring FS200-10 CI 3/4 NPT
Norgren Air Spring PM/31091 ; PM 31091 ; PM31091
Norgren Air Spring 8 1/4x1
Phoenix Air Spring SP1B12 ; SP 1B 12
Dunlop(FR) Air Spring 9''1/4x1 S09101
Bosch Air Spring 822419004
Festo Air Spring EB-250-85
EB-250-85 Festo Data Sheet
| Size | 250 |
| Required installation diameter | 265mm |
| Stroke | 85mm |
| Max. extended height | 140mm |
| Max. angle of inclination | 20 deg |
| Max.offset | 10mm |
| Min. installation height | 51mm |
| Mode of operation | Single-acting |
| Symbol | 00991205 |
| Operating pressure | 0 bar ... 8 bar |
| Reset force | 200N |
| Pneumatic connection | G3/4 |
Ordering data – Single-bellows cylinder
|
Festo |
Part No. |
Size |
Stroke |
|
EB-145-60 |
36486 |
145 |
60 |
|
EB-165-65 |
36487 |
165 |
65 |
|
EB-215-80 |
36488 |
215 |
80 |
|
EB-250-85 |
36489 |
250 |
85 |
|
EB-325-95 |
193788 |
325 |
95 |
|
EB-385-115 |
193789 |
385 |
115 |

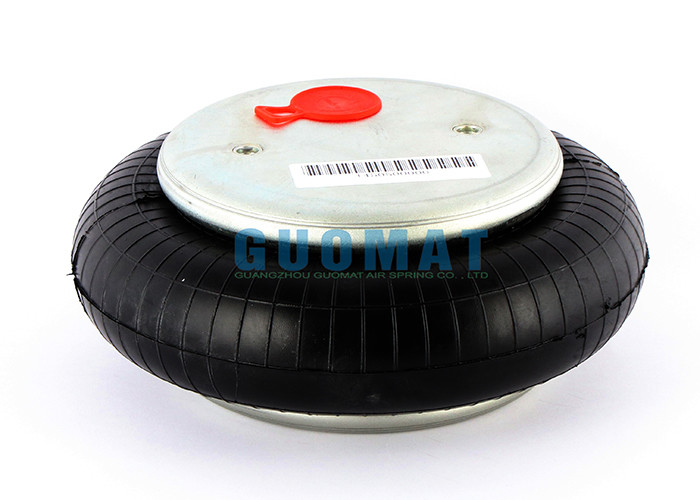

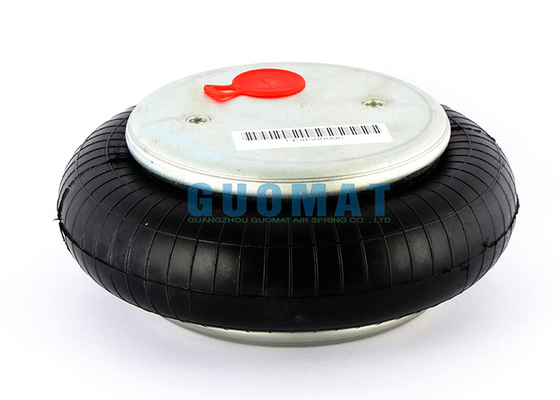

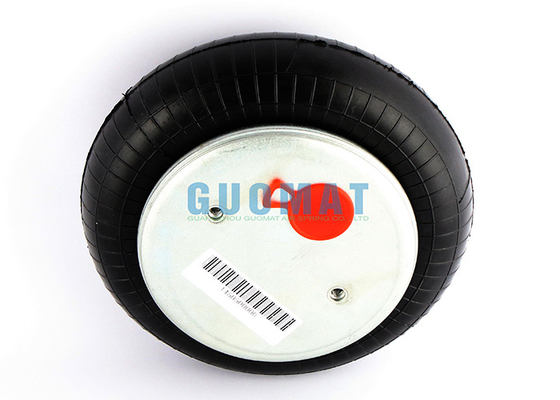

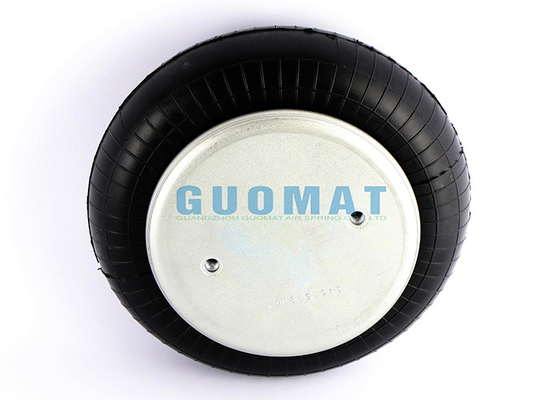

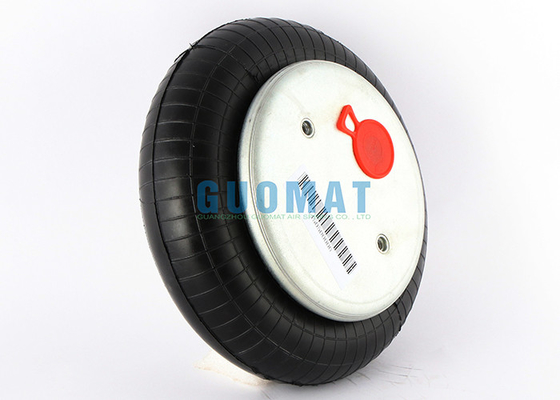

The Real Pictures of GUOMAT 1B200-10 Single Convoluted Air Spring
