| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B4060 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $59.9-69.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Warranty: | 12 Months | Material: | Rubber + Steel |
|---|---|---|---|
| Package: | Standard Packing Or Customized | Contitech: | FD 40-10 |
| Natural Height: | 142MM | Gas Hole: | G1/8 |
| Color: | Black | Spring Type: | Double Convoluted Type Air Spring |
| High Light: | FD 40-10 Contitech Air Springs,145mm Natural Height Contitech Air Springs |
||
GUOMAT Suspension Air Shock FD 40-10 Contitech Air Springs Bellows Actuator 145mm Natural Height
Product Description
Manufacturer | OEM Information |
GUOMAT 2B4060 | Contitech FD40-10 |
2B4060 GUOMAT air spring reference Contitech FD40-10. The cover plate diameter is 90 mm, the air hole specification is G1/8, the size and quantity of the threaded holes are 1XM8X1.25, and the center distance between the air hole and the threaded hole is 20 mm. The specifications and quantity of the threaded holes on the bottom cover are 2XM8X1.25, and the center distance between the two threaded holes is 20 mm. Natural outer diameter of 125mm, natural height of 145mm.
Convoluted Air Spring
Gas-Filled Hole / Air Inlet: By filling air porosity for inflatable air spring
Bolt / Mounting Stud: Bolt is fixed as the installation of air spring in car or equipment
Upper Retainer: Upper Retainer to protect the whole air spring
Rubber Bumper (Optional): Prevent the air spring up and down on the plate and base plate collision
Flexible Bellows: The main part can lock the air and flexible activities up and down
Piston/ The base: Base is also carrying fluctuation pressure, sealed air and make skins can according to the fluctuation of the trajectory
Mounting Stud: fixed as the installation of air spring in car or equipment
Our Services
1. OEM Manufacturing welcome: Product, Package...
2. Sample order is available. If you make a large order after got the sample, we will return you the sample fee as discount.
3. We will reply you for your inquiry in 24 hours.
4. After sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.
Advantages
1. Excellent materials
2. Effective shock
3. In situ installation
4. Comfortable and stable
5. Long life
6. Slove the abnormal noise
Contitech Assembly Air Spring
Contitech FS 120-9 | Contitech FS 200-10 | Contitech FS 70-7 | Contitech FS 330-11 |
Contitech FS 330-14 | Contitech FS 40-6 | Contitech FD 200-19 | Contitech FD 200-22 |
Contitech FD 120-20 | Contitech FD 200-25 | Contitech FD 330-22 | Contitech FD 530-22 |
Contitech FD 330-30 | Contitech FD 331-26 | Contitech FD 530-35 | Contitech FD 120-17 |
Contitech FD 70-13 | Contitech FT 330-29 | Contitech FT 412-323 | Contitech FT 210-32 |

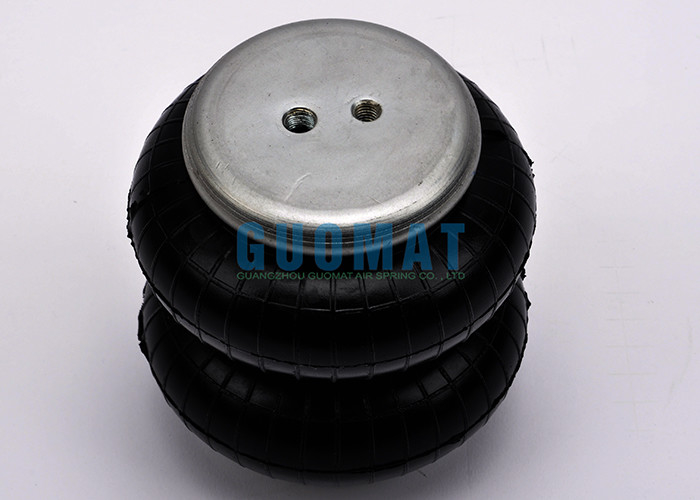

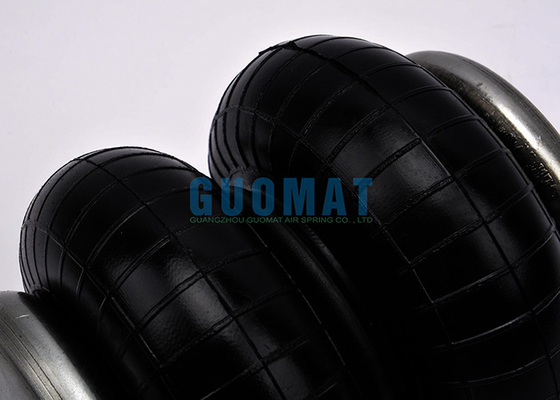

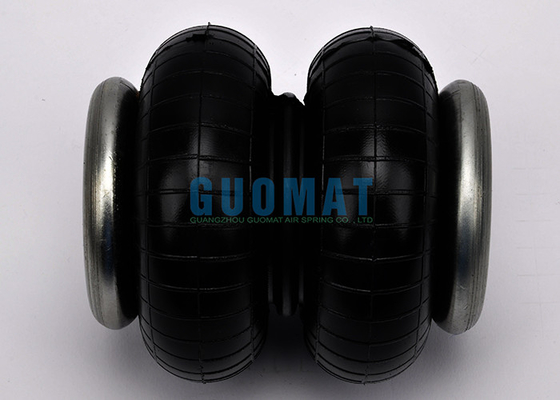

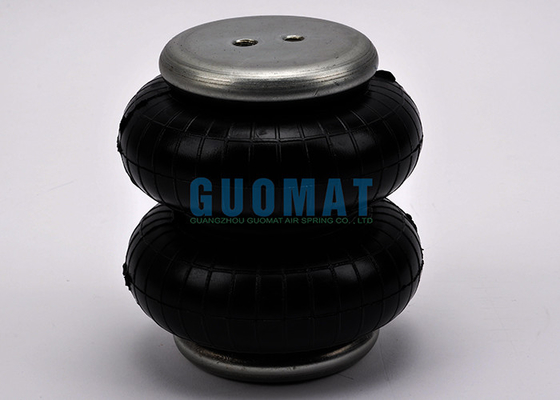

2B4060 GUOMAT Air Spring Real Pictures
