| Place of Origin: | GuangDong, China |
| Brand Name: | ContiTech |
| Certification: | ISO/TS16949:2009 |
| Model Number: | FD 330-22 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Spring Type: | Single Convoluted Air Bag | Item: | Contitech Air Spring |
|---|---|---|---|
| Material: | Rubber And Steel | Function: | Reduce Shock |
| Bellow Type: | Double Convoluted | Air Inlet: | G1/4 |
| Weight: | 4.8KG | Contitech Order Number: | 60031 |
| High Light: | FD 330-22 Convoluted Type Air Spring,Industrial Convoluted Type Air Spring |
||

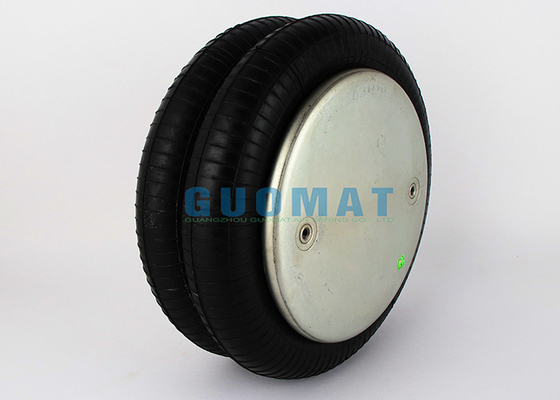

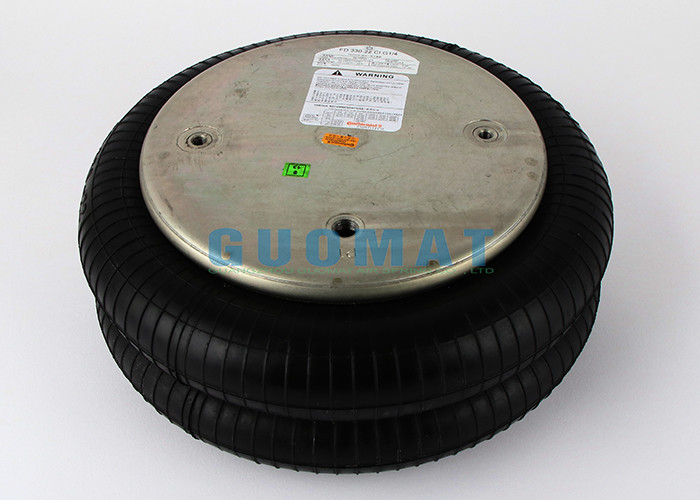

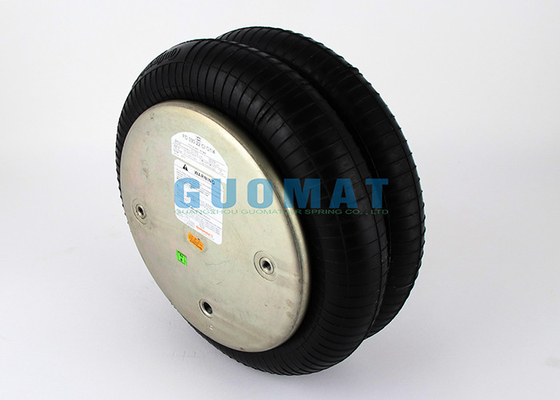

Continental ContiTech FD 330-22 Convoluted Type Air Spring G1/4 Air Fitting Industrial Air Actuator
Product Description
The FD 330-22 G1/4 ContiTech air spring is a special type of air spring manufactured by ContiTech. It is designed for industrial applications and features a dual convolution design. The G1/4 designation refers to the size of the air inlet, which is 1/4 inch in diameter. Air springs can be installed on production equipment for various industrial applications, including washing machines, centrifugal dehydrators, etc.
Continental ContiTech Number FD330-22
Continental ContiTech Number FD 330-22
Continental ContiTech Number FD330-22 CI
Continental ContiTech Number FD 330-22 CI
Continental ContiTech Number FD330-22 CI 1/4NPT
Continental ContiTech Number FD 330-22 CI 1/4NPT
|
Order No. |
Type |
|
74199 |
rubber bellows only |
|
60031 |
with crimped plates,G1/4 air inlet A = 73 mm excentrical |
|
68674 |
with crimped plates,G3/4 air inlet A = 73 mm excentrical |
|
2682060000 |
with crimped plates,G1 air inlet A = 66 mm excentrical |
|
61959 |
with stainless steel crimped plates,G1 air inlet A = 66 mm excentrical |
|
Mark |
distance between air hole and threaded hole |
FD 330-22 G1/4 ContiTech Air Spring Technical Data
Model: FD 330-22
Air inlet: G1/4
Maximum outer diameter: 325mm
Cover diameter: 228mm
Threaded hole specifications: M8, 15mm
Center distance between threaded holes: 157.5mm
Maximum height: 305mm
Minimum height: 75mm
Bellows Type: Rubber
Application of Continental Air Spring
Continental air springs are used in a variety of commercial vehicle applications, including trucks, trailers, buses, tractors, caravans, light trucks, and driver's cabins. They are designed to provide support and suspension for these vehicles, helping to absorb shocks and vibrations and improve ride comfort.
The air springs offered by Continental are available in different variations and are tailored to meet the specific needs of different applications. They are developed as original equipment for vehicle manufacturers, ensuring high quality and meeting the specifications of aftermarket vehicle manufacturers.
In addition to providing support and suspension, Continental air springs also play a role in maintaining the stability and balance of commercial vehicles. They help to distribute the load evenly and adjust the vehicle's height and level, especially in applications where constant load and small differences in height are permissible.
Overall , Continental air springs are an essential component in the suspension systems of commercial vehicles, providing improved ride comfort, stability, and load distribution. They are designed to meet the highest quality standards and are available for a wide range of applications in the commercial vehicle aftermarket.
FD330-22 Air Spring Assembly
FD 330-22 363 / FD330-22 363
FD 330-22 472 / FD330-22 472
FD 330-22 471 / FD330-22 471
FD 330-22 500 / FD330-22 500
FD 330-22 313 / FD330-22 313
FD 330-22 337 / FD330-22 337
FD 330-22 318 / FD330-22 318
FD 330-22 346 / FD330-22 346
FD 330-22 364 / FD330-22 364
FD 330-22 366 / FD330-22 366
FD 330-22 367 / FD330-22 367
FD 330-22 331 / FD330-22 331
FD 330-22 368 / FD330-22 368
FD 330-22 327 / FD330-22 327
FD 330-22 343 / FD330-22 343
FD 330-22 334 / FD330-22 334
