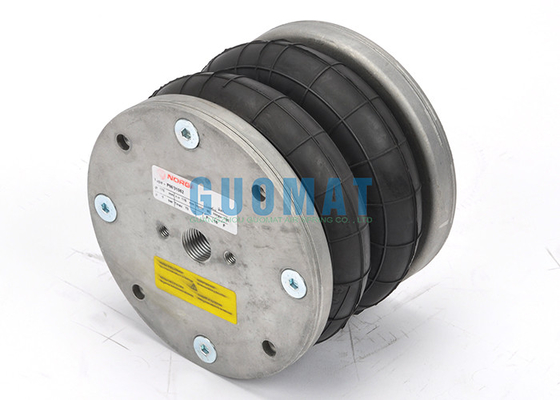

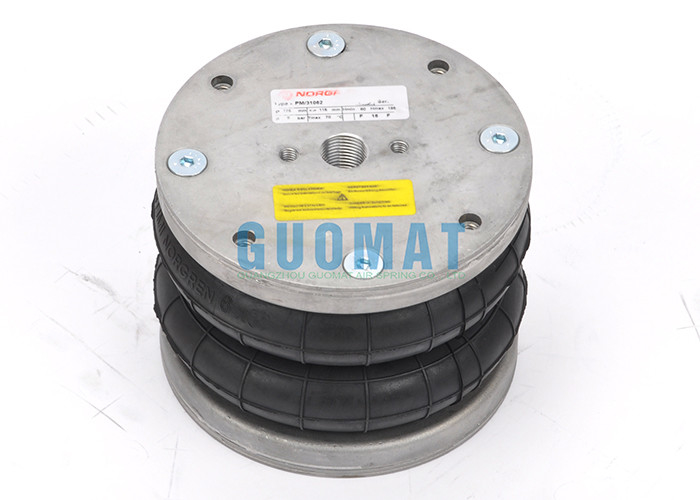

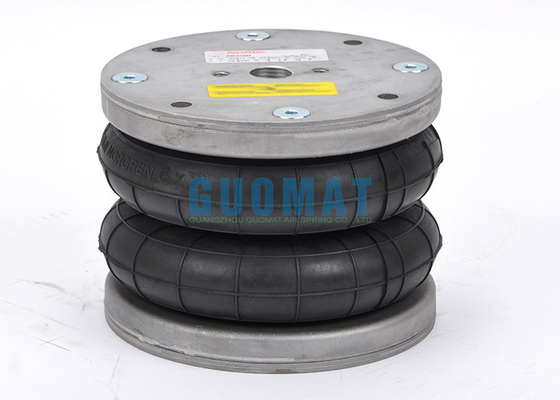

Cylinder PM/31062 Double Convoluted Air Spring Original Air Bellows 152.5mm Cover Plate

NORGREN Cylinder PM/31062 Double Convoluted Original Air Bellows 152.5mm Cover Plate


Product Description

Norgren: PM/31062 / PM 31062 / PM31062

Norgren Ø(inch)xconvolutions: 6''x2 / 6''X2 / 6X2

Continental ContiTech: FD 76-14 1/4 M8

Continental ContiTech: FD 76-14 DI G1/2

Continental ContiTech: FD 76-14 DI G1/2 M8

Continental ContiTech: FD 76-14 DI G1/2 CR

Continental ContiTech: FD 76-14 DI G1/2

Continental ContiTech: FD 76-14 DI CR / FD76-14DICR/FD7614DICR

Continental ContiTech Bellow: FD 76-14 / FD76-14 / FD7614

Firestone Number: W01-R58-4070 / W01R584070 / W01 R58 4070

Firestone Style: 6''x2

Dunlop FR: 6''x2 SP1646(COMPOSITE)

Dunlop FR: 6''x2 SP2917(ALUMINIUM)

Dunlop UK(Pneuride): A313300201 / A 313300201

Parker: 6''x2 9109001A

YS-AIR: YS-160-2VS / YS 160-2VS / YS1602VS

PM/31062 Norgren Air Spring Technical Data

Cover diameter: 152.5 mm
Thread specification: M8
Center distance between threads: 127 mm
Air intake hole specifications: G1/2
Maximum outer diameter: 178mm
Required installation space: 178mm
Maximum height: 195mm
Minimum height: 75mm
Recommended height: 160mm

What are the Uses of Norgren Air Springs?
Norgren air springs are used in various industrial applications. Here are some potential uses of Norgren air springs:

Vibration isolation: Norgren air springs can be used to isolate and dampen vibrations in machinery and equipment, reducing noise and improving overall performance.

• Suspension systems: Norgren air springs are commonly used in suspension systems for vehicles, such as trucks, buses, and trailers. They provide a smooth and adjustable ride by absorbing shocks and vibrations from the road.
• Air ride systems: Norgren air springs are also utilized in air ride systems, which are commonly found in recreational vehicles (RVs) and motorhomes. These systems provide adjustable suspension and leveling capabilities to improve comfort and stability while on the road.
• Industrial machinery: Norgren air springs are used in various industrial machinery applications, such as presses, stamping machines, and conveyor systems. They help absorb shocks and vibrations, reducing wear and tear on the equipment and improving overall performance.
• Machine accessories: Norgren air springs can be used in machine accessories, such as tool changers and robotic arms, to provide precise and controlled movement.
• Cabin suspension: Norgren air springs are commonly used in cabin suspension systems for off-road vehicles and heavy machinery, providing a comfortable and stable ride for operators.
