| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B6943 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $59.9-69.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Air Spring: | Suspension Air Spring | Warranty: | 12 Months |
|---|---|---|---|
| Material: | Rubber + Steel | Application: | For Truck/Trailer/Industrial Machine |
| Condition: | Brand New | Sample: | Available |
| Contitech: | Fd 200-25 426 | Ridewell: | 1003586943C |
| High Light: | W01-358-6943 Suspension Air Spring,FD 200-25 Suspension Air Spring |
||
FD 200-25 426 Contitech Suspension Air Spring W01-358-6943 Firestone Replaces Air Bag For Motor Home/RV
Product Description
Brand: GUOMAT
Model Number: 2B6943
Warranty: 1 Year
Material: Rubber and Steel
Type: Air Spring
Certification: ISO/TS16949:2009
Quality: High-Quality
MOQ: 10PCS
Application: Industrial Machine, Auto Suspension Systems
Reference Numbers
Firestone : W01-358-6943 / W01 358 6943 / W013586943
: WO1-358-6943 / WO1 358 6943 / WO13586943
Contitech : FD 200-25 426 / FD200-25 426 / FD200-25426
: 161332
Goodyear: 2B9-250 / 2B 9-250 / 2B9 250 / 2B 9 250
: 578923206 / 578 92 3 206 / 578-92-3-206
Triangle : 6332 / 4426
Watson&Chalin : AS-0041
Automann : ABSP2B12RA-6943
Neway/SAF : 90557237 / 905-57-237
V-Steer II (Lift Bag)
Van Raden
Ridewell : 1003586943C
Tuthill : 6352
Load Guard : SC2122
Suspensions INC. : 200835
TRP : AS69430

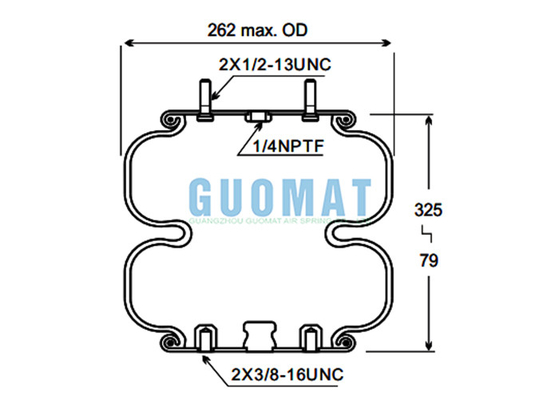

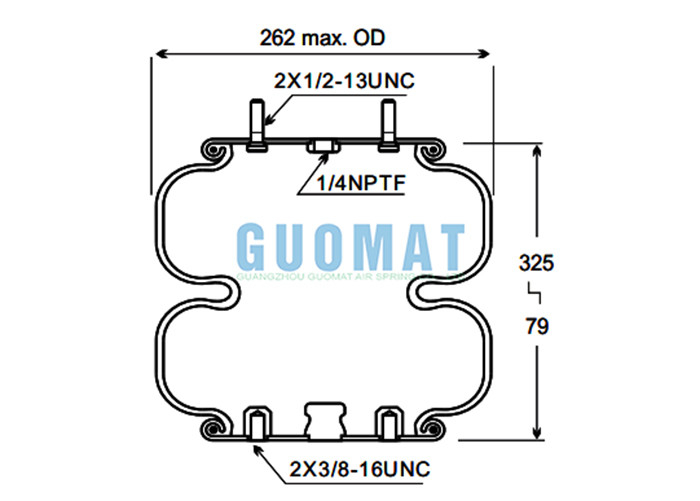

Technical Data : GUOMAT 2B6943 Air Spring

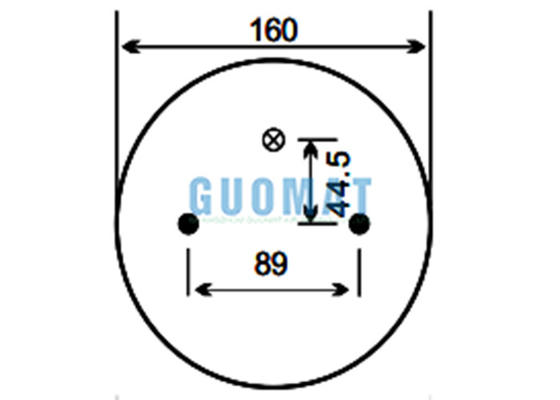

Cover diameter: 160mm
Screw specifications: 1/2-13UNC
Number of upper cover screws: 2 pieces
Air hole specification: 1/4NPTF
Center distance between screws: 89mm
Distance between screw and air hole: 44.5 mm

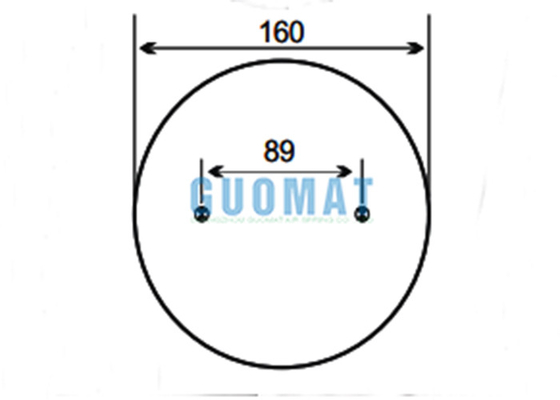

Bottom cover screw specifications: 3/8-16UNC
Center distance between bottom cover screws: 89 mm
The rubber bellows max outer diameter: 262mm
Max. height: 325mm
Min.height: 79mm
Features and Benefits
|
1 |
Manufactured to strict original factory standards and works like original components. |
|
2 |
Designed using the latest technology to ensure longer product life |
|
3 |
Simple installation method, no need to worry about installation problems |
|
4 |
Made from high-quality components for durability, reliability and performance |
|
5 |
Designed for trucks, trailers and buses, and can also be used to dampen industrial equipment |
|
6 |
1 year warranty |
Contitech Model Serie C Double Convoluted Air Spring
|
Item Code |
Max.diameter(mm) |
Mx.stroke(mm) |
Min.height(kN) |
Max.stroke(kN) |
Standard air inlet |
|
|
|||||
|
FD 40-10 |
145 |
100 |
7.4 |
2.5 |
G1/8 |
|
FD 70-13 |
165 |
128 |
11.6 |
2.6 |
G1/4 |
|
FD 110-15 |
203 |
156 |
16.5 |
2.9 |
G3/4 |
|
FD 120-17 |
215 |
155 |
18.0 |
6.3 |
G3/4 |
|
FD 120-20 |
218 |
193 |
19.6 |
6.6 |
G3/4 |
|
FD 120-19 |
250 |
200 |
26.1 |
5.7 |
G3/4 |
|
FD 200-22 |
255 |
218 |
26.2 |
7.0 |
G3/4 |
|
FD 200-25 |
260 |
248 |
25.4 |
8.2 |
G3/4 |
|
FD 330-22 |
325 |
230 |
46.4 |
14.3 |
G3/4 |
|
FD 330-30 |
340 |
283 |
49.0 |
13.7 |
G3/4 |
|
FD 530-22 |
385 |
233 |
65.5 |
21.8 |
G3/4 |
|
FD 530-30 |
400 |
273 |
71.2 |
21.6 |
G3/4 |
|
FD 530-35 |
405 |
313 |
74.8 |
21.0 |
G3/4 |
|
FD 690-22 |
444 |
225 |
101.0 |
37.0 |
G3/4 |
|
FD 1330-25 |
518 |
243 |
145.4 |
46.5 |
G3/4 |
