| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 3B2300 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $69.9-79.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Item Name: | Suspension Air Spring | Warranty: | 12 Months |
|---|---|---|---|
| Material: | Rubber + Steel | Type: | Triple Convoluted Air Spring |
| Condition: | A Brand-New | Application: | Universal |
| Color: | Black | Other Name: | Rubber Air Ride Suspension Bag |
| High Light: | 3B2300 Triple Air Bag,Triple Air Bag For Axle Lifting |
||
GUOAT 3B2300 Triple Air Bag 187 Natural Height Air Suspension Spring For Axle Lifting
Product Description
♦Cover Plate
Top Cover Plate Diameter: Ø113mm
Bottom Cover Plate Diameter: Ø113mm
♦Threaded Hole
Threaded Hole Specifications for Top Cover: 2X3/8-16UNC
Threaded Hole Specifications for Bottom Cover: 3/8-16UNC
The Center Distance Between the Threaded Holes of the Top Cover: 44.5mm
♦Gas Hole
Gas Hole Specifications: 1/2-14NPT
The Distance Between the Top Cover Threaded Hole and the Air Hole: 22mm
♦Rubber Bellow
The Rubber Bellow Diameter: Ø125mm
Natural Height: 187mm
Deflection(Height min): 95mm
Deflection(Height max): 240mm
Working stroke:135mm
Convolutions: 3
3B2300 Air Suspension Spring Specifications
Item | Value |
Brand | GUOMAT |
Model No. | 3B2300 |
Warranty | 1 Year |
Material | Rubber + Steel |
Certification | ISO/TS16949:2009 |
Color | Black |
OEM | 3E2300 |
Place of Origin | China |
Size | Standard |
Type | Air Spring |
| Application | For Air Suspension |
| Payment | L/C,T/T,Western Union |
| Deliver Time | 3-8 Working Days |
Instructions for Using Rubber Air Spring
Warning: Do not inflate the air spring when it is not installed. Unless the product is firmly installed in a suitable structure, the maximum pressure is 7 pressures, otherwise there is a risk of product damage or personal injury.
Store: Place the air spring indoors at room temperature in a cool, dry place
Features
The air spring is made of high-quality spring materials. Its good dynamic performance ensures that the air spring is maintenance-free and has a long service life.
chemical resistance
Wide operating temperature range, from -53 degrees Celsius to 70 degrees Celsius
Oil-resistant compressed air
Resistant to dust
Resistant to alkaline and acidic cleaners
Not sensitive to atmospheric effects
Ozone resistant
Air springs are not resistant to the following substances
Solvent
Hydraulic oil
grease
How to Order ?
Step 1 | please tell us what model and quantity you need |
Step 2 | then we will make a PI for you to confirm the order details |
Step 3 | when we confirmed everything ,you can arrange the payment |
Step 4 | finally we deliver the goods within the stipulated time |

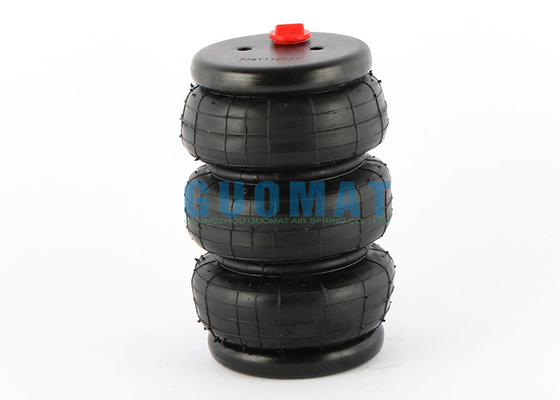

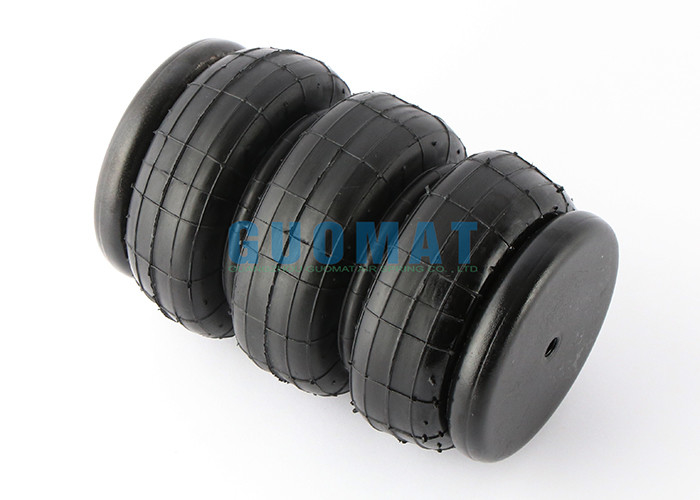

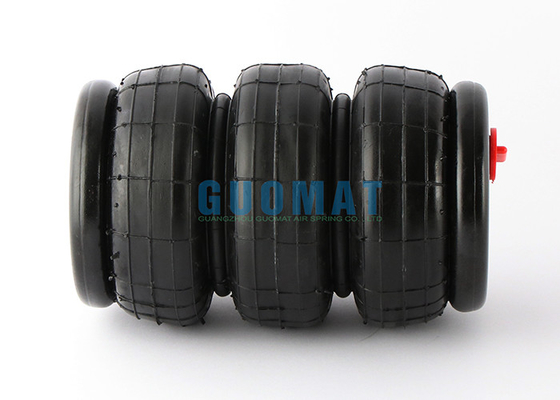

3B2300 Triple Air Bag Real Pictures
