| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B3400 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $59.9-69.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Product Name: | Air Spring | Material: | Rubber Bellow And Aluminum Cover |
|---|---|---|---|
| Warranty: | 1 Year Warranty | Brand: | GUOMAT/Customized |
| Sample: | Available | Operation: | Gas-Filled |
| MOQ: | 10 Pieces | Package: | Standard Packing Or Customized |
| High Light: | Firestone Industrial Bellow Air Spring,W01-358-3400 Air Spring,2B7-540 Air Spring |
||

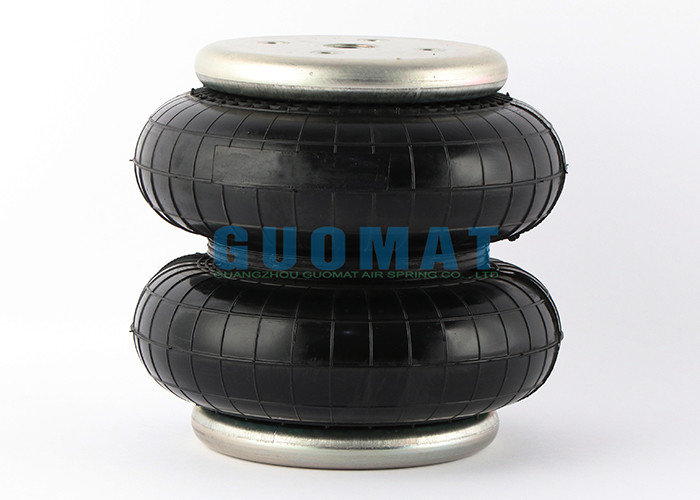

Firestone Industrial Bellow Air Spring W01-358-3400 2B7-540 Goodyear Air Lift Rubber Bag
Product Description
The W01-358-3400 is a Firestone double convolution air spring. It is designed to provide years and thousands of miles of trouble-free service. This air spring is commonly used in industrial and commercial vehicles such as trucks and transporters.
GUOMAT: 2B3400
FIRESTONE BELLOW: 224
FIRESTONE: W01-358-3400
FIRESTONE: W01 358 3400
FIRESTONE: W013583400
FIRESTONE: WO1-358-3400
FIRESTONE: WO1 358 3400
FIRESTONE: WO13583400
GOODYEAR: 2B7-540
GOODYEAR: 2B 7-540
GOODYEAR: 2B7 540
GOODYEAR: 2B7540
GOODYEAR: 2B 7540
Replace American Carrier : 8003-009
Technical Data: GUOMAT 2B3400
| Part Number | 2B3400 |
| OEM Number | Firestone W01-358-3400 |
| Working temperature | -40°C bis +70°C |
| Failure testing | ≥3 millions |

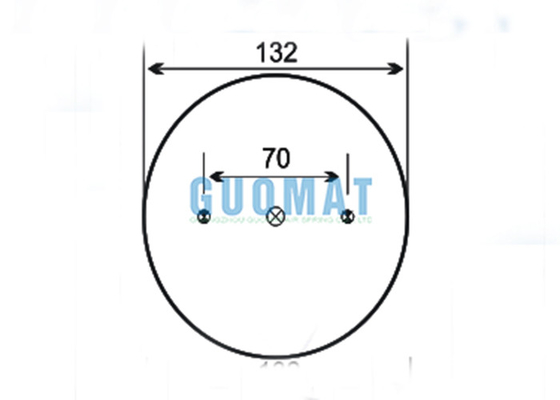

| Top Cover Plate Diameter | 132mm |
| Bottom Cover Plate Diameter | 132mm |
| Gas Hole / Air inlet | 1/4NPTF |
| Rubber Bellows MAX Diameter | 203mm |
| The Working Stroke | MAX 230 mm to MIN 75 mm |
| Top Cover Plate Screw (Nut) Tooth | 2X3/8-16UNC |
| Bottom Cover Plate Screw (Nut) Tooth | 2X3/8-16UNC |
| Screw Center Distance of Top Cover Plate | 70mm |
| Screw Center Distance of Bottom Cover Plate | 70mm |
Technical Data: Firestone W01-358-3400
Cover plate diameter: 5.31in
Threaded hole: Threaded Hole 3/8-16 Blind Nut on Bead Plates 1/2-13 Pistons
Center distance between threaded holes: 2.75in
Rubber bellow outer diameter: 7.25in
Min.height: 7.25in
Firestone Number with the Same Bellow Number
|
Firestone NO. |
Bellow NO. |
Cover plate diameter |
Min.height |
Weight |
Replaces |
|
W01-358-3402 |
224 |
5.31in |
2.75in |
5.0lbs |
American Carrier8003-026(supersedes |
|
W01-358-3406 |
224 |
5.31in |
2.75in |
5.0lbs |
Sauer P20-706 |
The Cpmponents of Air Spring
Blind Nut: A permanent part of the bead plate assembly providing and alternate mounting system to the stud.
Air Fitting Hole: A tapped hole usually 1/4''N.O.T.providing air entrance for the part.
Bead Plate: Permanedtly crimped onto the bellows at the factory allowing complete part leak testing prior to shipment.
Bellows: The heart of an Airide spring. Includes at least four plies, or layers,of material-an inner layer, two plies of cord-reinforced fabric, and an outer layer.
Girdle Hoop: A ring between the convolutions of the convoluted-type air spring.
