| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 3B7994 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $69.9-79.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Warranty: | 1 Year Warranty | Quality: | 100 % Tested |
|---|---|---|---|
| Material: | Rubber And Steel | Type: | Triple Convoluted Air Spring |
| Item Name: | Air Bag / Suspension Spring | Operation: | Gas-filled |
| Dimension: | Standard Size/OEM | Package Type: | Normal Exported Package |
| High Light: | Firestone Triple Convoluted Air Spring Assembly,W01-358-7994 Air Spring Assembly |
||
Natural Rubber FT330-29 546 Contitech W01-358-7994 Firestone Triple Convoluted Air Spring Assembly
Product Description
| Product Name | Industrial Air Spring | Material | Natural Rubber |
| Firestone | W01-358-7994 | Contitech | FT 330-29 546 |
| Contitech | 64572 | Goodyear | 3B12-328 |
| Triangle | 4546 | Triangle | 6364 |
| Watson&chalin | AS-0019-F |
Euolid/meritor After market
|
E-FS7994 |

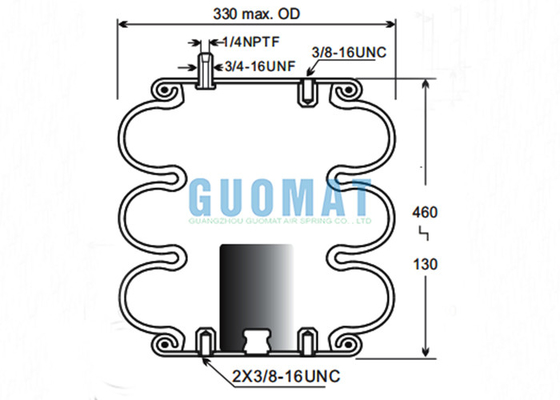

GUOMAT 3B7994 Technical Data
Cover diameter: 231mm
Combo stud specifications: 1/4NPTF, 3/4-16UNF
Threaded hole specification of top cover: 3/8-16UNC
The distance between the threads of the top cover and the Combo stud: 140mm
Threaded hole specifications of the bottom cover: 2X3/8-16UNC
The center distance between the threaded holes of the bottom cover: 157.5mm
Maximum height: 460mm
Minimum height: 130mm
Compression height: 330mm
Suspension Air Spring
A suspension air spring is a component of an air suspension system used in various vehicles, including machines, automobiles, and buses . It is designed to provide load-carrying support and shock absorption, offering a smoother and more comfortable ride
An air spring consists of a rubber and fabric container that resembles an automobile tire or multiple tires stacked on top of one another. This container holds a column of air, which can be compressed or expanded to adjust the vehicle's height and maintain a fixed height regardless of the load .
The air spring system typically includes an air compressor, an air-supply tank, leveling valves, check valves, bellows, and connecting piping . The check valves allow additional air to enter the bellows from the air-supply tank when the load increases, while the leveling valves vent excess air from the bellows when the vehicle rises due to unloading .
Air suspension systems with air springs offer benefits such as improved ride quality, load-leveling capabilities, and the ability to adjust the vehicle's height for different driving conditions . They are commonly used in luxury cars, heavy-duty trucks, and recreational vehicles.
Overall, suspension air springs play a crucial role in providing a comfortable and stable ride by absorbing shocks and supporting the vehicle's weight.
Product Specs for Firestone W01-358-7994
Compressed Height: 5.10 inches
Top Plate Number:3210
Top Plate Width:9.00 inches
Piston Number:3183
Piston Width:9.00 inches
Firestone Bellows Number:38
Watson & Chalin #:AS-0019-1F
UPC: 767555061299
MPN: W013587994
Firestone: W01 358 7994
Firestone: W01-358-7994
GUOMAT 3B7994 replacement air spring W01-358-7994 improves your truck's air suspension and for less downtime and greater productivity. Replaces Watson & Chalin AS-0019-1F. Firestone bellows number 38.

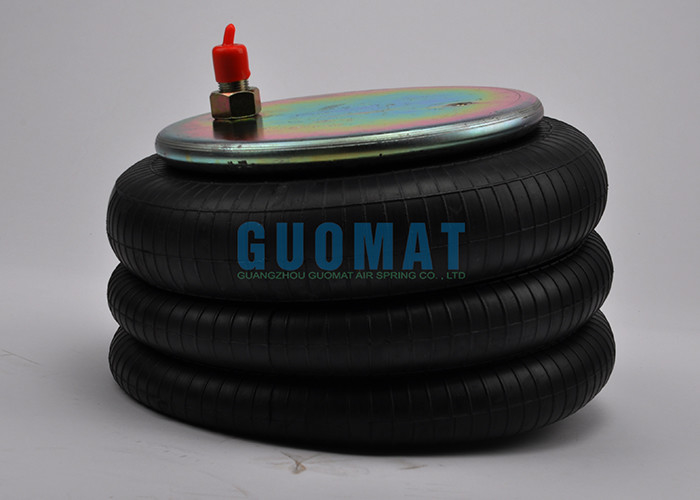

GUOMAT NO.3B7994 Triple Convoluted Suspension Air Spring
