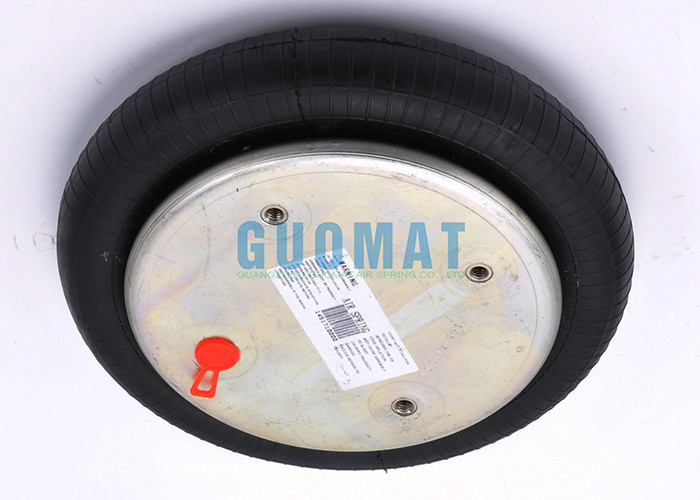

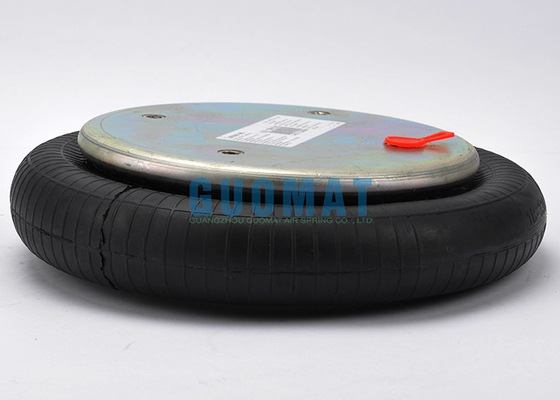

1/4NPTF Air Inlet Single Industrial Air Spring 1B330 Air Bellows For Scissors Lift And Tilt Table

1/4NPTF Air Inlet Single Industrial Air Spring 1B330 Air Bellows For Scissors Lift And Tilt Table

Product Description

Part 1: Top Cover
Top cover diameter: 231mm
Threaded hole specifications: 3X3/8-16UNC
Air hole specification: 1/4NPTF
Center distance between threaded holes: 157.5mm
Center distance between the threaded hole and the third threaded hole: 78.8mm

Part 2: Bottom Cover
Bottom cover diameter: 231mm
Threaded hole specifications: 4X3/8-16UNC
Center distance between threaded holes: 157.5mm

Part 3: Rubber Bellows
The Rubber Bellow Maximum outer diameter: Max.325mm
Maximum height: 160mm
Minimum height: 55mm
Compression height: 105mm

Package Data

Choosing the Right Industrial Air Spring
When choosing the right industrial air spring, there are several factors to consider. These factors include the application, load weight, and spring type. Here are some guidelines to help you make an informed decision:

Application: Consider the specific application for which you need the air spring. Industrial air springs are used in various industries, including automotive, commercial vehicles, farm equipment, and industrial machinery.

Load Weight: Determine the weight that the air spring needs to support. Different air springs have different load capacities, so it's important to choose one that can handle the weight of your application .

Spring Type: There are different types of air springs available, such as double convoluted air springs and rolling lobe air springs . Each type has its own characteristics and advantages, so choose the one that best suits your needs.

Consult Experts: If you're unsure about which air spring to choose, it's always a good idea to consult with experts in the field. They can provide guidance based on your specific requirements and help you select the right air spring for your application.

Single Convoluted Firestone Air Spring
