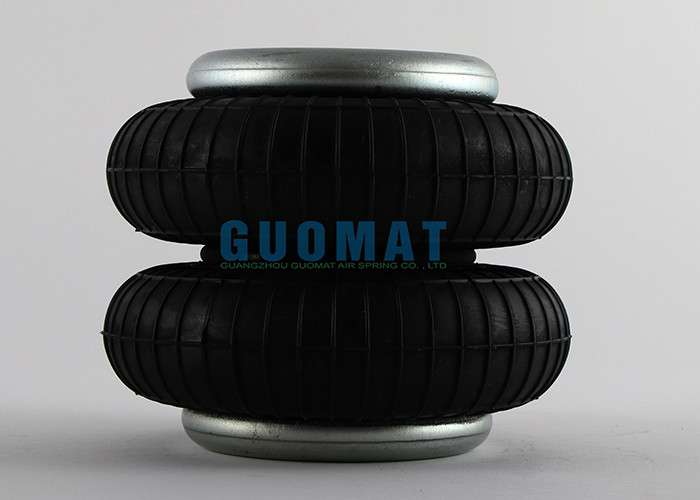

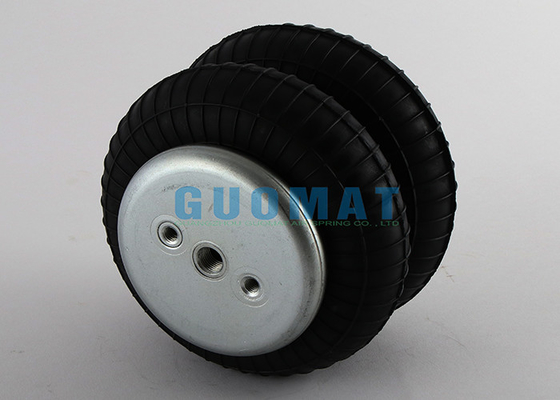

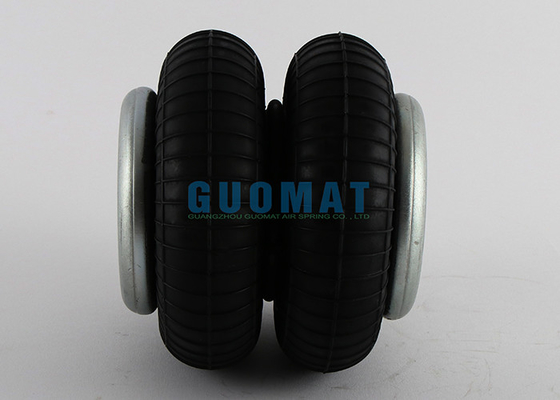

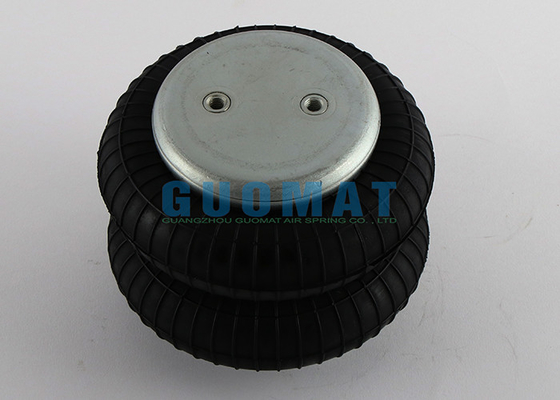

GUOMAT 2B7070 Double Convoluted Air Actuator Replace FD 70-13 Continental Contitech Industrial Air Spring
Product Description
The FD70-13 ContiTech air spring is an industrial air spring used in a variety of applications. It is a double convolution air spring manufactured by ContiTech, a company that specializes in air spring systems. GUOMAT2B7070 air spring refers to the specifications of FD70-13 ContiTech air spring. It is made of high-quality materials and has strong shock absorption capacity and durability.
Continental Contitech Part Number: FD70-13
Continental Contitech Part Number: FD 70-13
Continental Contitech Part Number: FD70-13 CI
Continental Contitech Part Number: FD 70-13 CI
Continental Contitech Part Number: FD70-13 1/4 M8
Continental Contitech Part Number: FD 70-13 1/4 M8
Continental Contitech Part Number: FD70-13 CI 1/4 M8
Continental Contitech Part Number: FD 70-13 CI 1/4 M8
Technical Data: GUOMAT 2B7070
Top plate diameter: 105mm
Single air port size: G1/4
Install hole size: M8X1.25
Center distance between Install holes: 44.5mm
Natural height: 162mm
The rubber bellow natural outer diameter: 146mm
Technical Data: Contitech FD70-13
Top cover plate diameter: 107mm
Air hole: G1/4
Threaded hole: M8X1.25
Maximum torque for G1/4: 25 Nm
Maximum torque for M8: 25 Nm
Center distance between threaded hole: 44.5mm
Natural height: 160mm
The rubber bellow max. outer diameter: 165mm
Installation diameter: 180mm
Our Service
1. OEM manufacturing is welcome: products, packaging...
2. Sample orders are available. If you place a large order after receiving the sample, we will refund you the sample fee as a discount.
3. We will respond to your inquiry within 24 hours.
4. After sending out, we will track the product for you every two days until you receive the product. When you receive the goods, test it and give me feedback. If you have any questions about the problem, please contact us and we will provide you with a solution.
Contitech Double Convoluted Air Spring
| Contitech No. | Application | Contitech No. | Application |
| FD 120-17 3/4 M8 | Gigant 196027/700196027 | FD 200-19 1/4 M10 | Meritor 21221395 |
| FD 138-18 1/2 M10 | SAMRO H2500188 | FD 200-19 1/4 M8 | - |
| FD 200-19 3/4 M8 | Gigant 00190130 | FD 200-22 1/4 M10 | Daimler TAS A 946 328 16 01 |
| FD 200-19P02 | Merdices A9423205821 | FD 200-25 1/4 M10 | Daimler TAS A 946 328 16 01 |
| FD 200-19 P04 | SAF - Holland 4.229.1004.00 | FD 200-25 1/4 M8 | Jost JAS 30 107 024 01 |
| FD 200-25 P02 | SAF - Holland 4.229.1005.01 | FD 330-22 M12x1.5M8 | BOW02.200.21.90.0 |
| FD 210-22 1/2 M10 | Granning 15807 | FD 330-30 1/4 M8 | Hendrickson NA 1816 |
| FD 330-22 1/1 M8 | FD 412-18 1/2 M10 | Granning 15813 |
