| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | WBZ 100-E1 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $59.9-69.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Product Name: | Air Lift Spring | Material: | Rubber Bellow And Aluminum Cover |
|---|---|---|---|
| Warranty: | 1 Year Warranty | Package Type: | Common Export Package |
| Weforma: | WBZ 100-E1 | Sample: | Available |
| Bellow Type: | Double | MOQ: | 1 Piece |
| High Light: | WBZ 100-E1 Industrial Air Spring,Double Convolution Industrial Air Spring |
||

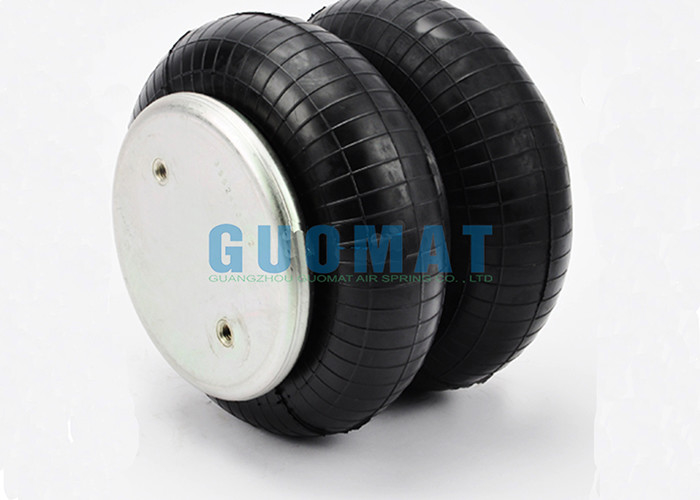

Double Convolution Air Actuator Weforma WBZ 100-E1 Industrial Air Spring G1/8 Air Connection
Product Description
Weforma Air Springs are a type of air spring manufactured by Weforma Deceleration Technology GmbH. These air springs are designed for various applications and offer features such as vibration isolation, absorption, and deceleration.
Weforma Air Spring WBZ100
Weforma Air Spring WBZ 100
Weforma Air Spring WBZ100-E1
Weforma Air Spring WBZ 100-E1
Weforma Air Spring WBZ100E1
Weforma Air Spring WBZ 100-E1 G1/8
Technical Data
Min.pressure: 0 bar
Return force to min.height: ≤200N
Overall weight with clamped plates: 1.1kg
Cover plate diameter: 90mm
Max. outer diameter: 145mm
Installation space needed: 160mm
Max.height: 170mm
Min.height: 70mm
Threaded hole: M8,15mm deep
Air hole: G1/8
Center distance between threaded hole and air hole: 20mm
Pneumatic application - static characteristic valuesForce
F [kN]
| Pressure P | (bar) | 3 | 4 | 5 | 6 | 7 | 8 | Vol.(l) |
| Height H (mm) | 160 | 1.1 | 1.6 | 2.0 | 2.4 | 2.8 | 3.2 | 1.2 |
| 140 | 1.6 | 2.2 | 2.8 | 3.3 | 3.9 | 4.5 | 1.1 | |
| 120 | 2.0 | 2.7 | 3.4 | 4.1 | 4.8 | 5.5 | 0.9 | |
| 100 | 2.3 | 3.1 | 4.0 | 4.8 | 5.6 | 6.4 | 0.7 | |
| 80 | 2.6 | 3.5 | 4.5 | 5.4 | 6.3 | 7.1 | 0.6 |
Weforma Air Spring
Temperature and Pressure Range: Weforma Air Springs are usable within a temperature range of -40°C to +130°C and can handle pressures of up to 16 bar.
Applications: Weforma Air Springs with side filling valves are commonly used as single elements for vibration isolation and absorption in equipment such as air compressors, generators, and presses.
Compatibility: Weforma Air Springs are compatible with a range of industrial applications, including bodymakers, suspension systems, and industrial machinery.
Oil Compatibility: In general, Weforma air springs should not be exposed to mineral oils, synthetic ester oils, and solvents. However, there may be exceptions to this rule.
Product Variants: Weforma offers different variants of air springs, including those with threaded studs (WBE-G) and convoluted designs (WBE, WBZ-G)

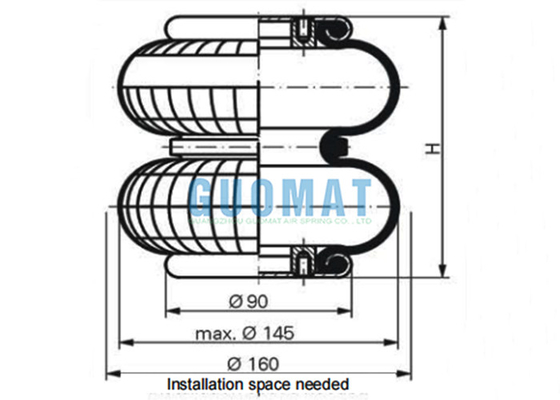

The Drawing
