| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B200-E1 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $59.9-69.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber Bellow And Aluminum Cover | Warranty: | 1 Year Warranty |
|---|---|---|---|
| Package Type: | Common Export Package | Convolutions: | 2 |
| Air Connection: | G1/4 | Type: | Double Convlolution Air Spring |
| Application: | Web Tensioning Device | MOQ: | 3 PCS |
| High Light: | WBZ 200-E1/WBZ Industrial Air Spring,Double Convoluted Industrial Air Spring |
||

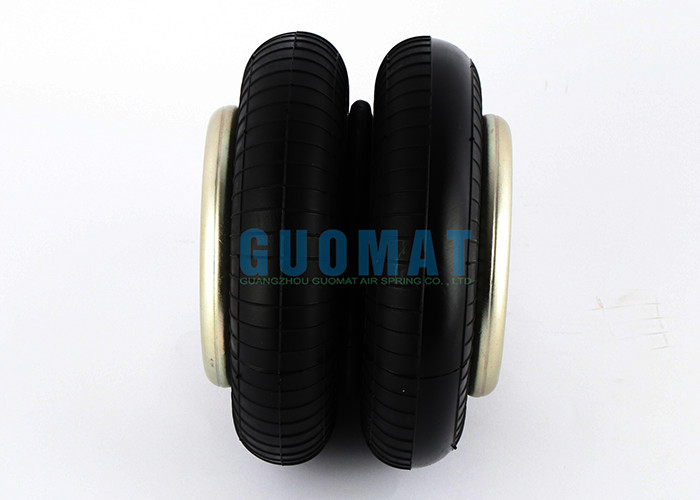

WBZ 200-E1/WBZ 200 Double Convoluted Air Lift Bag G1/4 Industrial Air Spring Shock
Product Description
The WBZ 200 Weforma air spring is a type of air spring manufactured by Weforma Dämpfungstechnik GmbH. It is part of the WBZ series of air springs produced by the company Air springs, also known as airbags or pneumatic springs, are flexible containers filled with compressed air that provide cushioning and support in various applications, such as vehicle suspension systems and industrial machinery.
Brand: GUOMAT
Model No.: 2B200-E1
OEM: Weforma WBZ 200
OEM: Weforma WBZ200
OEM: Weforma WBZ 200-E1
OEM: Weforma WBZ200-E1
Technical Parameters

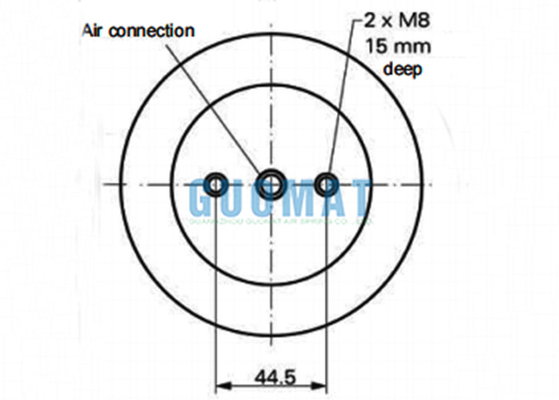

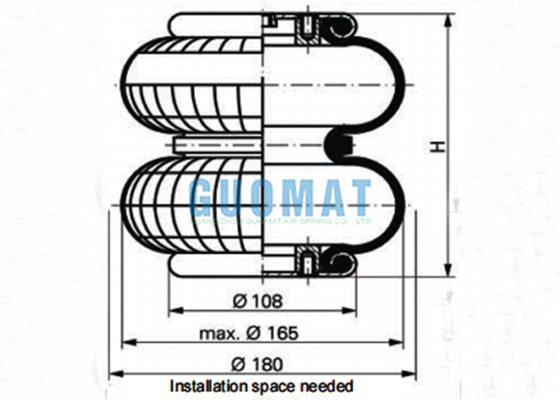

Cover palte diameter: Ø108mm
Threaded hole: 2XM8 15mm deep
Air hole: G1/4
Center distance between threaded holes: Ø44.5mm
The rubber bellow max.outer diameter: Ø165mm
Installation space needed: Ø180mm
Max.height: 200mm
Min.height: 72mm
Min.pressure: 0 bar
Return force to min.height: ≤200N
Overall weight with clamped plates: 1.5kg
| Pressure P | bar | 3 | 4 | 5 | 6 | 7 | 8 | Vol.(I) |
| Height H (mm) | 180 | 1.6 | 2.3 | 2.9 | 3.5 | 4.1 | 4.7 | 1.8 |
| 160 | 2.4 | 3.2 | 3.9 | 4.7 | 5.6 | 6.4 | 1.6 | |
| 140 | 2.9 | 3.9 | 4.8 | 5.8 | 6.8 | 7.8 | 1.5 | |
| 120 | 3.4 | 4.5 | 5.7 | 6.8 | 7.9 | 9.2 | 1.3 | |
| 100 | 3.9 | 5.2 | 6.5 | 7.8 | 9.1 | 10.4 | 1.1 | |
| 80 | 4.3 | 5.7 | 7.1 | 8.5 | 10.0 | 11.4 | 0.7 |
Air Springs for Shock Absorption in Industrial Equipment
Air springs are commonly used in industrial equipment for shock absorption. They play a crucial role in improving the working efficiency and safety of the equipment. By effectively absorbing shocks and vibrations, air springs help reduce noise levels, insulate noises, and enhance the overall performance of the machinery .
Air springs are designed to provide a cushioning effect by utilizing compressed air. When a shock or vibration occurs, the air spring compresses, absorbing the impact and minimizing the transfer of energy to the equipment. This helps protect the equipment from damage and ensures smoother operation .
The use of air springs in industrial equipment is not limited to a specific industry. They are employed in various sectors, including machine and plant engineering, automotive, pulp and paper, and more . Air springs are particularly beneficial in heavy-duty applications, where the equipment is subjected to significant shocks and vibrations.
In addition to shock absorption, air springs also offer other advantages. They can be adjusted to provide different levels of stiffness, allowing for customization based on the specific requirements of the equipment. Air springs are also known for their durability and reliability, making them suitable for demanding industrial environments.
We also Supply other Weforma Air Springs
|
Weforma |
GUOMAT |
Firestone |
Contitech |
Dunlop |
|
WBE 300-E1 |
1B1209 |
W01-M58-6165 |
FS 120-9 |
8''x1 |
|
WBE 300-E2 |
1B1209-G1/4 |
W01-M58-6166 |
FS 120-9 |
8''x1 |
|
WBE 100-E1 |
1B4060 |
- |
FS 40-6 |
- |
|
WBE 200-E1 |
1B7070 |
- |
FS 70-7 |
- |
|
WBE 400-E1 |
2B6910 |
- |
FD 200-19 |
- |
|
WBE G450 |
2B21032 |
- |
FT 210-32 |
10X3 |
