| Place of Origin: | Guangzhou,China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1B7598 |
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | US$49.9-59.9/PC |
| Packaging Details: | Strong Carton Box or as Customers Requirement |
| Delivery Time: | 3-7 Working Days |
| Payment Terms: | L/C, T/T, Western Union Or Others |
| Supply Ability: | 1000PCS/Week |
| Type: | Suspension Spring | Firestone: | W01-358-7598 |
|---|---|---|---|
| N.W.: | 2.5 Kg | Pressure Ability: | 0.2-0.8 M PA |
| Air Inlet: | G1/4 | Transport Package: | Cartons |
| Specification: | 24*24*22 Cm | Customization: | Available | Customized Request |
| High Light: | W01-358-7598 Firestone Air Spring,Stroke 120mm Firestone Air Spring |
||

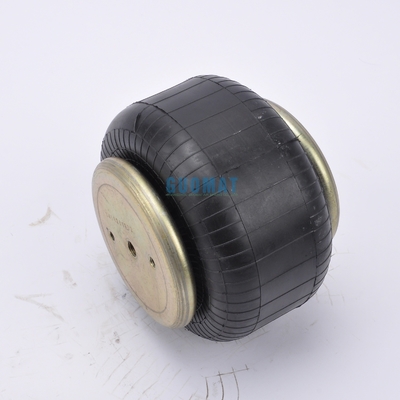

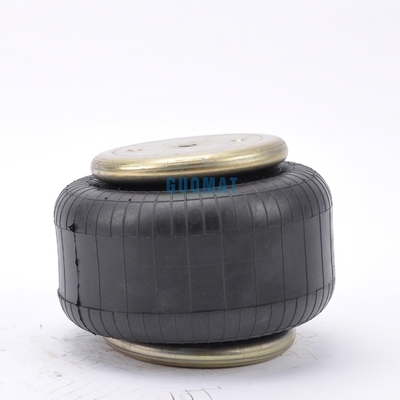

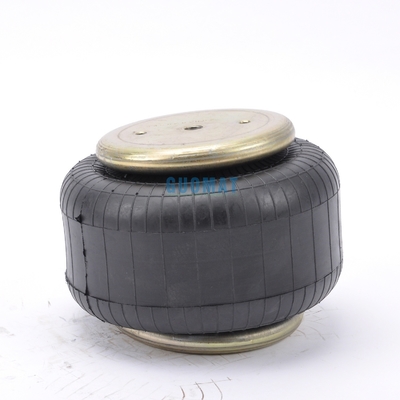

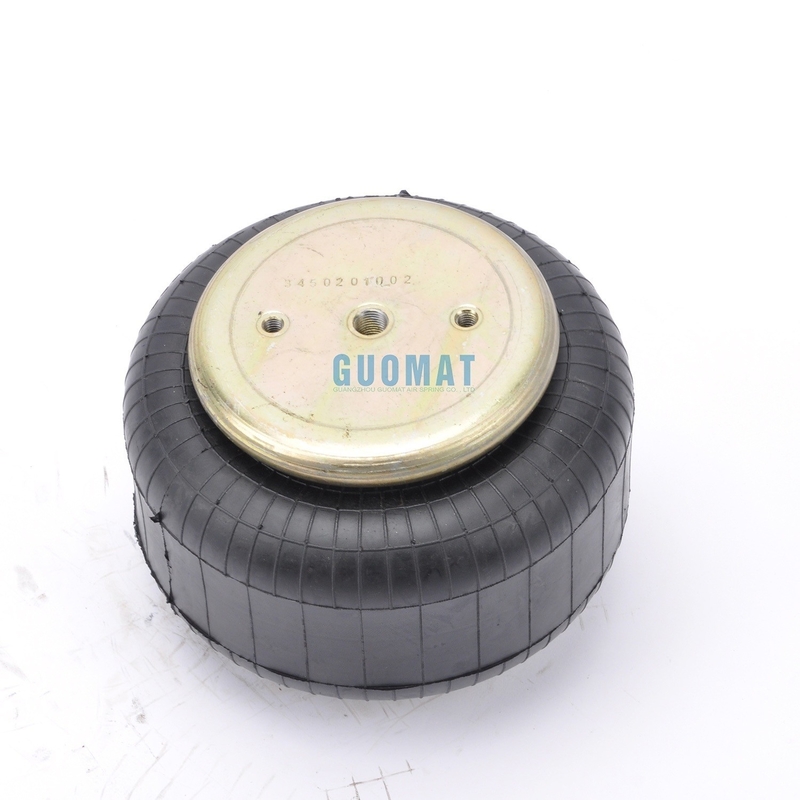

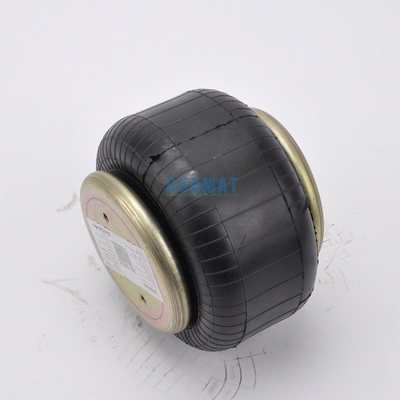

Goodyear W01-358-7598 Firestone Air Spring Industrial Maximum Stroke 120mm Stud M8
Reference OEM:
Firestone air spring:W013587598,
Firestone air spring:W01-358-7598,
Firestone air spring:W01 358 7598
Goodyear Part # 1B8-157
Goodyear Part #1B8-159
Goodyear Part #1B8-560
Goodyear Part #1B8-563
Goodyear Part #1B8-580
GUOMAT 1B7598 Technical parameters
Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Top Cover Plate : 70 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 70 mm
Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4-18NPTF
Screw Center Distance Between Gas Hole and Nut : 35 mm
Cover Plate
Top Cover Plate Diameter: 135 mm
Bottom Cover Plate Diameter: 135 mm
Rubber Bellows
Rubber Bellows MAX Diameter: 240 mm
Rubber Bellows Natural Diameter : 225 mm
The Working Stroke : MIN 60 mm to MAX 180 mm
Maximum Height : 180 mm
Minimum Height :50 mm
Stroke Height : 120mm
Bumper block / Buffer block
Without Bumper Block
Girdle Hoop / Girdle Ring
With Girdle Hoop :no One Pieces of Girdle Hoop
Rubber Air Spring
Rubber air spring, also known as air bag, bellows, etc., is a precision-designed rubber fiber bellows. The product itself does not provide force or support load, but uses an air compressor to fill the interior with compressed air to achieve force transmission and elasticity.
Air springs are widely used in trains, automobiles, paper machines, lifting platforms, presses, vibrating conveyors, vibrating screens, air hammers, vibration testing machines, casting machinery and other equipment that require stroke control or shock absorption and isolation. instrument.
Firestone W01-358-75989 Air Spring Force Table
| Assembly Height (in.) | Volume@100PSIG(in3) | Pounds Force | ||||
| @20PSIG | @40PSIG | @60PSIG | @80PSIG | @100PSIG | ||
| 6.0 | 237 | 360 | 750 | 1150 | 1580 | 2090 |
| 5.0 | 210 | 540 | 1100 | 1650 | 2240 | 2920 |
| 4.0 | 178 | 650 | 1330 | 2000 | 2710 | 3490 |
| 3.0 | 139 | 710 | 1450 | 2200 | 2980 | 3810 |
| Style 116-1 | Blind nuts,1/4 NPT | W01-358-7598 |
| Two Ply Bellows | Blind nuts,3/4 NPT | W01-358-7605 |
