| Place of Origin: | Guangzhou,China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1B6375 |
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | USD49.9-59.9/PC |
| Packaging Details: | Strong Carton Box or as Customers Requirement |
| Delivery Time: | 3-7 Working Days |
| Payment Terms: | L/C, T/T, Western Union Or Others |
| Supply Ability: | 1000PCS/Week |
| N.W.: | 2.1 Kg | Warranty: | One Year |
|---|---|---|---|
| Pressure Ability: | 0.2-0.8 M PA | Air Inlet: | 1/4 NPT |
| Top Plate Hole/Stud: | M10 | Top Plate Dia: | 160 Mm |
| Bottom Plate Dia: | 160 Mm | Transport Package: | Cartons |

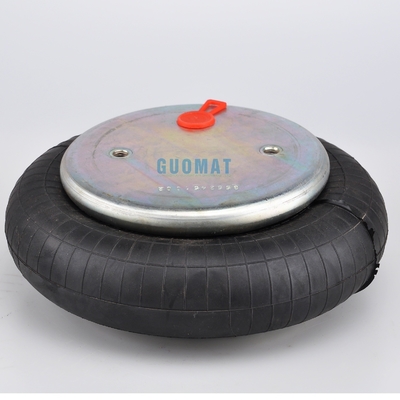

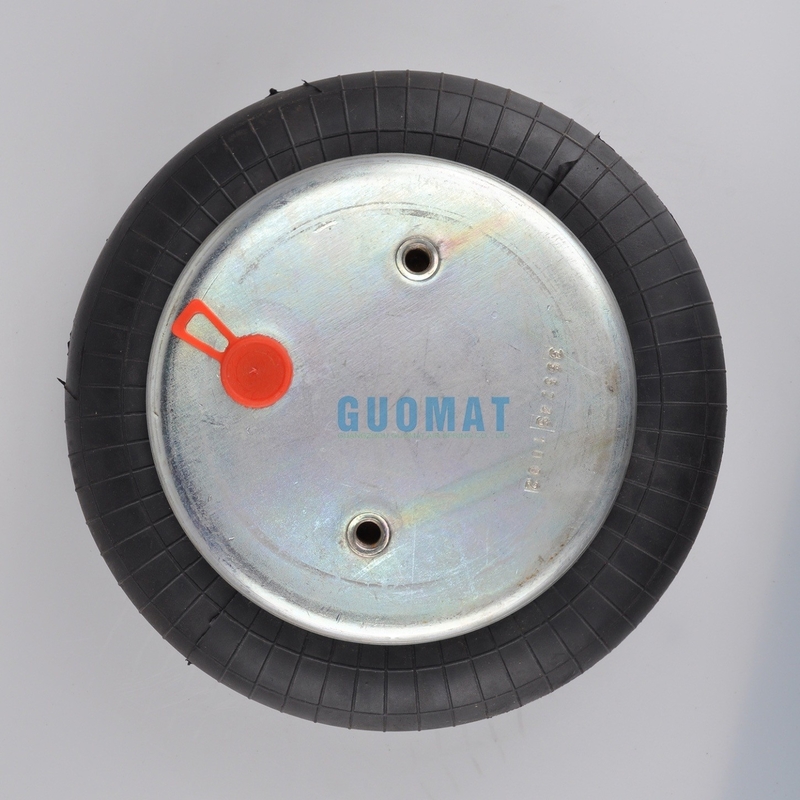

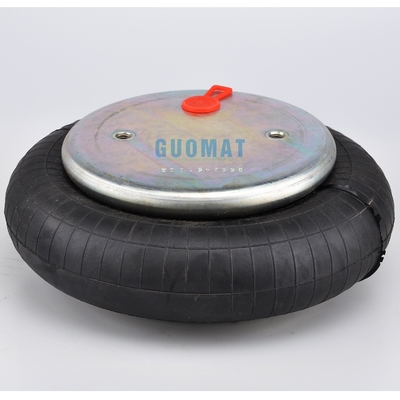

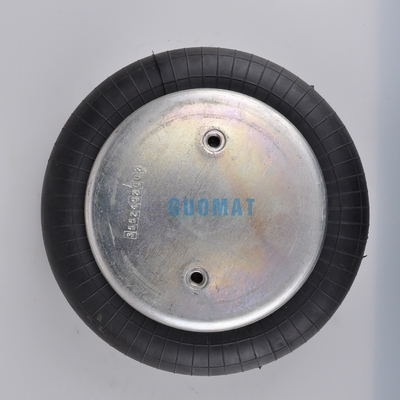

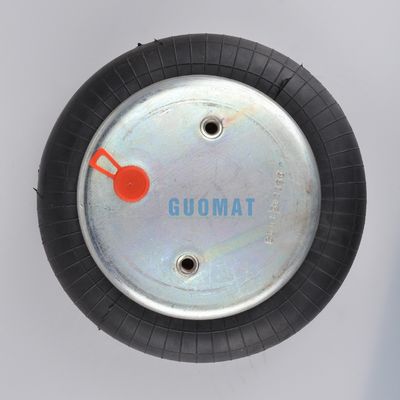

W01M586375 FIRESTONE Air Springs Silk Screen Equipment Mechanical Industria Air Spring FS200-10
OEM Original Equipment Manufacturer:
| BELLOW NO. | COMPLETE NO. |
| AIRKRAFT 112005 | AIRKRAFT 111006 |
| CONTITECH FS 200-10 60319 | CONTITECH FS 200-10 60030 |
| Fire stone Air Spring FLEX 115 | Fire stone Air Spring FLEX 115 |
| Fire stone Air Spring W01-358-0118 | Fire stone Air Spring W01 M58 6375 |
| BOS CH Air Spring 822419009 | |
| WEFORMA WBE 400-E2 / 410-E1 |
Product Description
Technical Data
VIBRATION ISOLATION - DYNAMIC CHARACTERISTICS
| Pressure p [psi] | 40 | 60 | 80 | 100 | 120 | Vol. V [in.³] | |
| Force (load) F [lbf] | 981 | 1,530 | 2,040 | 2,570 | 3,090 | 124 | |
| Spring rate c [lbf/in] | 701 | 1,000 | 1,290 | 1,560 | 1,870 | 124 | |
| Natural Frequency f0 [Hz] | 2.7 | 2.7 | 2.6 | 2.5 | 2.5 | 124 | |
| Design height H: recommended 4.53 inch, minimum 3.94 inch | |||||||
PNEUMATIC APPLICATION - STATIC CHARACTERISTIC VALUES
| Force F [lbf] | |||||||
| Pressure p [psi] | 40 | 60 | 80 | 100 | 120 | Vol. V [in.³] | |
| H 4.50 in. | 939 | 1440 | 1920 | 2430 | 2950 | 120 | |
| H 4.00 in. | 1120 | 1690 | 2260 | 2850 | 3430 | 110 | |
| H 3.50 in. | 1250 | 1880 | 2530 | 3170 | 3850 | 96 | |
| H 3.00 in. | 1370 | 2050 | 2760 | 3460 | 4170 | 83 | |
| H 2.50 in. | 1450 | 2170 | 2930 | 3640 | 4410 | 68 | |
PURCHASE ORDER DATA
| Type | Air Inlet | Order No. | |
| Rubber bellows only | - | ||
| with crimped plates |
G1/4 0 in. excentrical |
||
| with crimped plates | - | ||
SERVICE INSTRUCTIONS
| Thread | max. Torque | |
|---|---|---|
| 2XM10X1.5 | 20 lbf ft / 2.26N.M | |
| G1/4 | 20 lbf ft / 2.26N.M |
Air Spring for Silk Screen Equipment Mechanical
Air springs are commonly used in various industries, including silk screen equipment mechanical applications. Air springs, also known as airbags or pneumatic springs, are flexible containers filled with compressed air. They provide cushioning, vibration isolation, and load support in a wide range of mechanical systems.
