Flange Connection Type 10X1 Single Convoluted Air Bellow Replace FS210-10DS Air Springs

Flange Connection Type 10X1 Single Convoluted Air Bellow Replace FS210-10DS Air Springs

Product Description

Original Equipment Manufacturer Number

Continental ContiTech: FS 210-10 DS 67404

Continental ContiTech: FS 210-10 1/2 M10
Continental ContiTech:Fs 210-10 DS 1/2 M10

Continental ContiTech: FS 210-10 DS G1/2
Continental ContiTech: FS 210-10 DS G1/2 M10
Continental ContiTech:FS210-10 DS/FS210-10DS/FS21010DS

Continental ContiTech Bellow:FS 210-10/FS210-10/FS21010

Firestone No.:W01-R58-4057/W01R58 4057/W01R584057

Firestone Style:10"x1/10"x1/10x1
Goodyear:1B10-2350/1B102350/1B102350

Goodyear Flex No:578-91-3-2350/5789132350/5789132350

Dunlop FR:10"x1SP2523

Dunlop UK (Pneuride):A11127 00 07/A111270007

Norgren: M/31101/M 31101/M31101

Nominal 0 (inch) x convolutions:10"x1/10"x1/10x1

Parker:10"x19109024

YS-AIR:YS-252-1V/YS 252 1V/YS2521V

Technical Data

Nut/Blind Nut

Top Cover Plate Screw (Nut) Tooth : 4xM10

Bottom Cover Plate Screw (Nut) Tooth : 4xM10

Center Distance Between Screw (Nut) Tooth: 181mm

Cover Plate

Top Cover Plate Diameter : 210mm

Bottom Cover Plate Diameter : 210mm

Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet :G1/2

Rubber Bellow

Rubber Bellows MAX Outer Diameter :235mm

Height: 118mm

Flange Connected Air Spring

A flange connected air spring refers to the use of flanges to connect an air spring to a system. An air spring is a load-carrying component of an air suspension system used on machines, automobiles, and buses. It consists of an air compressor, an air-supply tank, leveling valves, check valves, bellows, and connecting piping. The air-spring bellows is a column of air confined within a rubber and fabric container that looks like an automobile tire or two or three tires stacked on top of one another. The check valves admit additional air to the bellows from the air-supply tank to maintain vehicle height when the load is increased, and the leveling valves vent excess air from the bellows when the vehicle rises because of unloading. The vehicle thus remains at a fixed height regardless of load. Although an air spring is flexible under normal loads, it becomes progressively stiffer when compressed under an increased load .

Flange Connection in General

A flange is a protruding ridge or rim, often used to increase strength or spread the load. Flanges are commonly used in various applications, including in pipe connections, where they form a rim at the end of a pipe when fastened to the pipe. Flanges are used to connect pipes, and they have several holes that allow two pipe flanges to be bolted together, forming a connection between two pipes. A gasket may be fitted between two flanges to improve the seal. Flanges are available as discrete parts for use in joining pipes, and they facilitate easy assembly and disassembly of the pipe to another pipe flange .

Flange Connected Air Spring Application

In the context of an air spring system, a flange connected air spring likely refers to the use of flanges to connect the air spring to the rest of the system, such as the connecting piping, valves, and other components. This connection method may provide a secure and reliable way to integrate the air spring into the overall suspension system, ensuring proper functionality and load-bearing capacity .

In summary, a flange connected air spring involves the use of flanges to connect an air spring to a system, providing a secure and reliable method for integrating the air spring into the overall suspension system.

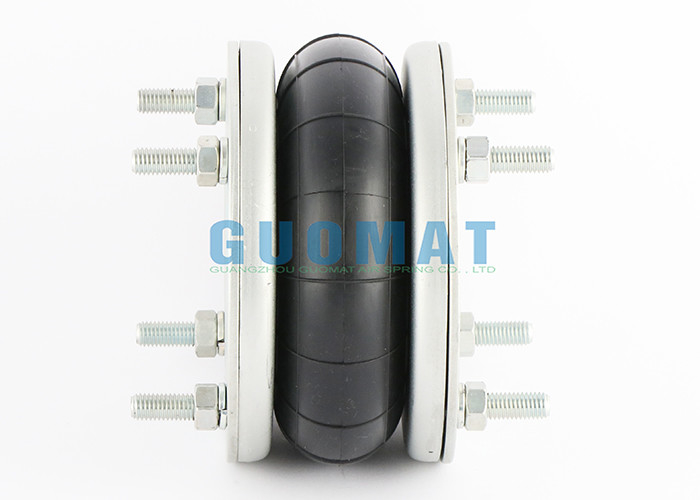

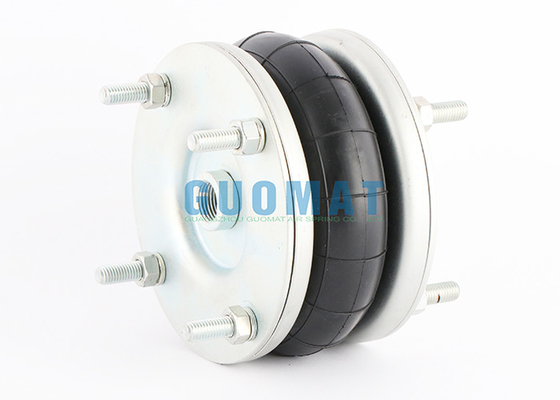

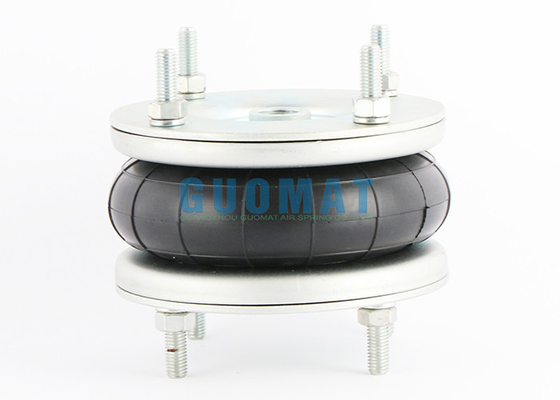

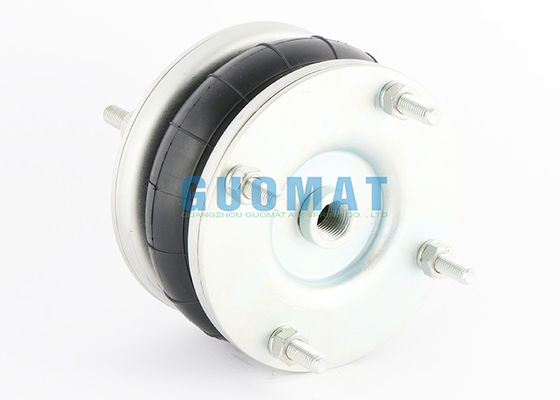

The Real Picture of GUOMAT 10X1 Single Air Spring
