| Place of Origin: | Mexico |
| Brand Name: | GOODYEAR |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1B6-833 |
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | USD99.9-159.9/PC |
| Packaging Details: | Strong Carton Box or as Customers Requirement |
| Delivery Time: | 3-7 Working Days |
| Payment Terms: | L/C, T/T, Western Union Or Others |
| Supply Ability: | 1000PCS/Week |
| Type: | Shock Absorber | N.W.: | 1.2 Kg |
|---|---|---|---|
| Pressure Ability: | 0.2-0.8 M PA | Maximum Diameter: | 165 Mm |
| Specification: | 16*16*16 Cm | Car Make: | Hendrickson |
| OEM: | Yes | Customization: | Available | Customized Request |

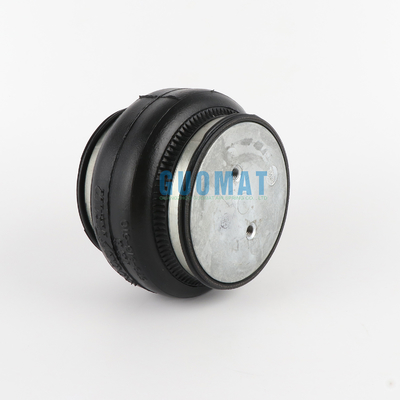

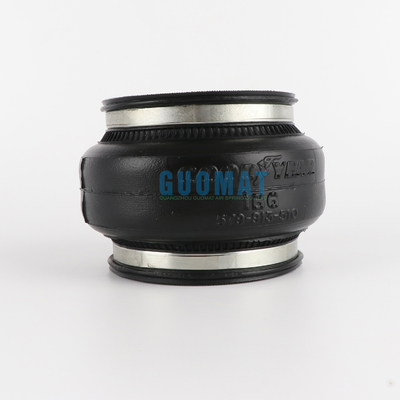

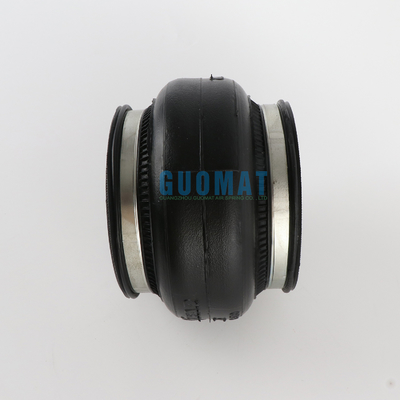

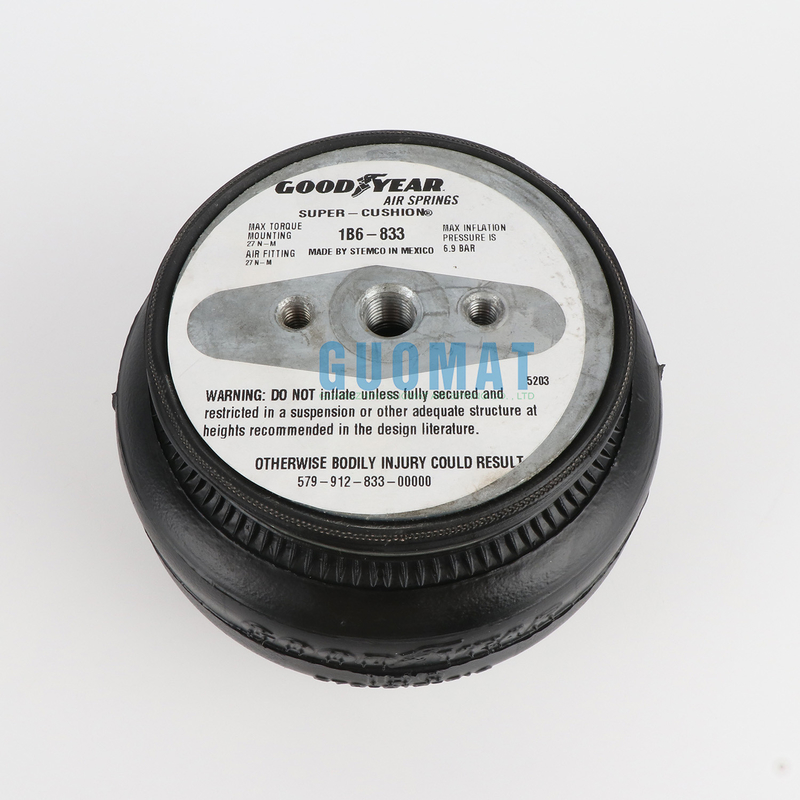

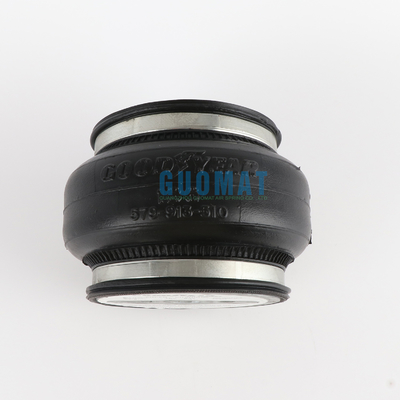

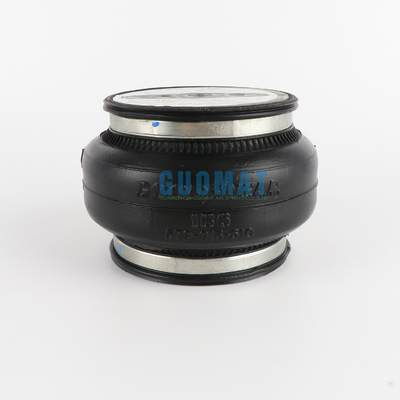

Goodyear 1B6-833 Air Spring Single Convoluted Air Spring 579912833 With Aluminum Plate
OEM Original Manufacturer:
Goodyear Original:1B6-833
The usual below kinds of Goodyear air spring we have
Nut/blind nut
Top cover screw (nut) teeth: 2 xM8-16UNC
Top cover screw center distance: 44.5 mm
Screw (nut) teeth of the bottom cover: 2 xM8-16UNC
Center distance of bottom cover screw: 44.5mm
Air hole/air inlet/air connector
Exhaust hole/air inlet: G1 / 4
Center distance between nut and air inlet: 22.25 mm
Cover
Top cover diameter (width): 105.4 mm
Diameter of bottom cover (width): 105.4 mm
ub rubber bellows
Rubber bellows diameter: 150mm
Compressed height: 71 mm
Maximum height: 122 mm
Working stroke: 71 mm
Bumper block/bumper block
No bumper block
Twist/waist ring
Belt loop: Without belt loop
Replaces following OEM air springs:
ContiTech Part number: FS 70-7 2681015000
ContiTech Part number: FS 70-7 Cl 2681015000
ContiTech Part number: FS 70-7 1/4 M8
ContiTech Part number: FS 70-7 G1/4 M8
ContiTech Part number: FS 70-7 Cl G1/4
ContiTech Part number: FS 70-7 Cl G1/4 M8
ContiTech Part number: FS 70-7 CI/ FS70-7CI/ FS707CI
ContiTech Bellow Part number: FS 70-7 1 FS70-7 /FS707
Fire stone Air Spring No. Part number: W01-M58-6155 1 WO1 M58 6155 1 W01M586155
Fire stone Air Spring Style Part number: 131
Enidine Part number: YM-FS 70-7-0160/ YM FS 70-7-0160 1 YMFS70-7-0160
Enidine Part number: YM-FS 70-7 CI G1/4 M8
Enidine Part number: YI-FS 70-7-731/ YI FS 70-7-731 1 YIFS70-7-731
Enidine Part number: YI-FS 70-7 CI 1/4NPT 3/8-16UNC
Goodyear Part number: 1B6- 83311B6833 1 1B6833
Goodyear Flex No. Part number: 579-913-510 1579 913 510/ 579913510
Goodyear Part number: 1B6- -530 / 1B6 530/ 1B6530
Goodyear Flex No. Part number: 579-913-510 1579 913 510/ 579913510
Enidine Part number: YI-1B6- -5301 YI 1B6530/ Yl1B6530
Phoenix Part number: SP1 B 05 1 SP1B05
Bos ch Air Spring Part number: 822419002
Fes to Air Spring Part number: EB-165-65/ EB 16565/ EB16565
Weforma Part number: WBE 200-E1 1 WBE200-E1 / WBE200E1
Vigor Part number: 1B 50021 1B5002
Vigor Bellow Part number:1B70-7 /1B70 7 /1B707
VKNTECH Part number:1B 70701 1B7070
VKNTECH Bellow Part number: 1B70-7 /1B70 7 /1B707
EAA Part number:1E70-7 /1E70 7 /1E707
EAA Bellow Part number:1E70-7 /1E70 7 /1E707
HONGLI Part number: JBF100/96-1/ JBF100 961/ JBF100961
CHENGUANG Part number: 150086J-1 1150086J11150086J1
| 57991283100019 | 20095541 | Y | ENIDINE YI-1B6-831 | ENIDINE YI-1B6-831 |
| 1B6-833 | 20263189 | N | 1B6-833 | 1B6-833 |
| 57991283300019 | 20095542 | Y | ENIDINE YI-1B6-833 | ENIDINE YI-1B6-833 |
| 57991283400090 | 20806000 | Y | C 1B6-833 | C 1B6-833 |
| 1B6-835 | 20488587 | N | 1B6-835 | 1B6-835 |
| 57991283500019 | 20117074 | Y | ENIDINE YI-1B6-835 | ENIDINE YI-1B6-835 |
| 1B7-840 | 20680822 | N | 1B7-840 | 1B7-840 |
| 57991284000019 | 20095543 | Y | ENIDINE YI-1B7-840 | ENIDINE YI-1B7-840 |
| 57991285000000 | 20384830 | Y | 1B8-850 | 1B8-850 |
| 57991285000019 | 20095544 | Y | ENIDINE YI-1B8-850 | ENIDINE YI-1B8-850 |
| 57991286000019 | 20117076 | Y | ENIDINE YI-1B8-860 | ENIDINE YI-1B8-860 |
| 57991252800090 | 20811600 | Y | C 1B6-530 | C 1B6-530 |
| 57991252900090 | 20811601 | Y | C 1B6-535 | C 1B6-535 |
| 1B6-530 | 20095484 | N | 1B6-530 | 1B6-530 |
| 57991253000019 | 20095485 | Y | ENIDINE YI-1B6-530 | ENIDINE YI-1B6-530 |
| 1B6-531 | 20095486 | N | 1B6-531 | 1B6-531 |
| 57991253100019 | 20095487 | Y | ENIDINE YI-1B6-531 | ENIDINE YI-1B6-531 |
| 1B6-532 | 20095488 | N | 1B6-532 | 1B6-532 |
| 57991253200019 | 20095489 | Y | ENIDINE YI-1B6-532 | ENIDINE YI-1B6-532 |
| 57991253300000 | 20095490 | Y | 1B6-533 | 1B6-533 |
| 1B6-535 | 20095491 | N | 1B6-535 | 1B6-535 |
| 57991253500019 | 20095492 | Y | ENIDINE YI-1B6-535 | ENIDINE YI-1B6-535 |
| 1B6-536 | 20095493 | N | 1B6-536 | 1B6-536 |
| 57991253600019 | 20095494 | Y | ENIDINE YI-1B6-536 | ENIDINE YI-1B6-536 |
| 1B6-538 | 20065951 | N | 1B6-538 | 1B6-538 |
| 57991253800019 | 20095496 | Y | ENIDINE YI-1B6-538 | ENIDINE YI-1B6-538 |
