| Place of Origin: | Germany |
| Brand Name: | CONTITECH |
| Certification: | ISO/TS16949:2009 |
| Model Number: | FD330-22 CI |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Product Name: | Contitech Air Spring | Warranty: | 12 Months |
|---|---|---|---|
| Material: | Rubber + Iron | Installation: | Screw Installation |
| Brand: | Contitech Brand | Contitech: | FD330-22 |
| Convolution: | 2 | Overall Weight: | 4.8KG |
| High Light: | Contitech Air Spring,G1/4 Contitech Air Spring,Double Convolution Contitech Air Spring |
||
FD 330-22 CI Original Contitech Double Convolution Air Actuator G1/4 Air Connection Air Spring
Product Description
Model Number: FD330-22 G1/4
Material: Steel and Rubber
Weight: 4.8kg
Pressure Ability: 0.2-0.8 MPa
Air Inlet: G1/4
Air Inlet Excentrical: 73 mm
Top Screw (Nut) Tooth: 2pcsXM8-15 mm deep
Top Cover Plate Diameter: 228mm
Bottom Cover Plate Diameter: 228mm
Center Distance Between Threaded Holes: 157.5mm
The Rubber Bellow Max Outer Diameter: 325mm
Max Height: 305mm
Min Height: 75mm
Minimum Order Quantity: 1pc
Certification: ISO/TS16949:2009
Warranty: 12 Months
Supply Ability: 1000pcs/week
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union, Paypal or Others
Original Equipment Manufacturer Number
Contitech Number: FD330-22
Contitech Number: FD 330-22
Contitech Number: FD330-22 CI
Contitech Number: FD 330-22 CI
Contitech Number: FD330-22 CI G1/4
Contitech Number: FD 330-22 CI g1/4
Contitech Number: FD330-22 CI 60031
Contitech Number: FD 330-22 CI 60031
Application and Features
The Contitech FD 330-22 air spring is expertly designed to provide superior performance and versatility for a wide range of industrial applications. It features a crimped assembly that ensures enhanced strength and durability, along with a convoluted bellow meticulously crafted from natural rubber. The top and bottom plates are crimped and coated with zinc plating to provide excellent corrosion resistance, ensuring long-term high-quality performance. The air spring is suitable for industrial washing machinery and offers a pressure ability ranging from 0.2 to 0.8 MPa
Purchase Order Data
|
Type |
Order No. |
|
Rubber bellows only |
74199 |
|
With crimped plates,G1/4 air inlet A=73mm excentrical |
60031 |
|
With crimped plates,G3/4 air inlet A=73mm excentrical |
68674 |
|
With crimped plates,G1 air inlet A=66mm excentrical |
2682060000 |
|
With stainless steel crimped paltes,G1 air inlet A=66mm excentrical |
61959 |
Convoluted Air Spring
1. Top/bottom plate
2. Air inlet
3. Bolts or blind nuts
4. Bumper
5. Rolling lobe
6. Piston(steel or plastic)
7. Bump stop
8. Convoluted bellow

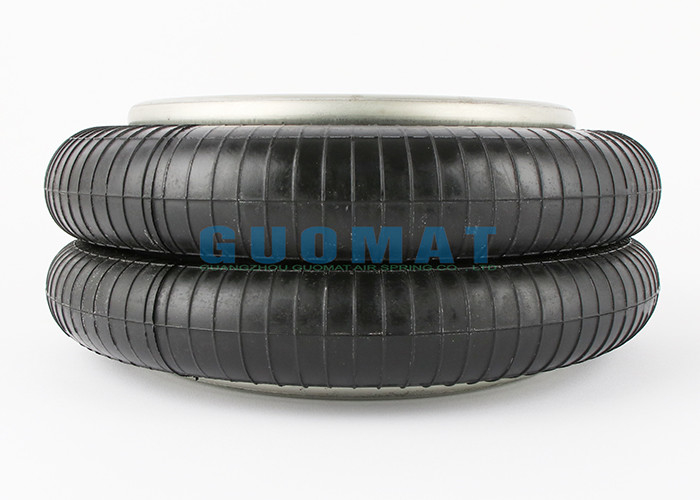

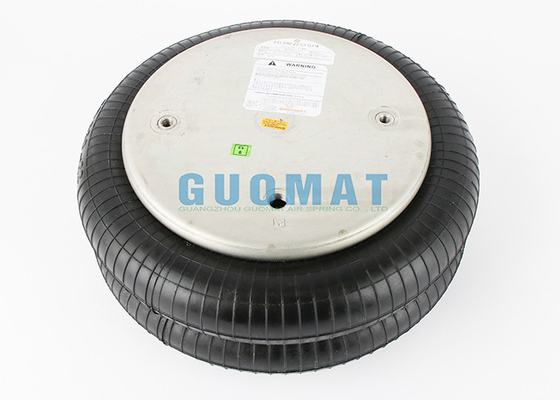

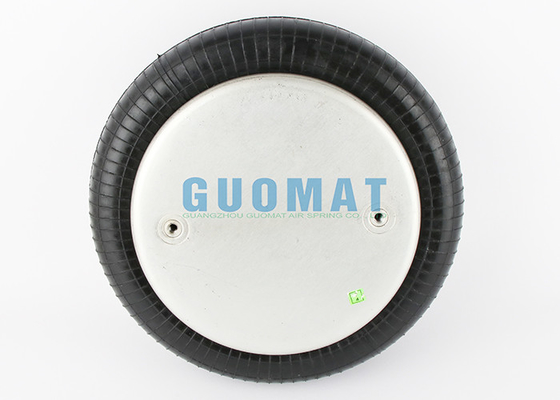

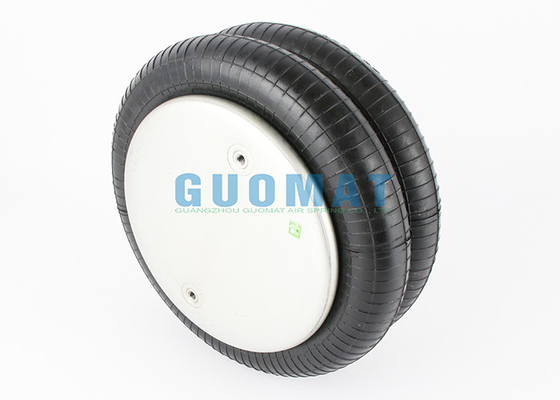

FD 330-22 Contitech Rubber Air Spring Real Picture
