| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B6897 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $59.9-69.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Name: | Double Convolution Air Spring | Warranty: | 12 Months |
|---|---|---|---|
| Material: | Rubber + Steel | MOQ: | 10 Pieces |
| Air Pressure Range: | 2bar-8bar | Condition: | New |
| Air Spring: | Contitech FD 200-19 505 | Convolutions: | Double |
| High Light: | Concrete Screening Machine Suspension Rubber Bellows,Concrete Screening Machine Rubber Bellows,Firestone Rubber Bellows |
||
2B9-229 Goodyear Suspension Rubber Bellows W01-358-6897 Firestone Air Spring For Concrete Screening Machine
Product Description
ContiTech FD 200-19 505 air springs are aftermarket replacement parts used in industrial equipment. Design shock absorbers for industrial equipment to improve work efficiency and safe service life. GUOMAT NO.2B6897 is produced with reference to ContiTech FD 200-19 505, using high-quality production materials and high durability.
Product Name: Industrial Air Spring
Brand: GUOMAT
Model No.: 2B6897
Spring Material: Rubber+Steel
Warranty Period: 12 Months
Type: Double Convoluted Air Spring
Application: For Concrete Screening Machine
Sample: Acceptable
GUOMAT 2B6897 OEM Reference Numbers Below
Contitech Part Number: FD200-19 505 / FD 200-19 505 / FD200-19505
Contitech Order Number: 161300
Firestone Part Number: W01-358-6897 / W01 358 6897 / W013586897
Firestone Part Number: WO1-358-6897 / WO1 358 6897 / WO13586897
Goodyear Part Number: 2B9-229 / 2B 9-229 / 2B9 229
Goodyear Bellows Number: 578-92-3-202 / 578 92 3 202 / 578923202
Goodyear Part Number: 2B9-228 / 2B 9-228 / / 2B9 228
Goodyear Bellows Number: 559-23-8-325 / 559 23 8 325 / 559238325
Triangle Part Number: 6325 / 4505
Waston&Chalin: AS-0058
Brake&Wheel: M3528
Ridewell: 1003586897C

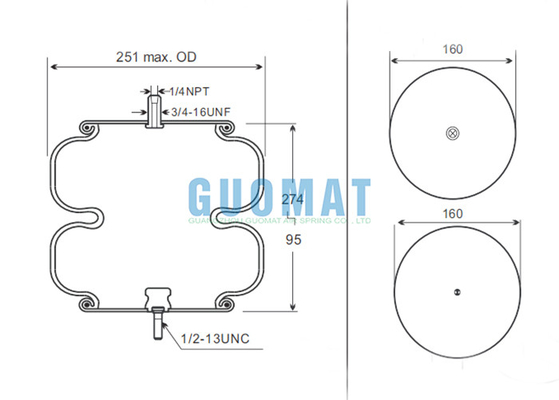

Technical Data
|
Cover Plate Diameter |
160mm |
|
Combo Stud |
1/4NPT,3/4-16UNF |
|
Threaded Hole |
1/2-13UNC |
|
The Rubber Bellow MAX.Outer Diameter |
251mm |
|
Max.Height |
95mm |
|
Min.Height |
95mm |
Industrial Air Springs Used in Concrete Screening Machines
Industrial air springs are commonly used in concrete screening machines to provide support, act as actuators, and help the machine handle terrain and soil density changes . These air springs are designed to expand or compress as the soil density varies, ensuring that the planter head remains at the correct depth for optimal germination and crop productivity . Additionally, air springs are also used in soil fumigation vehicles or machines .
It's worth noting that concrete screening machines play an essential role in the manufacturing production process by sifting through materials and separating them into different sizes . These machines are used in various industries, including construction, mining, and recycling . The use of industrial air springs in concrete screening machines helps ensure their efficient and effective operation.
Every standard air spring consists of 4 layers.
•The inner layer which actually contains the air.
•The first layer of fabric reinforced rubber applied
at a specific angle.
•The second layer of fabric reinforced rubber which
is laid to a specific angle to the first layer.
•The cover to protect the bias fabric plies.

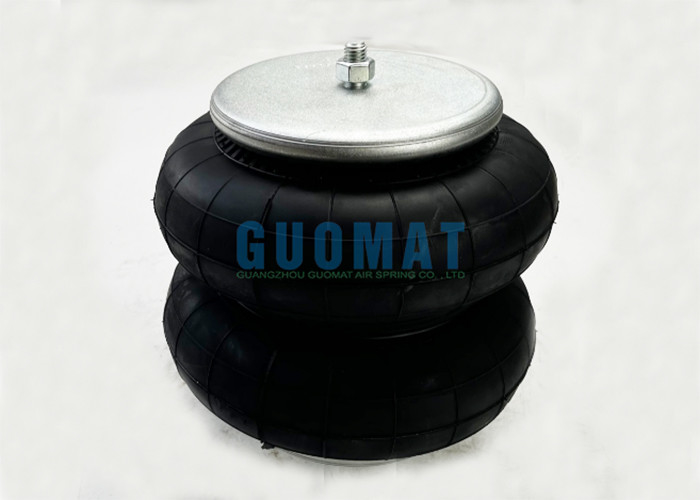

The Real Picture of 2B6897 Industrial Air Spring
