FD 76-14 DS Contitech Industrial Air Spring 6''x2 Rubber Bellows Air Suspension Bags

FD 76-14 DS Contitech Industrial Air Spring 6''x2 Rubber Bellows Air Suspension Bags

Product Details:
Place of Origin: Germany
Brand Name: CONTITECH
Certification: ISO/TS16949:2009
Model Number: FD 76-14 DS CR
Payment & Shipping Terms:
Minimum Order Quantity: 6pcs
Price: $199.9-299.9/pc
Packaging Details: Strong Carton Box Or As Customers Need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Rubber Bellow And Steel Cover Warranty: 1 Year Warranty
Function: Reduce Shock Packaging: Carton/Cartons
Product Name: Air Ride Spring Bag MOQ: 10 Pieces
Position: Industrial Machine Contitech No.: FD 76-14
Highlight:

Contitech industrial air spring

,

6x2 rubber bellows air suspension

,

industrial air suspension bags

FD 76-14 DS Contitech Industrial Air Spring 6"x2 Rubber Bellows Air Suspension Bags

Flange air springs are air suspension systems with flange interfaces, widely used in the suspension systems of heavy machinery, industrial equipment, and vehicles. They utilize high-strength rubber and metal components, providing shock absorption and support through internal air pressure regulation. The flange interface design makes installation more stable and easier, making them particularly suitable for applications requiring fixed positions and bearing large loads.

Product Identification
Contitech Models
  • FD76-14
  • FD 76-14
  • FD76-14 DS
  • FD 76-14 DS
  • FD76-14 DS CR
  • FD 76-14 DS CR
OEM Equivalent Models
  • GUOMAT: 2B6X2T
  • Firestone: W01-R58-4053, W01 R58 4053, W01R584053, 6"x2 / 6X2
  • Dunlop: SP1482
  • Norgren: M/31062, M 31062, M31062
Technical Specifications
  • Maximum height: 190mm
  • Minimum height: 75mm
  • Cover plate diameter: 153.5mm
  • Bolts: M10
  • Center-to-center distance of bolt diameter: 127mm
  • Maximum outer diameter: 178mm
Performance Data
Pressure P (bar) 3 4 5 6 7 8 Vol.V(l)
Force(Load) (kN) 2.7 3.7 4.7 5.7 6.7 7.8 2
Spring Rate (N/mm) 65 83 101.5 118.5 136 153
Natural frequency (Hz) 2.5 2.4 2.3 2.3 2.3 2.2
Height vs Pressure Data
Pressure P (bar) 3 4 5 6 7 8 Vol.V(l)
Height H(mm) 170 2.16 2.98 3.83 4.7 5.59 6.53 2.1
Height H(mm) 150 2.85 3.86 4.9 5.96 7.06 8.18 1.9
Height H(mm) 130 3.46 4.66 5.88 7.12 8.28 9.67 1.7
Height H(mm) 110 4.06 5.43 6.8 8.19 9.62 11.1 1.4
Height H(mm) 90 4.74 6.3 7.88 9.47 11.1 12.8 1.1
Key Features
  • Flange Interface Design: Provides a secure installation method, ensuring reliable connection and reducing potential loosening or leakage problems.
  • Shock Absorption and Support: Effectively absorbs and dampens vibrations from road surfaces or mechanical equipment, improving stability and comfort.
  • Wide Range of Applications: Suitable for heavy machinery, automotive suspension systems, industrial handling equipment, and other scenarios involving heavy loads and high-intensity use.
  • High Durability: Utilizes natural rubber and high-quality metal materials to maintain high efficiency in various harsh working environments, reducing maintenance costs.

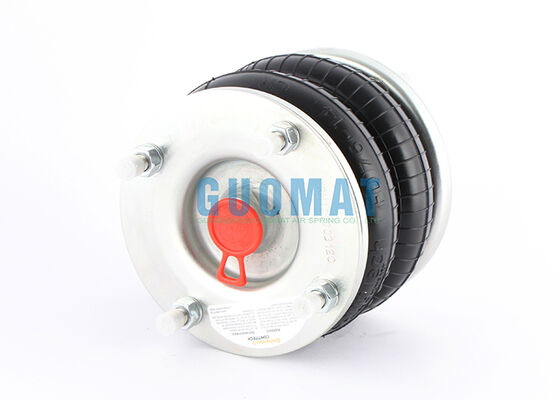

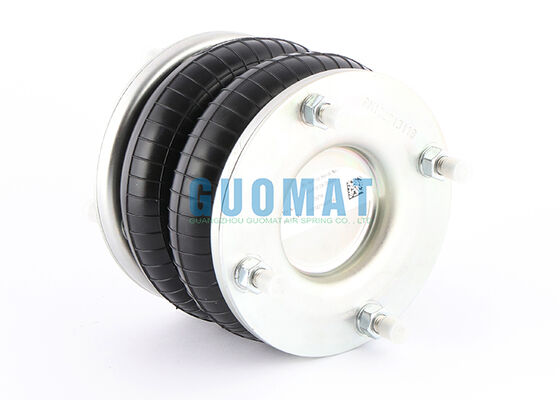

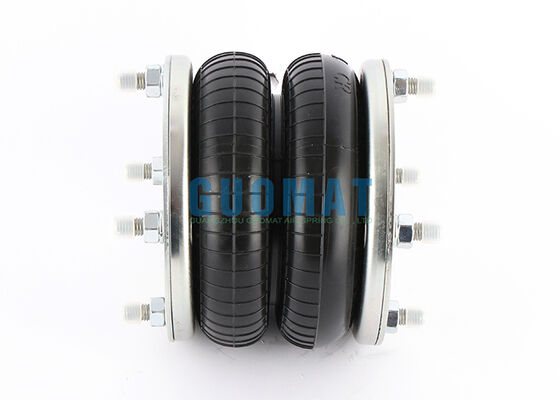

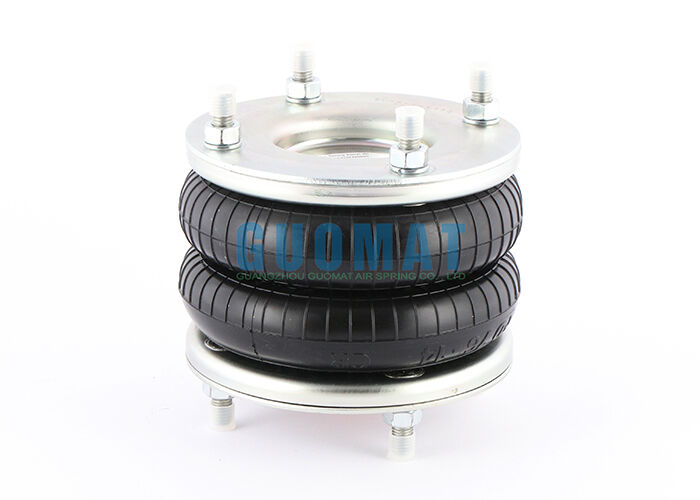

Product Images
FD 76-14 DS Contitech Industrial Air Spring 6''x2 Rubber Bellows Air Suspension Bags 0 FD 76-14 DS Contitech Industrial Air Spring 6''x2 Rubber Bellows Air Suspension Bags 1
