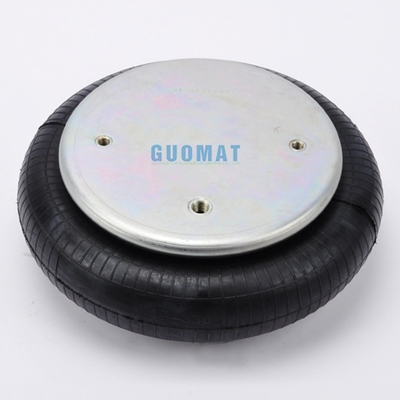

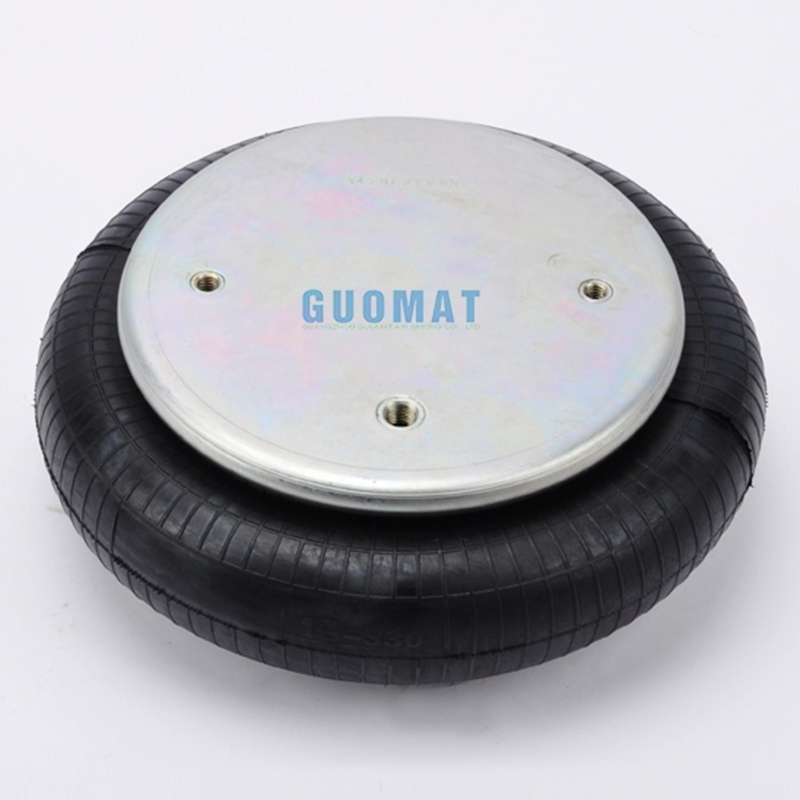

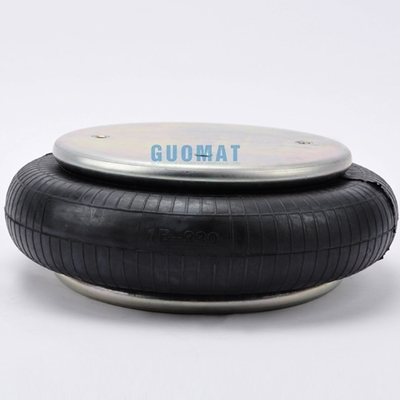

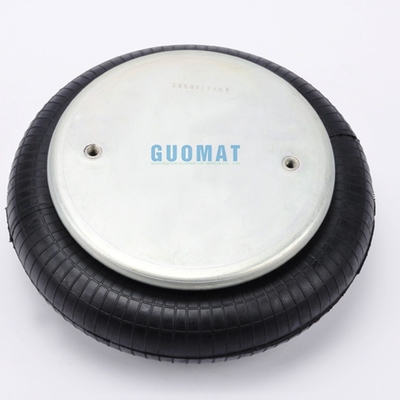

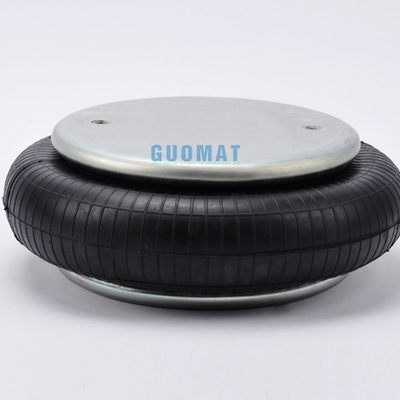

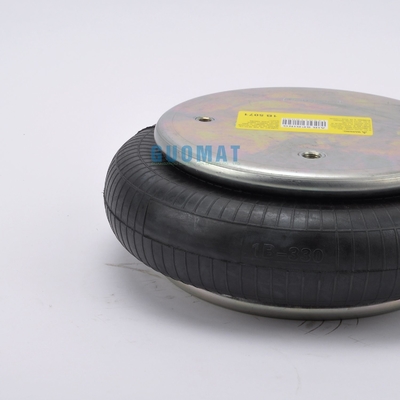

Industrial Air Spring Single Convoluted W01-358-7008 Contitech For Agriculture Machine

Product Details:

Place of Origin:	Guangzhou,China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1B 5330

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD49.9-59.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Item Name:	Industrial Air Spring	Quality:	100% Tested
Origin:	Guangzhou	HS Code:	8708809000
After-sales Service:	1 Year	Firestone:	W01-358-7008
Contitech:	FS 330-11 474	Gas Hole:	1/4NPTF
Highlight:	Agriculture Machine Industrial Air Spring

Industrial Air Spring Single Convoluted W01-358-7008 Contitech For Agriculture Machine

Product Name:	Industrial Air Spring
Description:	Air Spring Shock Absorber Spring For Equipment
MOQ:	1 PCS
Warranty:	12 Months
Material:	Rubber + Steel
Package:	Brown Carton
Payment:	L/C T/T Western Union
Port of shipment	HuangPu,Guangzhou,China
Delivery Time	2-8 working days after receiving your payment
Shippment:	By Sea, By Air, By Express (DHL/ Fedex/UPS...)

Cross Reference

Firestone W01-358-7008

Contitech FS330-11 474

Goodyear 1B12-300/313

Triangle 6374/4474

Holland(Neway) : 90557226

Product Technical parameter

Cover Plate	Top Cover Plate Diameter:231mm
Cover Plate	Bottom Cover Plate Diameter:231mm
Air Inlet	1/4 NPTF
Blind Nut	Screw Center Distance Of Top Cover Plate:157.5mm
	Screw Center Distance Of Bottom Cover Plate:157.5mm
	Screw And Gas Hole Diameter Of Top Cover Plate:73mm
	Top Cover Plate Screw (Nut) Tooth:2X3/8-16UNC
	Bottom Cover Plate Screw (Nut) Tooth:2X3/8-16UNC
Rubber Bellow	Rubber Bellow MAX Diameter:325mm
	The Working Stroke:MAX 160mm to MIN 55mm
	Maximum Height:160mm
	Minimum Height:55mm
	Compression Height:105mm

Industrial Air Spring

The industrial air spring widely used in paper-making machinery, vehicle detection equipment, mechanical gripper, shaking table ect. to effectively improve the working efficiency, safety and service life of the equipment. In these fields, the products plays an important role of damping, lifting, supporting, and so on. It helps customers to save manufacturing costs and win more economic profits.

The products features low cost, wide use and easy operation.
It achieves long service life, and requires no maintenance and lubrication.
This product allows for flexible expansion and contraction, strong loading capacity, convenient design, and simple structure.
It comes with no friction and soft medium.
Packing Details

1. One piece in a poly bag.1piece in a carton.

2. Mark the product numbers and the QTY outside the carton.

3. As your requirement.

Marking

1. Be possible to mark your logo as request.

2. No specified, will mark our Logo as standard.

3. OEM is accepted.

About us

We always focus on the development of automotive components, and provide you with quality products and competitive prices.
If you are interested in our products, we are pleased to offer you our best quotation. If you have any question, please do let me know
We are looking forward to establishing business with you.

Advantages

1. Excellent materials

2. Effective shock

3. In situ installation

4. Comfortable and stable

5. Long life

6. Slove the abnormal noise

Industrial Air Spring Single Convoluted W01-358-7008 Contitech For Agriculture Machine 0
