W013586920/W013587043 Firestone Rubber Air Spring 1B12-305 Goodyear Industrial Air Bellow

Product Details:

Place of Origin:	Guangzhou,China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1B6920

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD49.9-59.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model:	Rubber Air Spring	Quality:	100 % Tested
Warranty:	12 Months	Position:	Industrial Machine
Type:	Gas-Filled	Firetsone No.:	W01-358-6920/W01-358-7043
Application:	Vibratory Conveyors	Goodyear:	1B12-305
Highlight:	Firestone rubber air spring , Goodyear industrial air bellow , 1B12-305 air spring

W013586920/W013587043 Firestone Rubber Air Spring 1B12-305 Goodyear Industrial Air Bellow

Product Attributes

Attribute	Value
Model	Rubber Air Spring
Quality	100 % Tested
Warranty	12 Months
Position	Industrial Machine
Type	Gas-Filled
Firetsone No.	W01-358-6920/W01-358-7043
Application	Vibratory Conveyors
Goodyear	1B12-305

Product Description

Brand: GUOMAT

Model: 1B6920

Main Material: High-strength synthetic rubber (wear-resistant and aging-resistant)

Cover Material: Galvanized steel (corrosion-resistant, enhances structural stability)

Applications: Industrial machinery vibration reduction, precision equipment protection, heavy-duty transport vehicle support, etc.

Warranty: 1-year limited warranty (from date of delivery)

Payment: T/T, Letter of Credit, PayPal

Delivery Time: Standard order: 3-7 business days

Packaging: Moisture-proof carton (export standard)

OEM Numbers

Goodyear Part Number: 1B12-305
Goodyear Part Number: 1B 12-305
Goodyear Part Number: 1B12 305
Goodyear Part Number: 1B12305
Firestone Part Number: W013586920
Firestone Part Number: W01 358 6920
Firestone Part Number: W01-358-6920
Firestone Part Number: W013587043
Firestone Part Number: W01 358 7043
Firestone Part Number: W01-358-7043
Firestone Part Number: 6920
Firestone Part Number: 7043
Automann Part Number: ABSP2B22RA-7443

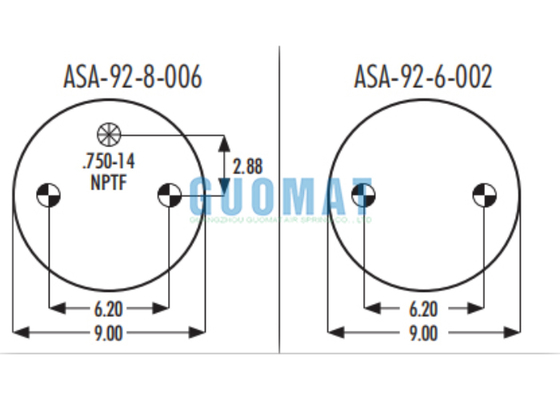

Specifications and Technical Parameters

Nut/blind nut:

Threaded hole: 2X3/8-16
The threaded hole distance of the cover plate: 6.2''

Air hole/air inlet/air fittings:

Air hole/air inlet: 1/2NOTF or 3/8 NPTF
The screw center distance between the air hole and the nut: 2.88''

Cover plate:

Top plate diameter: 9.0''
Diameter of the bottom cover: 9.0''

Rubber bellows:

Maximum height: 7.2''
Minimum height: 2.6''

Bumper block: No bumper block

Belt loop: Without

Single Convoluted Air Spring Specifications

Part Number	Top Plate Hole/Stud Qty	Bottom Piston Hole/Stud Qty	Top Plate Dia.	Bottom Plate Dia.	Collapsed Height	Flexmember	Piston	Piston Type
1B12-301	3	2	9	9	2.6	578-91-3-301	-	-
1B12-305	3	2	9	9	2.6	578-91-3-301	-	-
1B14-358	5	4	11.3	11.3	2.3	578-91-3-352	-	-
1B14-350	5	4	11.3	11.3	2.5	578-91-3-351	-	-
1B14-351	5	4	11.3	11.3	4.18	578-91-3-351	-	-
