YOKOHAMA S-600-3 Convoluted Air Spring S600-3 For Servo Drive Turret Punch Press

YOKOHAMA S-600-3 Convoluted Air Spring S600-3 For Servo Drive Turret Punch Press

  • YOKOHAMA S-600-3 Convoluted Air Spring S600-3 For Servo Drive Turret Punch Press
  • YOKOHAMA S-600-3 Convoluted Air Spring S600-3 For Servo Drive Turret Punch Press
  • YOKOHAMA S-600-3 Convoluted Air Spring S600-3 For Servo Drive Turret Punch Press
YOKOHAMA S-600-3 Convoluted Air Spring S600-3 For Servo Drive Turret Punch Press
Product Details:
Place of Origin: Guangdong,China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: S-600-3
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,paypal or others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Rubber And Stainless Steel Yokohama: S-600-3
GUOMAT: F-600-3 Layer Number: Double Convolution
Using Maximum Internal Pressure: 0.69 Mpa Vibration Frequency: 1.8 Hz
High Light:

triple convoluted air spring

,

double convoluted air spring

YOKOHAMA S-600-3 Rubber Air Spring Shock S600-3 For Servo drive turret punch press

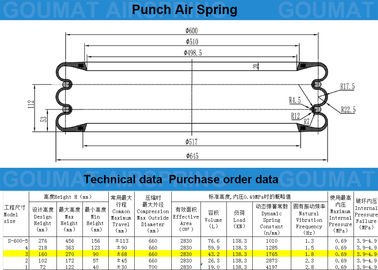

S-600 items Detailed Parameter Table:



GUOMAT NO. Reference No. Hight H(mm) Commonly Maximum Stroke(mm) The Largest Diameter When Compressed(mm)
Design High(mm) Maximum High(mm) Minimum Height(mm)
F-600-1 S-600-1 72 122 40 ±30 700
F-600-2 S-600-2 102 172 57 ±45 660
F-600-3 S-600-3 160 270 90 ±68 660
F-600-4 S-600-4 218 363 123 ±90 660
F-600-5 S-600-5 276 456 156 ±113 660



GUOMAT NO. Reference No. Standard Height,Internal Pressure 0.49 M pa When The General Value Using Maximum Internal Pressure (M pa) Internal Pressure (M pa)
Effective Area (Cm2) Volume(L) Load (K n) Dynamic Spring Parameters (N/Min) Vibration Frequency (Hz)
F-600-1 S-600-1 2830 19 138.3 4197 2.8 0.69 3.9-4.9
F-600-2 S-600-2 2830 26.3 138.3 2873 2.3 0.69 3.9-4.9
F-600-3 S-600-3 2830 43.2 138.3 1765 1.8 0.69 3.9-4.9
F-600-4 S-600-4 2830 59.9 138.3 1285 1.5 0.69 3.9-4.9
F-600-5 S-600-5 2830 76.6 138.3 1010 1.3 0.69 3.9-4.9





Features



1. The bellows type has less deformation of the rubber film during operation (expansion and contraction), so that excellent durability can be obtained.


2, because there is no sliding parts, it can be easily maintained without refueling.


3, this air spring compared with other types of air springs, large stroke installation height can be kept low.


4, Because air is used as an elastic body, it is flexibly subjected to a large load. The elasticity of the air spring does not allow other springs to be used together.


5, by changing the internal pressure, the force of the spring can be varied within a wide range, so the range of use varies greatly.


6, By using the height adjustment valve together, it is always possible to maintain a constant height to prevent load fluctuations.


7, By using auxiliary tank and throttle valve together, excellent damping effect can be obtained. Also, the resonance amplitude can be reduced.


8, This air spring is simple in structure and easy to install and disassemble.





GUOMAT Has Punch Press Air Spring Cushion /Air Shock Absorber Part NO. Below:



Japan Yokohama Rubber Air Spring Cushion Have The Following Specifications And Models:



S-300-1R, S-300-2R, S-300-3R, S-300- 4R, S-350-1R, S-350-2R, S-350-3R, S-350-4R, S-400-2R, S-400-3R, S-400-4R, S-400-5R S-450-1R, 2R, 3R, 4R, S-500-2R, 3R, 4R, Guangzhou GUOMAT, S-500-5R, S-550-2R, S-550-2R, S-550-3R S -600-1R, 2R, 3R, 4R, 5R, S-730-1R, 2R, 3R, 4R, 5R, 6R, S-50-2R, S-50-3R, S-60-2R, S-60 -3R, S-60-4R, S-90-3R, S-100-2R, S-100-3R, S-100-4R, S-120-2R, S-120-3R, S-120-4R , S-120-4R, S-160-1R, 2R, 3R, S-160-4R, S-200-2R, S-200-3R, S-200-4R, S-200-4R, S-220 -2R, S-220-3R, S-220-4R, S-240-1R, S-240-2R, S-240-3R, S-240-4R,



Bmw Station Si / Springride (Spratt), Taiwan Ysair Airbag / Air Cushion Specifications Are As Follows :



YS-65-1, YS-115-1 , YS-115-2, YS-130-1, YS-130-2, YS-160-1, YS-160-2, YS-210-1, YS-210-2, YS-250-1, YS -250-2, YS-280-1, YS-280-2, YS-320-1, YS-320-2, YS-320-3, YS-335-1, YS-335-2, YS-335 -3, YS-405-1, Y-S405-2, YS-405-3, YS-460-1, YS-460-2, YS-460-3, YS-510-1, YS-510-2 , YS-510-3, YS-560-1, YS-560-2, YS-560-3, YS-610-1, YS-610-2, YS-610-3, YS-660-1, YS -660-2, YS-660-3, YS-710-1, YS-710-2, YS-710-3;



YOKOHAMA S-600-3 Convoluted Air Spring S600-3 For Servo Drive Turret Punch Press 0YOKOHAMA S-600-3 Convoluted Air Spring S600-3 For Servo Drive Turret Punch Press 1YOKOHAMA S-600-3 Convoluted Air Spring S600-3 For Servo Drive Turret Punch Press 2
