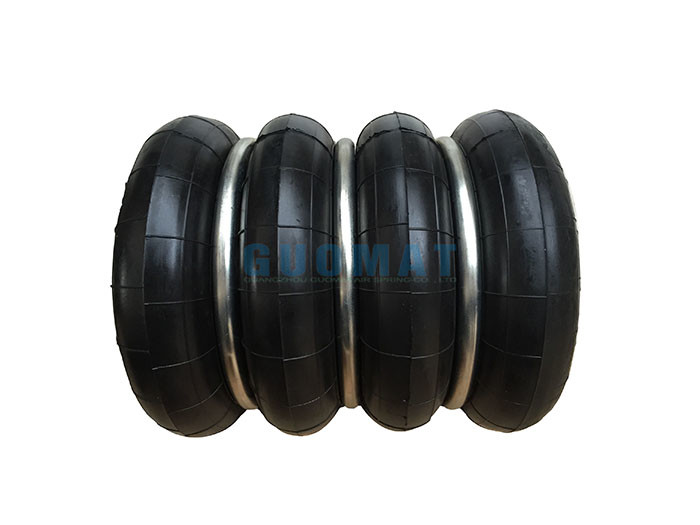

Yokohama Air Springs Bellows

Yokohama Air Springs Bellows

    • Yokohama Air Springs Bellows
    • Yokohama Air Springs Bellows
    • Yokohama Air Springs Bellows
    • Yokohama Air Springs Bellows
    • Yokohama Air Springs Bellows
  • Yokohama Air Springs Bellows

    Product Details:

    Place of Origin: Guangdong,China
    Brand Name: GUOMAT
    Certification: ISO/TS16949:2009
    Model Number: S-200-4

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pc
    Price: Negotiable
    Packaging Details: strong carton box or as customers need
    Delivery Time: 2-8 work days
    Payment Terms: T/T, Western Union,paypal or others
    Supply Ability: 1000pcs/week
    Contact Now
    Detailed Product Description
    Material: Rubber And Stainless Steel Yokohama: S-200-4 R
    GUOMAT: F-200-4 Layer Number: 4 Convolution
    Using Maximum Internal Pressure: 0.88 Mpa Vibration Frequency: 1.7 Hz
    High Light:

    triple convoluted air spring


    double convoluted air spring

    Yokohama Air Springs Bellows S-200-4 Or 200-4 For Shock Absorber Test System



    Yokohama Air Springs bellows S-200 Catalogue items Detailed Parameter Table:


    GUOMAT NO. Reference No. Hight H(mm) Commonly Maximum Stroke(mm) The Largest Diameter When Compressed(mm)
    Design High(mm) Maximum High(mm) Minimum Height(mm)
    F-200-2 S-200-2 98 148 53 ±35 260
    F-200-3 S-200-3 152 232 82 ±53 260
    F-200-4 S-200-4 206 311 111 ±70 260



    GUOMAT NO. Reference No. Standard Height,Internal Pressure 0.49 M pa When The General Value Using Maximum Internal Pressure (M pa) Internal Pressure (M pa)
    Effective Area (Cm2) Volume(L) Load (K n) Dynamic Spring Parameters (N/Min) Vibration Frequency (Hz)
    F-200-2 S-200-2 315 3.2 15.4 373 2.5 0.88 2.9-3.9
    F-200-3 S-200-3 315 5.2 15.4 235 2 0.88 2.9-3.9
    F-200-4 S-200-4 315 7.2 15.4 177 1.7 0.88 2.9-3.9



    This Item Weight And Package:


    Net Weight:5.0 KG


    Gross Weight:6.0KG


    Package Size:240mm*260mm*260mm



    Feature Of Air Springs Bellows :

    1. The bellows type has less deformation of the rubber film during operation (expansion and contraction), so that excellent durability can be obtained.

    2, the main component is rubber, does not contain any sliding parts, so you can easily maintain without refueling.

    3, This kind of air spring can be kept low compared with other types of air springs.

    4, Because the air is used as an elastic body, it can flexibly withstand a large load by damping the compressed air. This air spring does not allow other springs to use together.

    5. By changing the internal pressure with compressed air, the air spring is subjected to a wide range of pressure changes, so it is used in presses with very different pressure ranges.

    6. Can be used with height adjustment valve, height adjustment valve can always maintain a constant height to prevent load fluctuations.

    7, can be used in conjunction with the auxiliary fuel tank and throttle to obtain excellent shock absorption. It can reduce the resonance amplitude.

    8, The air spring has a simple structure and is easy to install and disassemble.



    Successfully solved many problems equipments' vibrations
