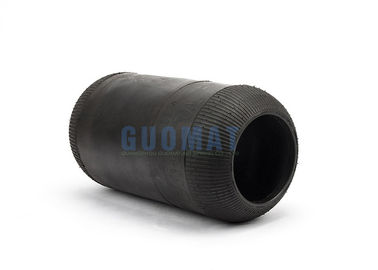

Bus Contitech Air Bags 644n

Bus Contitech Air Bags 644n

    • Bus Contitech Air Bags 644n
    • Bus Contitech Air Bags 644n
    • Bus Contitech Air Bags 644n
    • Bus Contitech Air Bags 644n
    • Bus Contitech Air Bags 644n
  • Bus Contitech Air Bags 644n

    Product Details:

    Place of Origin: Guangdong,China
    Brand Name: GUOMAT
    Certification: ISO/TS16949:2009
    Model Number: 1R1A 390 295

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Price: $19-29/pc
    Packaging Details: strong carton box or as customers need
    Delivery Time: 2-8 work days
    Payment Terms: T/T, Western Union,paypal or others
    Supply Ability: 1000pcs/week
    Contact Now
    Detailed Product Description
    Material: Rubber Contitech: 644n
    Natural Outer Diameter: 210 Mm Opening Diameter: 130.8 Mm
    Height: 395 Mm FIRESTONE: 1R1A 390 295
    GOODYEAR: 8017 PHOENIX: 1,00E+021
    High Light:

    air spring bellows

    ,

    air helper springs

    Bus Air Spring Contitech 644n Just Need To Change The Rubber Bellows 1r1a 390 295



    CROSS REFERENCES OEM REFERENCES CROSS REFERENCES OEM REFERENCES
    CONTITECH 644N BPW 02.200.24.40.0
    FIRESTONE 1R1A 390 295 W01 095 0118 BUSSING 536905265
    GOODYEAR 8017 DAF 0 689677
    PHOENIX 1,00E+021 EVO 4.771.143.000
    DUNLOP UK PNP301470101 EVO 4.771.170.000
    DUNLOP FR D11 S01 EVO 4.771.441.000
    CF GOMMA 1S285-24-92574 EVO (MB) A0003270101
    TAURUS BL121 EVO (MB) A3073280001
    TAURUS B121 HANOMAG-HENSCHEL 546905134
      MAGIRUS-DEUTZ 536905265
      MAN 81,43601,0017
      MENARRINI 199196
      MERCEDES-BENZ A0003270101
      NEOPLAN 100110300
      NEOPLAN 100112254
      VAN HOOL 624319-420
      VAN HOOL 624319-610
      VOLVO 1 134445
      VOLVO 1 199893



    Dunlop Part Number
    PNP 30147 01 02
    Contitech Reference
    644 N
    Firestone Style
    1R1A 390-295
    Firestone Reference
    W01 095 0118
    Phoenix
    1 E 21
    Taurus
    BL 121
    Dunlop France
    D11 S01
    Goodyear
    8017
    CF Gomma (Pirelli)
    1 S 285-24
    OEM Applications / Part Numbers
    DAF 0 689 677
    EVO 4.771.170.000
    EVO A 000 327 01 01
    EVO A 307 328 00 01 HANOMAG 546 905 134 KASSBOHRER
    MB TÜRK A 000 327 01 01 MERCEDES
    NEOPLAN 1001 12 254 VAN HOOL 624319-610 VOLVO 1 134 445



    644N Technical parameters



    Minimum height / h min 155 mm



    Maimum height / h ma 415 mm



    Maimum diameter /d ma 300 mm



    Required Space diameter / d R 325 mm



    Natural height / h 275 mm



    Nominal working pressure : 5.0-6.0bar
    maximum working pressure : 7.0bar
    space envelope diameter : 315mm
    maximum height: 420mm
    Assembly height: 170mm - 290mm
    Minimum height: 160mm
    Minimum burst pressure : 18bar
    load capacity (7.0 bar): 2995kg





    644N can fit for the below Vehicle Model:



    Bussing 536 905 265 ( 644 N ) Vehicle : F 76

    DAF 0 689 677 ( 644 N ) Vehicle : SB 2000

    DAF 0 689 677 ( 644 N ) Vehicle : SB 201

    Droeg ( 644 N ) Vehicle : 303 / 9-15

    EVO 4.771.170.000 ( 644 N ) Vehicle : 216 DHS

    EVO 4.771.170.000 ( 644 N ) Vehicle : 228 DT

    EVO 4.771.170.000 ( 644 N ) Vehicle : S 228 DT 6t

    EVO 4.771.170.000 ( 644 N ) Vehicle : S 110

    EVO 4.771.170.000 ( 644 N ) Vehicle : S 12

    EVO 4.771.170.000 ( 644 N ) Vehicle : S 14

    EVO 4.771.170.000 ( 644 N ) Vehicle : S 15 L

    EVO 4.771.170.000 ( 644 N ) Vehicle : S 120 GV/HV

    EVO 4.771.170.000 ( 644 N ) Vehicle : S 125

    EVO 4.771.170.000 ( 644 N ) Vehicle : S 1305

    EVO 4.771.170.000 ( 644 N ) Vehicle : S 140 E/ES/H

    EVO 4.771.170.000 ( 644 N ) Vehicle : S 150 E/H

    EVO 4.771.170.000 ( 644 N ) Vehicle : S 180

    EVO 4.771.170.000 ( 644 N ) Vehicle : S 200

    EVO 4.771.170.000 ( 644 N ) Vehicle : S 209

    EVO 4.771.170.000 ( 644 N ) Vehicle : S 211

    EVO 4.771.170.000 ( 644 N ) Vehicle : S 212

    EVO 4.771.170.000 ( 644 N ) Vehicle : S 210 H/HD

    EVO 4.771.170.000 ( 644 N ) Vehicle : S 213

    EVO 4.771.170.000 ( 644 N ) Vehicle : S 214

    EVO 4.771.170.000 ( 644 N ) Vehicle : S 215

    EVO 4.771.170.000 ( 644 N ) Vehicle : S 216 HSD

    EVO 4.771.170.000 ( 644 N ) Vehicle : SG 175

    EVO 4.771.170.000 ( 644 N ) Vehicle : SG 98

    EVO 4.771.170.000 ( 644 N ) Vehicle : SG 052

    MAN 81436010017

    VOLVO 1134445 - 1622111 - 1199873 - 1590136 - 1199893

    NEOPLAN 100110300

    VAN HOOL 624319610

    DAF 689677 - 696229

    EVO BUS 4771143000 - 4771143000 - A0003280001 - 4771170000

    MERCEDES A0003270101 - A6133270001 - 3073280001 - 3643277001

    IVECO 4714025 - 536905265



    Mode Of Conventional Models



    Contitech Firestone Goodyear Phoenix Dunlop FR CF Gomma Taurus
    661 N W01-095-0021 8018 1E 25 D12S02 1S 310-28 B 114
    644 N W01-095-0118 8017 1E 21 D11S01 1S 285-24 B 121
    662 N W01-095-0207 9007 1E 32 D13S01 1S 360-30 BL 143
    673 N W01-095-0198 9051 1F 21A   1S 285-22 B 141



    Shipping and packing
    Shipment:
    1. Normally, we will deliver the parts within 2-8 work days after payment is received.
    2. We always deliver the air spring by DHL, UPS,FEDEX and TNT.They are all can very quickly to deliver the package to you. If the package is large and heavy, we may send it by sea.

    We will arrange it for you if you have no preference on the express carrier
    Packing:
    Shipping by Air: packed with strong carton box;

    Shipping by Sea: wrapped with water-proof material,pallet and wooden case will be used if necessary.
