| Place of Origin: | GUANGZHOU CHINA(MAIN LAND) |
| Brand Name: | CONTITECH |
| Certification: | ISO/TS16949:2009 |
| Model Number: | CONTITECH 9 10-14 P 345 / 910-14P345 |
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | ＄59 |
| Packaging Details: | CARTON/CARTONS |
| Delivery Time: | 5-10 work days |
| Payment Terms: | T/T, L/C,PayPal |
| Supply Ability: | 1000 |
| TYPE: | ROLLING LOBE AIR SPRING | GUOMAT NUMBER: | 1T910-14P345 |
|---|---|---|---|
| MATERIAL: | NATRAL RUBBER | PACKAGE: | STRONG CARTONS |
| MODEL: | TRUCK | WARRANTY: | 12 MONTHS |
| CONDITION: | NEW | ||
| High Light: | air ride springs,truck air bag suspension |
||

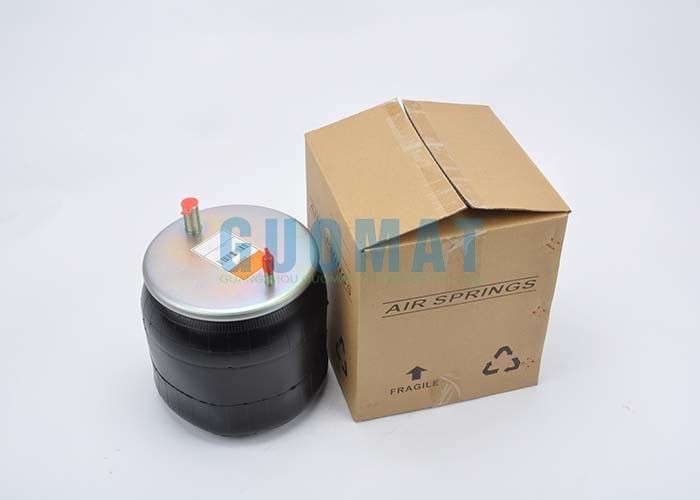

CONTITECH 9 10-14 P 345 AIR SPRING FOR TRIANGLE 8345 6362 - REYCO 12928-01
Product Information
| Type: | Rolling Lobe Air Spring | Guomat No.: | 1T910-14P345 |
| Material: | Natural Rubber | Package: | Strong Cartons |
| Model: | Truck | Warranty: | 12 Months |
| Position: | The Floating Bridge | Place Of Origin: | Guangzhou China(Main Land) |
| Condition:: | New | Situation | With Piston |
OEM REFERENCES
FIRESTONE Bellows Number 1T15M-4 / 1T15M4
FIRESTONE W01-358-9010 / W01 358 9010 / W013589010
CONTITECH 9 10-14 P 345 / 910-14P345
GOODYEAR 1R12-352 / 1R12 352 / 1R12352
GOODYEAR Bellows Number 566-24-3-076 / 566 24 3 076 / 566243076
AIRTECH 132522
Manufacturers Part Number: 1T910-14P345
VEHICLE OEM REFERENCES
HENDRICKSON B 2827
HENDRICKSON S-2827
HENDRICKSON S-11566
REYCO 12928-01
RIDEWELL 1003589010C
TRIANGLE 8345 6362
Triangle Part Number: 8345
Triangle Bellows Number: 6362
WATSON & CHALIN AS-0044
Hendrickson Trailer T-4-392

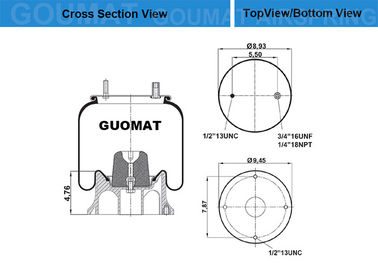

Technical Parameters
Bolt or Stud 1/2-13
Threaded Hole 3/8-16 Blind Nut on Bead Plates 1/2-13 in Pistons
Air Inlet 1/4 N.P.T
Combination Stud/Air Inlet Stud Outside Thread is 3/4-16
Studs Inside Thread (Air Inlet) is 1/4 N.P.T
Alternative
Firestone Top Plate Number: 3235
Firestone Piston Number: 9727
Extended Height: 18.00
Compressed Height: 7.10
Top Plate Width: 9.00
Piston Width: 9.50
Other kinds we can produce:
Style 1T15M-4 Two Ply Bellows
W01-358-8816；
W01-358-9011；
W01-358-8802；
W01-358-8806；
W01-358-8813；
W01-358-9059；
W01-358-9063；
W01-358-9936；
W01-358-9070；
W01-358-9467；
W01-358-9463；
W01-358-9482；
W01-358-9483；
W01-358-9507；
W01-358-9697；
W01-358-9798；
W01-358-9797
Blind nuts, 1/4 NPT:W01-M58-6284;W01 M58 6284;W01-M58-6284
Blind nuts, 1/4 NPT, bumper:W01-M58-6283;W01 M58-6283;W01-M58-6283
Blind nuts, 3/4 NPT, :W01-M58-6280;W01 M58 6280;W01-M58-6280
Blind nuts, 3/4 NPT ,bumper:W01-M58-6281;W01 M58 6281;W01-M58-6281
ABOUT US...
Guangzhou Guomat Air Spring CO., Ltd.is located in Guangzhou, about 15min’s drive from BAIYUN AIRPORT.Our mainly products air spring, rubber bellow, air suspension compressor and refitted suspension system.They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.
Our goal is to make your choice easier and save your money. We serve customers world-wide by offering qualitygoods at unbeatable prices, all while maintaining a focus on superior customer service. PLEASE FEEL FREE TO ASKANY QUESTIONS. All questions will be answered promptly (usually in less than 24 hours except weekends and holidays)
Give us your trust and we'll help you to repair or update your car!
The warranty period of Air Spring
GUOMAT air spring made of high quality materials(natural rubber), the warranty period of One Year.
Our air spring provide high performance and dynamics while ensuring perfect grip and maximum driving comfort in any case. In addition to improving the stability of the vehicle, they can reduce the number of vibratory movements due to road defects to optimize the comfort of passengers and allow you to ride smoothly.
Our dampers are designed to provide excellent ride quality by quickly adjusting to different road and vehicle conditions while providing ultimate safety and functionality.
