9 10-17.5 P 429 Truck Spare Parts Air Spring FOR BRAKE AND WHEEL M-3548 HALDEX CS112481

9 10-17.5 P 429 Truck Spare Parts Air Spring FOR BRAKE AND WHEEL M-3548 HALDEX CS112481

  • 9 10-17.5 P 429 Truck Spare Parts Air Spring FOR BRAKE AND WHEEL M-3548 HALDEX CS112481
  • 9 10-17.5 P 429 Truck Spare Parts Air Spring FOR BRAKE AND WHEEL M-3548 HALDEX CS112481
  • 9 10-17.5 P 429 Truck Spare Parts Air Spring FOR BRAKE AND WHEEL M-3548 HALDEX CS112481
9 10-17.5 P 429 Truck Spare Parts Air Spring FOR BRAKE AND WHEEL M-3548 HALDEX CS112481
Product Details:
Place of Origin: GUANGZHOU CHINA(MAIN LAND)
Brand Name: CONTITECH
Certification: ISO/TS16949:2009
Model Number: 9 10-17.5 P 429 / 910-17.5P429 / 910-17.5 P429
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: $59

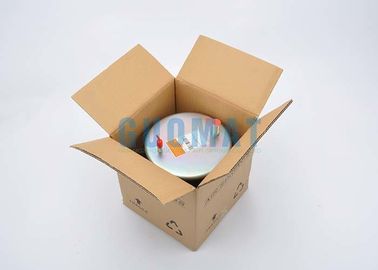

Packaging Details: CARTON/CARTONS
Delivery Time: 5-10 work days
Payment Terms: T/T, L/C,PayPal
Supply Ability: 1000
Contact Now
Detailed Product Description
TYPE: ROLLING LOBE AIR SPRING GUOMAT NUMBER: 1T910-17.5P429
MATERIAL: NATRAL RUBBER PACKAGE: STRONG CARTONS
MODEL: TRUCK WARRANTY: 12 MONTHS
CONDITION: NEW
High Light:

air ride springs

,

truck air bag suspension

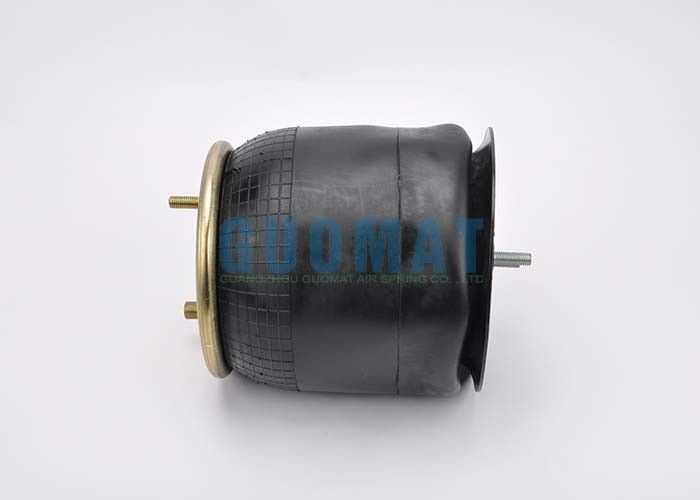

CONTITECH 9 10-17.5 P 429 TRUCK AIR SPRING FOR BRAKE AND WHEEL M-3548 -- HALDEX CS112481





Product Information



GUOMAT NO. : 1T910-17.5P429

VEHICLE TYPE: Truck

POSITION: The Floating Bridge





OEM REFERENCES



FIRESTONE Bellows Number 1T15M-8 / 1T15M 8 / 1T15M8

Firestone Bellows Number:1T15M-7.5 / (1T15M-8)

FIRESTONE Part Number W01-358-9923 / W01 358 9923 / W013589923

CONTITECH Part Number 9 10-17.5 P 429 / 910-17.5P429 / 910-17.5 P429

GOODYEAR Part Number 1R12-481 / 1R12481 / 1R12 481

Goodyear 1R12-533 / 1R12 533 / 1R12533

Goodyear 1R12-910 / 1R12 910 / 1R12910

GOODYEAR Bellows Number 566-24-3-097 / 566 24 3 097 / 566243097

Manufacturers Part Number:1T910-17.5P429

Goodyear 566243111



VEHICLE OEM REFERENCES



TRIANGLE: 8429 6391

Holland (Neway) Number: 905-57-118

Triangle Part Number: 8429

Triangle Bellows Number: 6391

Neway: 90557118

Brake And Wheel: M-3548

Batco: 10-99923

Automann: AB1DK23P-9923

Haldex; CS112481

Euclid: E-FS9923

Euclid: FS9923

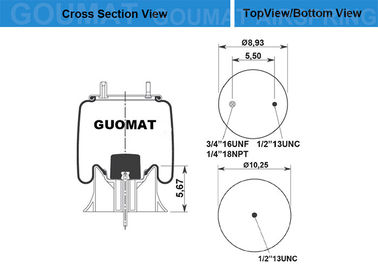

Technical Parameters



CONTITECH 64278

Top Plate Number: 3235

Piston Number: 9532

Extended Height: 22.50

Compressed Height: 7.40

Top Plate Width: 9.00

Piston Width: 10.25

Bolt or Stud 1/2-13

Threaded Hole 3/8-16 Blind Nut on Bead Plates 1/2-13 in Pistons

Air Inlet 1/4 N.P.T.

Combination Stud/Air Inlet Stud Outside Thread is 3/4-16

Studs Inside Thread (Air Inlet) is 1/4 N.P.T





Air Bag Fits



Air Bag: 9923 1T15M-7.5, 3235, 9532, NAD-29827, 566-24-3-097, 566-20-7-235, ASA-92-8-164.





ABOUT US...



  Guangzhou Guomat Air Spring CO., Ltd.is located in Guangzhou, about 15min’s drive from BAIYUN AIRPORT.Our mainly products air spring, rubber bellow, air suspension compressor and refitted suspension system.They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.
  Our goal is to make your choice easier and save your money. We serve customers world-wide by offering qualitygoods at unbeatable prices, all while maintaining a focus on superior customer service. PLEASE FEEL FREE TO ASKANY QUESTIONS. All questions will be answered promptly (usually in less than 24 hours except weekends and holidays)
  Give us your trust and we'll help you to repair or update your car!





The warranty period of Air Spring



  GUOMAT air spring  made of high quality materials(natural rubber), the warranty period of One Year.

  Our air spring provide high performance and dynamics while ensuring perfect grip and maximum driving comfort in any case. In addition to improving the stability of the vehicle, they can reduce the number of vibratory movements due to road defects to optimize the comfort of passengers and allow you to ride smoothly.

  Our dampers are designed to provide excellent ride quality by quickly adjusting to different road and vehicle conditions while providing ultimate safety and functionality.
