|TYPE:||ROLLING LOBE AIR SPRING||GUOMAT NUMBER:||1T910-18.5P406|
|MATERIAL:||NATRAL RUBBER||PACKAGE:||STRONG CARTONS|

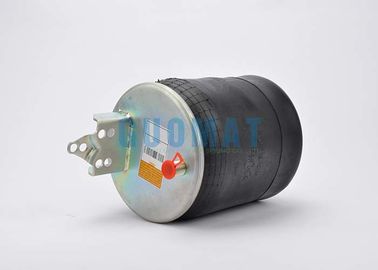

CONTITECH 9 10-18.5 P 406 AIR SPRING FOR HENDRICKSON 50405 -- TRIANGLE 8406
GUOMAT NO. : 1T910-18.5P406
VEHICLE TYPE: Truck
POSITION: The Floating Bridge
1T15MT-8 / 1T15MT 8 / 1T15MT8
W01-358-9287 / W01 358 9287 / W013589287
9 10-18.5 P 406 / 910-18.5P406 / 9 10-18.5 P 406
1R12-424 / 1R12 424 / 1R12424
566-24-3-097 / 566 24 3 097 / 566243097
GOODYEAR 1S12-027 / 1S12 027 / 1S12027
566-24-1-012 / 566 24 1 012 / 566241012
GOODYEAR BELLOWS NUMBER
566-24-1-001 / 566 24 1 001 / 566241001
566-24-1-240 / 566 24 1 240 / 566241240
566-24-3-077 / 566 24 3 077 / 566243077
566-24-3-225 / 566 24 3 225 / 566243225
VEHICLE OEM REFERENCES
TRIANGLE 8406 6391
Triangle Part Number: 8406
Triangle Bellows Number: 6391
Top Plate Number 3313
Piston Number 9561

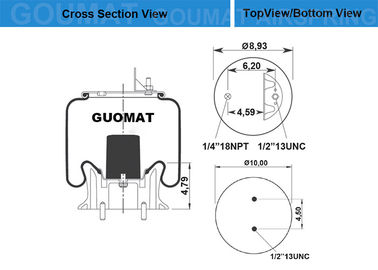

Extended Height: 22.00
Compressed Height: 8.10
Top Plate Width: 9.00
Piston Width: 10.00
Bolt or Stud 1/2-13
Threaded Hole 3/8-16 Blind Nut on Bead Plates 1/2-13 in Pistons
Air Inlet 1/4 N.P.T
Combination Stud/Air Inlet Stud Outside Thread is 3/4-16
Studs Inside Thread (Air Inlet) is 1/4 N.P.T.
Guangzhou Guomat Air Spring CO., Ltd.is located in Guangzhou, about 15min’s drive from BAIYUN AIRPORT.Our mainly products air spring, rubber bellow, air suspension compressor and refitted suspension system.They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.
Our goal is to make your choice easier and save your money. We serve customers world-wide by offering qualitygoods at unbeatable prices, all while maintaining a focus on superior customer service. PLEASE FEEL FREE TO ASKANY QUESTIONS. All questions will be answered promptly (usually in less than 24 hours except weekends and holidays)
Give us your trust and we'll help you to repair or update your car!
The warranty period of Air Spring
GUOMAT air spring made of high quality materials(natural rubber), the warranty period of One Year.
Our air spring provide high performance and dynamics while ensuring perfect grip and maximum driving comfort in any case. In addition to improving the stability of the vehicle, they can reduce the number of vibratory movements due to road defects to optimize the comfort of passengers and allow you to ride smoothly.
Our dampers are designed to provide excellent ride quality by quickly adjusting to different road and vehicle conditions while providing ultimate safety and functionality.
