| Place of Origin: | GUANGZHOU CHINA(MAIN LAND) |
| Brand Name: | CONTITECH |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 9 10-18.5 P 456 / 910-18.5P456 / 910 18.5P456 |
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | ＄59 |
| Packaging Details: | CARTON/CARTONS |
| Delivery Time: | 5-10 work days |
| Payment Terms: | T/T, L/C,PayPal |
| Supply Ability: | 1000 |
| TYPE: | ROLLING LOBE AIR SPRING | GUOMAT NUMBER: | 1T910-18.5P456 |
|---|---|---|---|
| MATERIAL: | NATRAL RUBBER | PACKAGE: | STRONG CARTONS |
| MODEL: | TRUCK | WARRANTY: | 12 MONTHS |
| CONDITION: | NEW | ||
| High Light: | air ride springs,firestone air springs |
||

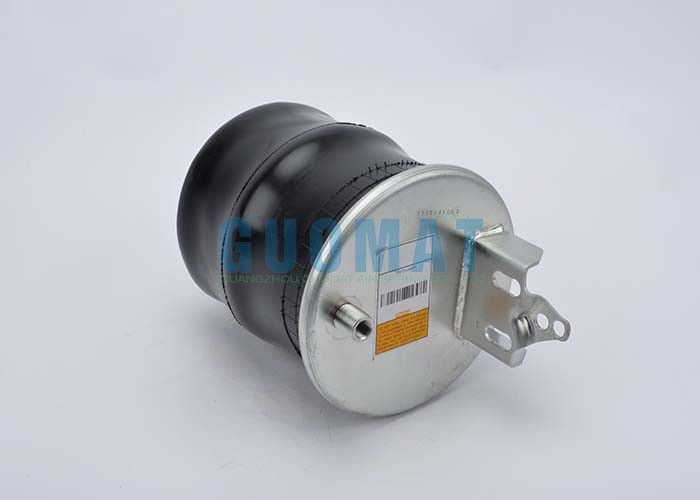

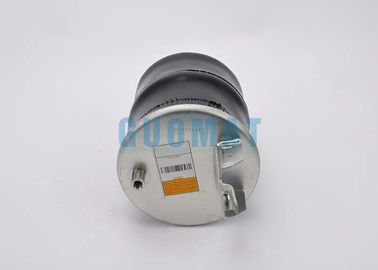

FIRESTONE 910 18.5P456 AIR BAG FOR TRUCK Navistar 2027911C-2
Product Information
GUOMAT NO. : 1T910-18.5P456
VEHICLE TYPE: Truck
POSITION: The Floating Bridge
OEM REFERENCES
FIRESTONE 1T15MT-8 / 1T15MT 8 / 1T15MT8
W01-358-9648 / W01 358 9648 / W013589648
CONTITECH 9 10-18.5 P 456 / 910-18.5P456 / 910 18.5P456
GOODYEAR 1R12-538 / 1R12 538 / 1R12538
GOODYEAR REPLACE 1R12-398 / 1R12 398 / 1R12398
566-24-3-038 / 566 24 3 038 / 566243038
VEHICLE OEM REFERENCES
NAVISTAR 2027911C1 & C2
Navistar Number 2027911C-1
Navistar Number 2027911C-2

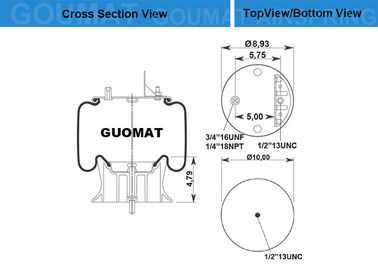

Technical Parameters
Top Plate Number 3315
Piston Number 4008Extended Height: 22.00
Compressed Height: 5.90
Top Plate Width: 9.00
Piston Width: 10.00
Bolt or Stud 1/2-13
Threaded Hole 3/8-16 Blind Nut on Bead Plates 1/2-13 in Pistons
Air Inlet 1/4 N.P.T
Combination Stud/Air Inlet Stud Outside Thread is 3/4-16
Studs Inside Thread (Air Inlet) is 1/4 N.P.T.
| Top plate diameter | Top plate installation type |
| 9.00 | Bracket and air inlet |
| Piston diameter | Number of studs on top plate |
| 10.00 | 1 |
| Bellows diameter | Height of top plate stud |
| 10.12 | 1.35 |
| Piston height | The distance between the bracket installation and the air inlet |
| 4.65 | 5.75 |
| Piston material | Piston installation type |
| Synthetic | Stud |
| Maximum extension height | Piston stud quantity |
| 19.65 | 1 |
| Minimum compression height | With inner bumper |
| 5.90 | No |
| Inlet type | Number of bellows |
| male | 1T15XNR5 |
| Inlet height | |
| 1.35 |
