Heavy Duty Air Bags / 910BP-22P739 Truck Air Springs HENDRICKSON AA250L -- TRIANGLE 6421

Heavy Duty Air Bags / 910BP-22P739 Truck Air Springs HENDRICKSON AA250L -- TRIANGLE 6421

  • Heavy Duty Air Bags /  910BP-22P739 Truck Air Springs HENDRICKSON AA250L  -- TRIANGLE 6421
  • Heavy Duty Air Bags /  910BP-22P739 Truck Air Springs HENDRICKSON AA250L  -- TRIANGLE 6421
  • Heavy Duty Air Bags /  910BP-22P739 Truck Air Springs HENDRICKSON AA250L  -- TRIANGLE 6421
  • Heavy Duty Air Bags /  910BP-22P739 Truck Air Springs HENDRICKSON AA250L  -- TRIANGLE 6421
  • Heavy Duty Air Bags /  910BP-22P739 Truck Air Springs HENDRICKSON AA250L  -- TRIANGLE 6421
Heavy Duty Air Bags /  910BP-22P739 Truck Air Springs HENDRICKSON AA250L  -- TRIANGLE 6421
Product Details:
Place of Origin: GUANGZHOU CHINA(MAIN LAND)
Brand Name: CONTITECH
Certification: ISO/TS16949:2009
Model Number: 9 10BP-22 P 739 / 910BP-22P739 / 910BP 22P739
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: $59
Packaging Details: CARTON/CARTONS
Delivery Time: 5-10 work days
Payment Terms: T/T, L/C,PayPal
Supply Ability: 1000
Contact Now
Detailed Product Description
TYPE: ROLLING LOBE AIR SPRING GUOMAT NUMBER: 1T910BP-22P739
MATERIAL: NATRAL RUBBER PACKAGE: STRONG CARTONS
MODEL: TRUCK WARRANTY: 12 MONTHS
CONDITION: NEW SITUATION: WITH PISTON
High Light:

air ride springs

,

firestone air springs

FIRESTONE  910BP-22P739 AIR BAG FOR TRUCK HENDRICKSON AA250L  -- TRIANGLE 6421





Product Information



GUOMAT NO. :1T910BP-22P739

VEHICLE TYPE: Truck

POSITION: The Floating Bridge





OEM REFERENCES



FIRESTONE

1T15MBTW-12 / 1T15MBTW 12 / 1T15MBTW12

W01-358-9645 / W01 358 9645 / W013589645

CONTITECH

9 10BP-22 P 739 / 910BP-22P739 / 910BP 22P739





VEHICLE OEM REFERENCES



HENDRICKSON S23612 / S-23612

HENDRICKSON AA250L

TRIANGLE 8564 6421

TRIANGLE 8564

TRIANGLE 6421

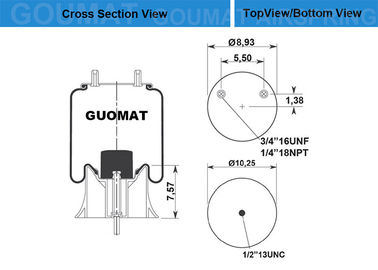

Technical Parameters



T Top Plate Number 3306

Piston Number 9540

Extended Height: 28.50

Compressed Height: 9.20

Top Plate Width: 9.00

Piston Width: 10.25

Bolt or Stud 1/2-13

Threaded Hole 3/8-16 Blind Nut on Bead Plates 1/2-13 in Pistons

Air Inlet 1/4 N.P.T

Combination Stud/Air Inlet Stud Outside Thread is 3/4-16

Studs Inside Thread (Air Inlet) is 1/4 N.P.T



Air spring type Inlet height
Reversible air spring 1.57
Top plate diameter Top plate installation type
9.00 Air inlet
Piston diameter Air intake
10.25 2
Bellows diameter Air inlet distance
10.12 5.50
Piston height Number of studs on top plate
7.57 1
Piston material Height of top plate stud
Synthetic 1.57
Maximum extension height The distance between the top plate stud and the air inlet
28.50 5.50
Minimum compression height Piston installation type
9.20 Stud
Inlet type Piston stud quantity
male 1
Number of bellows With inner bumper
1T15MBTW12 Yes





ABOUT US...



  Guangzhou Guomat Air Spring CO., Ltd.is located in Guangzhou, about 15min’s drive from BAIYUN AIRPORT.Our mainly products air spring, rubber bellow, air suspension compressor and refitted suspension system.They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.
  Our goal is to make your choice easier and save your money. We serve customers world-wide by offering qualitygoods at unbeatable prices, all while maintaining a focus on superior customer service. PLEASE FEEL FREE TO ASKANY QUESTIONS. All questions will be answered promptly (usually in less than 24 hours except weekends and holidays)
  Give us your trust and we'll help you to repair or update your car!





The warranty period of Air Spring



  GUOMAT air spring  made of high quality materials(natural rubber), the warranty period of One Year.

  Our air spring provide high performance and dynamics while ensuring perfect grip and maximum driving comfort in any case. In addition to improving the stability of the vehicle, they can reduce the number of vibratory movements due to road defects to optimize the comfort of passengers and allow you to ride smoothly.

  Our dampers are designed to provide excellent ride quality by quickly adjusting to different road and vehicle conditions while providing ultimate safety and functionality.
