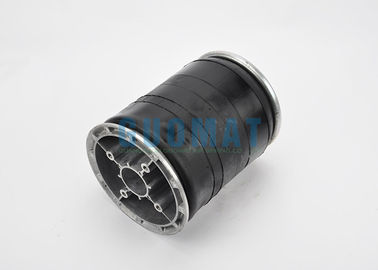

Aluminum Piston 4811 N P03 TRUCK AIR BAG FOR HENDRICKSON 36514-2 - EUCLID E-FS9122

Aluminum Piston 4811 N P03 TRUCK AIR BAG FOR HENDRICKSON 36514-2 - EUCLID E-FS9122

  • Aluminum Piston 4811 N P03 TRUCK AIR BAG FOR HENDRICKSON 36514-2 - EUCLID E-FS9122
  • Aluminum Piston 4811 N P03 TRUCK AIR BAG FOR HENDRICKSON 36514-2 - EUCLID E-FS9122
  • Aluminum Piston 4811 N P03 TRUCK AIR BAG FOR HENDRICKSON 36514-2 - EUCLID E-FS9122
  • Aluminum Piston 4811 N P03 TRUCK AIR BAG FOR HENDRICKSON 36514-2 - EUCLID E-FS9122
Aluminum Piston 4811 N P03 TRUCK AIR BAG FOR HENDRICKSON 36514-2 - EUCLID E-FS9122
Product Details:
Place of Origin: GUANGZHOU CHINA(MAIN LAND)
Brand Name: CONTITECH
Certification: ISO/TS16949:2009
Model Number: 11 10.5-21 A 313 / 1110.5-21A313 / 11 10.5-21 A 313
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: $59
Packaging Details: CARTON/CARTONS
Delivery Time: 5-10 work days
Payment Terms: T/T, L/C,PayPal
Supply Ability: 1000
Contact Now
Detailed Product Description
TYPE: ROLLING LOBE AIR SPRING GUOMAT NUMBER: 1T4811NP03
MATERIAL: NATRAL RUBBER PACKAGE: STRONG CARTONS
MODEL: TRUCK WARRANTY: 12 MONTHS
CONDITION: NEW
High Light:

air ride springs

,

truck air bag suspension

CONTITECH 4811 N P03 TRUCK AIR BAG FOR HENDRICKSON 36514-2 - EUCLID E-FS9122





Product Information



GUOMAT NO. : 1T4811NP03

VEHICLE TYPE: Truck

POSITION: The Floating Bridge

PISTON : With Piston





OEM REFERENCES



FIRESTONE 1T19F-11 / 1T19F 11 / 1T19F11

W01-358-8792 / W01 358 8792 / W013588792

CONTITECH 11 10.5-21 A 313 / 1110.5-21A313 / 11 10.5-21 A 313

GOODYEAR 1R14-045 / 1R14 045 / 1R14045

GOODYEAR 1R13-038 / 1R13 038 / 1R13038

566-26-3-072 / 566 26 3 072 / 566263072

CONTITECH 4811 N P03 / 4811NP03 / 4811 N P03

PHOENIX 1DK28B-7 E2 / 1DK28B7E2 / 1DK28B-7 E2

TAURUS KR 622-9122

Firestone Bellows Number:1T19F-11 or 1T19L-11

Note:Aluminum version of W01-358-9122

Manufacturers Part Number:W01-358-8792





VEHICLE OEM REFERENCES



HENDRICKSON 36514-2

HENDRICKSON 36514-8

HENDRICKSON 506003

HENDRICKSON B 3467

NEWAY 905 57 076/077

NEWAY 905.57.077

WESTAR PART 87-79122

EUCLID PART E-FS9122

AUTOMANN PART 1D28C-9122





Technical Parameters



Top Plate Number:3388

Piston Number:9580

Extended Height:27.30

Compressed Height: 8.70

Top Plate Width:11.31

Piston Width:10.30

Assembly Weight: 24.7 lbs

Design Height: 14.5-18.5 inches

Minimum Jounce Height: 8.88 inches

Maximum Diameter: 13.7 inches

Material Type: Natural Rubber

 screw bolt / Stud

Top Cover Plate screw bolt / Stud Tooth :1 pcs 1/2-13UNC

Combine bolt : 1 pcs 3/4-16UNF

Gas Hole / Air inlet /Air Fitting

Gas Hole / Air inlet : 1/4NPT

Cover Plate

Top Cover Plate Diameter: ?289 mm

Rubber Bellows

Rubber Bellows Natural Diameter: 320 mm

Min Height :240 mm

MAX Height : 660 mm

The stroke : 420 mm

Bumper block / Buffer block

Bumper Block height :41mm

Bottom Piston

Aluminum Piston

Bottom Piston Diameter : 263mm

Bottom Piston Height :178 mm

Piston Bolt

Piston Bolt Tooth : 4X1/2-13UNC

4 pieces of Bolt

Middle inside between center Bolt : 200 mm





ABOUT US...



Guangzhou Guomat Air Spring CO., Ltd.is located in Guangzhou, about 15min’s drive from BAIYUN AIRPORT. Our mainly products air spring, rubber bellow, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.
Our goal is to make your choice easier and save your money. We serve customers world-wide by offering quality goods at unbeatable prices, all while maintaining a focus on superior customer service. PLEASE FEEL FREE TO ASKANY QUESTIONS. All questions will be answered promptly (usually in less than 24 hours except weekends and holidays)
Give us your trust and we'll help you to repair or update your car!





The warranty period of Air Spring



GUOMAT air spring made of high quality materials(natural rubber), the warranty period of One Year.

Our air spring provides high performance and dynamics while ensuring perfect grip and maximum driving comfort in any case. In addition to improving the stability of the vehicle, they can reduce the number of vibratory movements due to road defects to optimize the comfort of passengers and allow you to ride smoothly.

Our dampers are designed to provide excellent ride quality by quickly adjusting to different road and vehicle conditions while providing ultimate safety and functionality.
