1003589096C Ridewell Truck Air Springs Contitech 9 10-16 P 325 For TEC 507505

1003589096C Ridewell Truck Air Suspension Spring Bag Contitech 9 10-16 P 325 For TEC 507505

Product Information

GUOMAT NO. : 1T9096

Vehicle Type: Truck

Positon: The Floating Bridge

OEM Reference

Contitech 9 10-16 P 325
Firestone 1T15M-6 W01 358 9096
Airtech 34156-12 K 133242
Firestone Style 1T15M-6
Firestone No. W01-358-9096
FleetPride AS9096
Goodyear 1R12-358
Goodyear 1R12-155
Goodyear Flex No. 566243038
Taurus 6363
Triangle AS-8325
TRP AS90960
Automann 1DK23K-9096

Vehicle OEM Reference

Pruehauf UCE 1304
TEC 507505
Dayton 352-9096
Fruehauf UCE-1304-1
Hendrickson S-13049
Loadguard SC2051
Loadguard SC2765
SAF Holland 57009096
Taurus AS504-9096
Navistar/Fleetrite 554771C1
Ridewell 1003589096C

Technical Parameters

Weight 15 lb
Psiton No. 9308133
Torques 1/4-18 NPTF: max. 22 lbf ft
              3/8-16 UNC: max. 20 lbf ft
              1/2-13 UNC: max. 35 lbf ft

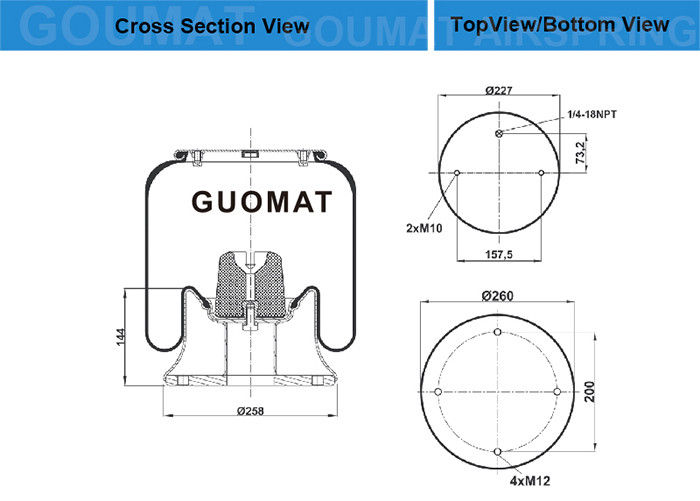

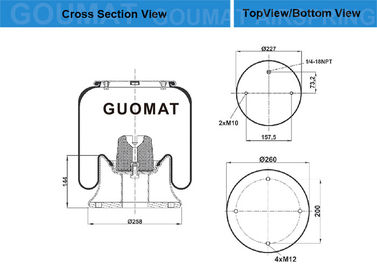

1.Top Cover Plate

Screw Bolt / Stud Tooth :2 pcs :M10

Distance Between Two Stud :157.5mm

Gas Hole / Air inlet : 1/4-18NPT

Top Cover Plate Diameter: Ø227 mm

Distance Between Air inlet and Stud: 73.2 mm

2.Piston

Screw Bolt / Stud Tooth :4 pcs :M12

Distance Between Two Stud :200mm

Piston Diameter: Ø260 mm

About Us...

Guangzhou Guomat Air Spring CO., Ltd.is located in Guangzhou, about 15min’s drive from BAIYUN AIRPORT. Our mainly products air spring, rubber bellow, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.
Our goal is to make your choice easier and save your money. We serve customers world-wide by offering quality goods at unbeatable prices, all while maintaining a focus on superior customer service. PLEASE FEEL FREE TO ASKANY QUESTIONS. All questions will be answered promptly (usually in less than 24 hours except weekends and holidays)
Give us your trust and we'll help you to repair or update your car!

The Warranty Period of Air Spring

GUOMAT air spring made of high quality materials(natural rubber), the warranty period of One Year.

Our air spring provides high performance and dynamics while ensuring perfect grip and maximum driving comfort in any case. In addition to improving the stability of the vehicle, they can reduce the number of vibratory movements due to road defects to optimize the comfort of passengers and allow you to ride smoothly.

Our dampers are designed to provide excellent ride quality by quickly adjusting to different road and vehicle conditions while providing ultimate safety and functionality.
