|Type:||Rolling Air Spring||GUOMAT NO.:||1T9229|
|Material:||Natural Rubber||Package:||Strong Carton|
M00 557 002 Neway Truck Air Spring Bag Contitech 4156 N P05**CPL SMB Service Assembly
GUOMAT NO. : 1T9229
Vehicle Type: Truck
Positon: The Floating Bridge
Contitech 4156 N P05**CPL
Firestone 1T15M-6 W01-M58-9229
Primeride 54156 A P05
Springride Flex 566-24-3-502
Firestone Style 1T15M-6
Firestone No. W01-358-0734
Goodyear Flex No. 566-24-3-502
Gart Ref. D278/G
Gart No. 278.0.421
Neotec ABM 222 32 A
Airtech Ref. 34156 P
Airtech No. 120402
Prime-Ride New 1R12-842
Prime-Ride New Flex No. 566-24-3-502
Vehicle OEM Reference
NEWAY M00 557 002
SMB Service Assembly

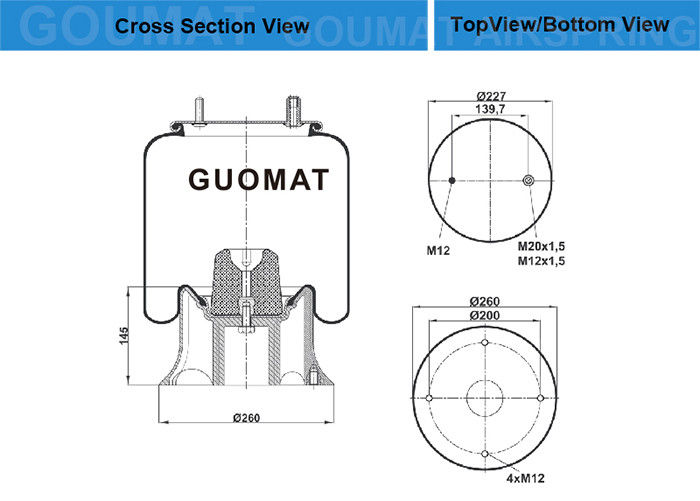

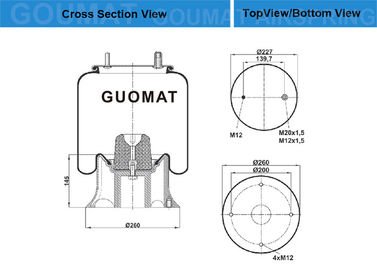

1.Top Cover Plate
Screw Bolt / Stud Tooth :1 pcs :M12
Gas Hole / Air inlet : M20X1.5 , M12X1.5
Top Cover Plate Diameter: Ø227 mm
Distance Between Air inlet and Stud: 139.7 mm
Screw Bolt / Stud Tooth :4 pcs :M12
Distance Between Two Stud :200mm
Piston Diameter: Ø260 mm
Piston Height: 145 mm
Guangzhou Guomat Air Spring CO., Ltd.is located in Guangzhou, about 15min’s drive from BAIYUN AIRPORT. Our mainly products air spring, rubber bellow, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.
Our goal is to make your choice easier and save your money. We serve customers world-wide by offering quality goods at unbeatable prices, all while maintaining a focus on superior customer service. PLEASE FEEL FREE TO ASKANY QUESTIONS. All questions will be answered promptly (usually in less than 24 hours except weekends and holidays)
Give us your trust and we'll help you to repair or update your car!
The Warranty Period of Air Spring
GUOMAT air spring made of high quality materials(natural rubber), the warranty period of One Year.
Our air spring provides high performance and dynamics while ensuring perfect grip and maximum driving comfort in any case. In addition to improving the stability of the vehicle, they can reduce the number of vibratory movements due to road defects to optimize the comfort of passengers and allow you to ride smoothly.
Our dampers are designed to provide excellent ride quality by quickly adjusting to different road and vehicle conditions while providing ultimate safety and functionality.
