Natural Rubber 488263 ​Scania Truck Spring Air Bags 1R11-833 For 1440303 / 1475106 / 1521114

China Natural Rubber 488263 ​Scania Truck Spring Air Bags 1R11-833 For 1440303 / 1475106 / 1521114 supplier

Large Image :  Natural Rubber 488263 ​Scania Truck Spring Air Bags 1R11-833 For 1440303 / 1475106 / 1521114

Product Details:

Place of Origin: Guangzhou,China(Main Land)
Brand Name: Goodyear
Certification: ISO/TS16949:2009
Model Number: 1R11-833/ 1R11-755/ 566-22-3-547/ 566-22-3-115

Payment & Shipping Terms:

Minimum Order Quantity: 1 PCS
Price: $69
Packaging Details: Carton/Cartons
Delivery Time: 3-10 work days
Payment Terms: T/T, L/C,PayPal
Supply Ability: 1000
Contact Now
Detailed Product Description
Type: Rolling Air Spring GUOMAT NO.: 1T1440303
Material: Natural Rubber Package: Strong Carton
Model: Truck Warranty: 12 Months
Condition: New Piston: With Piston

488263 ​Scania  Truck Air Suspension Spring Bag Goodyear 1R11-833 For 1440303/1475106/1521114





Product Information



GUOMAT NO. : 1T1440303

Vehicle Type: Truck

Positon: The Floating Bridge





Reference



OEM Reference Vehicle Reference
Aietech 331114 K, 135202

Scania 488263

Springride  1R11-833 Scania 1440303
Springride  1R11-755 Scania 1475106
Springride Flex   566-22-3-547 Scania 1521114
Springride Flex   566-22-3-115
Goodyear   1R11-833
Goodyear   1R11-755
Goodyear Flex No. 566-22-3-547
Goodyear Flex No. 566-22-3-115
Gart Ref. D297/A
Gart No. 297.2.315
Neotec ABM 224 28 B 06
Blacktech RML70303C
Airtech Ref. 331114 C
Airtech No. 135202
Prime-Ride New 1R11-833
Prime-Ride New Flex No. 566-22-3-547
Prime-Ride New 1R11-755
Prime-Ride New Flex No. 566-22-3-115
Firestone Style 1T15L-4
 Firestone No. W01-095-0422

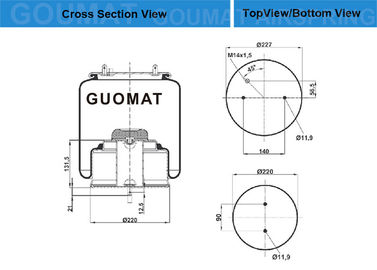

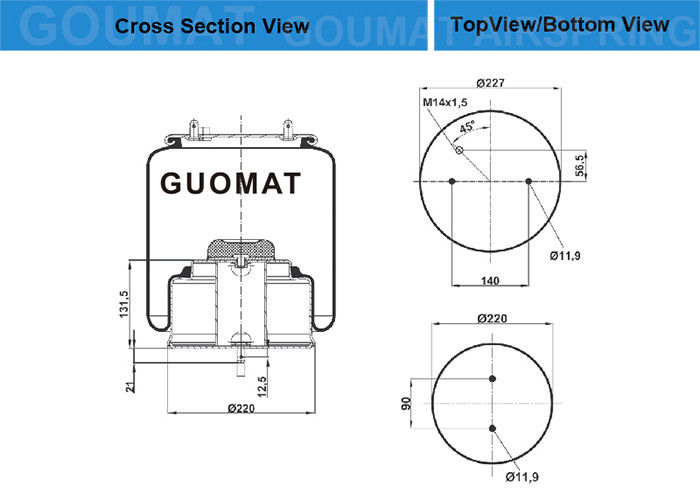

Technical Parameters



1.Top Cover Plate



Screw Bolt / Stud Tooth :2 pcs :

Gas Hole / Air inlet :M14X1.5

Top Cover Plate Diameter: Ø227 mm

Distance Between Air inlet and Stud: 56.5 mm

Distance Between Two Stud: 140 mm



2.Piston



Piston Diameter: Ø220 mm

Piston Height: 131.5  mm

Distance Between Two Stud: 90 mm





3.

Weight 7.6 kg
Screw kit K031
Torques M14x1.5: max. 20 Nm





About Us...



Guangzhou Guomat Air Spring CO., Ltd.is located in Guangzhou, about 15min’s drive from BAIYUN AIRPORT. Our mainly products air spring, rubber bellow, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.
Our goal is to make your choice easier and save your money. We serve customers world-wide by offering quality goods at unbeatable prices, all while maintaining a focus on superior customer service. PLEASE FEEL FREE TO ASKANY QUESTIONS. All questions will be answered promptly (usually in less than 24 hours except weekends and holidays)
Give us your trust and we'll help you to repair or update your car!





The Warranty Period of Air Spring



GUOMAT air spring made of high quality materials(natural rubber), the warranty period of One Year.

Our air spring provides high performance and dynamics while ensuring perfect grip and maximum driving comfort in any case. In addition to improving the stability of the vehicle, they can reduce the number of vibratory movements due to road defects to optimize the comfort of passengers and allow you to ride smoothly.

Our dampers are designed to provide excellent ride quality by quickly adjusting to different road and vehicle conditions while providing ultimate safety and functionality.



Natural Rubber 488263 ​Scania Truck Spring Air Bags 1R11-833 For 1440303 / 1475106 / 1521114
