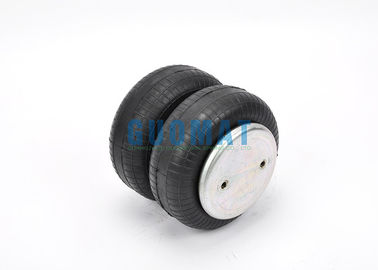

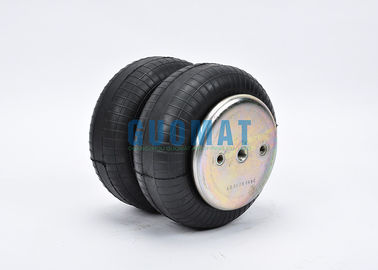

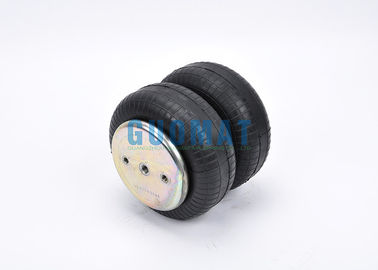

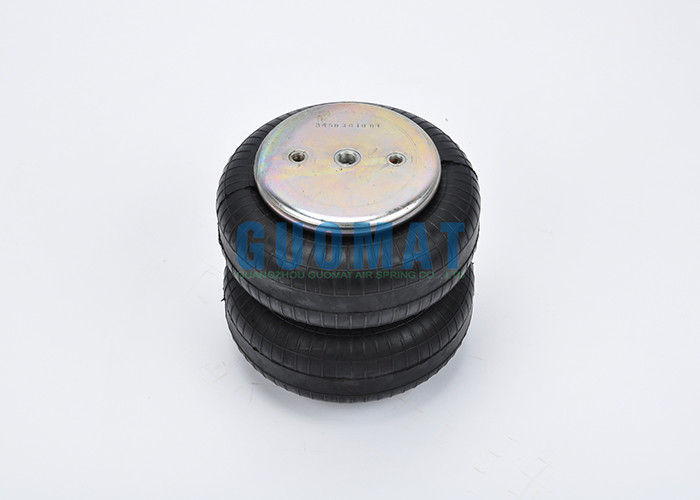

FD 120-20 CI Double Convolution Air Actuator For Mack 227QS32 Truck / Car Suspension Springs

FD 120-20 CI Double Convolution Air Actuator For Mack 227QS32 Truck / Car Suspension Springs

    • FD 120-20 CI Double Convolution Air Actuator For Mack 227QS32 Truck / Car Suspension Springs
    • FD 120-20 CI Double Convolution Air Actuator For Mack 227QS32 Truck / Car Suspension Springs
    • FD 120-20 CI Double Convolution Air Actuator For Mack 227QS32 Truck / Car Suspension Springs
    • FD 120-20 CI Double Convolution Air Actuator For Mack 227QS32 Truck / Car Suspension Springs
  • FD 120-20 CI Double Convolution Air Actuator For Mack 227QS32 Truck / Car Suspension Springs

    Product Details:

    Place of Origin: China
    Brand Name: GUOMAT
    Certification: ISO/TS16949:2009
    Model Number: 2B12020

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Packaging Details: strong carton box or as customers need
    Delivery Time: 2-8 work days
    Payment Terms: T/T, Western Union,Paypal or Others
    Supply Ability: 1000pcs/week
    Contact Now
    Detailed Product Description
    Material: Steel And Rubber CONTITECH: FD 120-20
    Warranty: 12 Months Weight: 2.3 Kg
    Other Name: Air Springs For Industry Pressure Ability: 0.2-0.8 M Pa
    Air Inlet: 1/4 NPT Order No.: 62448
    High Light:

    convoluted air spring

    ,

    air helper springs

    FD 120-20 CI Double Convolution Air Actuator For Mack 227QS32 Truck Suspension Spring​





    OEM Original Equipment Manufacturer:



    BELLOW NO. COMPLETE NO. COMPLETE NO.
    AIRKRAFT 114050 AIRKRAFT 113067 AIRKRAFT 113068
    CONTITECH 603 N CONTITECH FD 120-20 509 FIRESTONE W01-358-7327
    FIRESTONE FLEX 26 FIRESTONE W01-358-7325 GOODYEAR 2B8-552
    FIRESTONE W01 358 0142 GOODYEAR 2B8-550
    PIRELLI 26



    Blind nuts, 1/4 NPT WO1-358-7325
    Blind nuts, 3/4 NPT WO1-358-7327

    bolts, nuts, washers
    WO1-358-7333
    Rubber bellows only WO1-358-0142



    AMERICAN CARRIER 8003006
    MACK TRUCK 227QS32
    MACK TRUCK 57QK1113
    AUTOMANN ABSP2B08RA-7325
    TRIANGLE 4509
    CONTI
    CONTI 64601
    CONTI FD 120-20 509
    FIRESTONE 7325
    FIRESTONE W013587325
    TRP AS73250
    WATSON & CHALIN AS-0030



    Type

    Order No.

    Rubber bellows only

    68628

    with crimped plates, G1/4 air inlet

    A = 0 mm excentrical

    62448

    with crimped plates, G3/4 air inlet

    A = 0 mm excentrical

    62055

    with stainless steel crimped plates,
    G3/4 air inlet

    A = 0 mm excentrical

    67814







    Used in many applications, including:



    Lifting equipment,
    Airbag press equipment,
    Vibrating conveyor air spring,
    Vibrating screen equipment air spring,
    air hammer
    Air spring vibration testing machine
    Foundry machinery,
    4 d cinema seat air spring,
    Air spring press equipment,
    Air spring vibration isolation equipment detection platform,
    Isolator air spring,
    Bus station air spring,
    Marble rocking air spring,
    Laundry dryer air spring equipment,
    Play equipment, air springs,
    Carousel air spring,





    Vibration isolation – dynamic characteristic values

    Design height H: recommended 205mm, minimum 190mm

    Pressure p [bar] 3 4 5 6 7 8 Vol. V [l]
    Force (Load) [kN] 4.6 6.2 7.8 9.4 11.1 12.7
    Spring rate [N/mm] 65 84 103 120 139 154.1 4.1
    Natural frequency [Hz] 1.9 1.8 1.8 1.8 1.8 1.7




    Pneumatic application – static characteristic

    Force F [kN]

    Pressure p [bar] 3 4 5 6 7 8 Vol. V [l]
    Height H [mm] 200 4.65 6.21 7.85 9.57 11.2 12.8 4
    160 5.84 7.75 9.75 11.9 13.9 15.8 3.4
    120 6.84 9.04 11.3 13.7 16 18 2.5
    80 7.34 9.67 12.1 14.7 17.1 19.5 1.7




    FD 120-20 CI Double Convolution Air Actuator For Mack 227QS32 Truck / Car Suspension Springs 0FD 120-20 CI Double Convolution Air Actuator For Mack 227QS32 Truck / Car Suspension Springs 1FD 120-20 CI Double Convolution Air Actuator For Mack 227QS32 Truck / Car Suspension Springs 2FD 120-20 CI Double Convolution Air Actuator For Mack 227QS32 Truck / Car Suspension Springs 3
