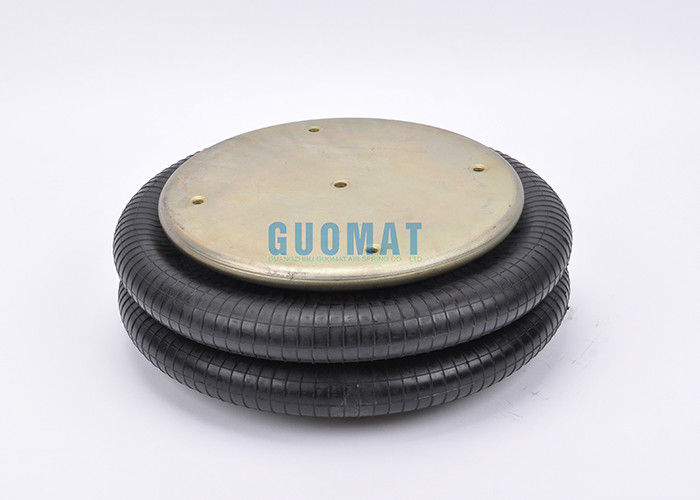

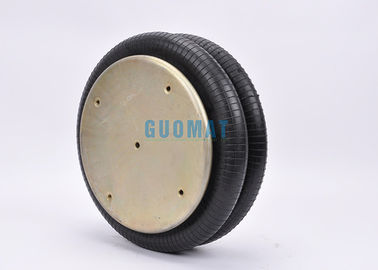

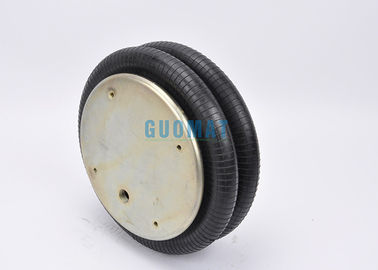

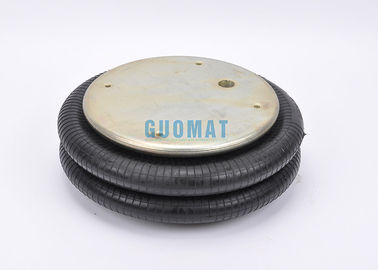

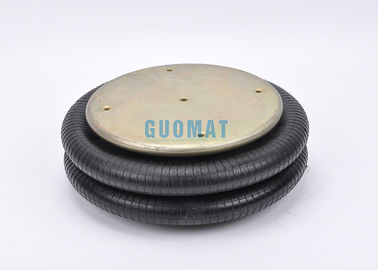

FD 530-22 CI Double Convolution Air Spring Actuator 12 Months Warranty

FD 530-22 CI Double Convolution Air Spring Actuator 12 Months Warranty

  • FD 530-22 CI Double Convolution Air Spring Actuator 12 Months Warranty
  • FD 530-22 CI Double Convolution Air Spring Actuator 12 Months Warranty
  • FD 530-22 CI Double Convolution Air Spring Actuator 12 Months Warranty
  • FD 530-22 CI Double Convolution Air Spring Actuator 12 Months Warranty
  • FD 530-22 CI Double Convolution Air Spring Actuator 12 Months Warranty
FD 530-22 CI Double Convolution Air Spring Actuator 12 Months Warranty
Product Details:
Place of Origin: China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 2B53022
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Steel And Rubber Contitech: FD530-22
Warranty: 12 Months Weight: 6.9 Kg
Other Name: Air Suspension Bags Pressure Ability: 0.2-0.8 M Pa
Package Size: 38*38*22 Cm
High Light:

convoluted air spring

,

air helper springs

FD 530-22 CI Double Industrial Air Bags Convolution Air Spring Actuator

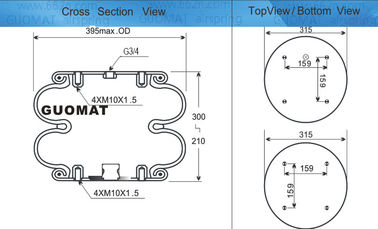

Technical Parameters of



Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 4 pcs X M10X1.75

Screw Center Distance of Top Cover Plate : 159 mm

Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X M10X1.75

Screw Center Distance of Bottom Cover Plate : 159 mm

Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 3/4NPT , Combination Stud/Air Inlet Stud

Cover Plate

Top Cover Plate Diameter (Width): 315 mm

Bottom Cover Plate Diameter (Width): 315 mm

Rubber Bellows

Rubber Bellows MAX Diameter : 395 mm

Maximum Height: 300 mm

Working Stroke : 90 mm

Bumper block / Buffer block

With Bumper Block

Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop



Type
Order No.
Rubber bellows only
60406
with crimped plates, G1/4 air inlet
A = 79.4 mm excentrical
61362
with crimped plates, G3/4 air inlet
A = 79.4 mm excentrical
66512
with crimped plates, G1 air inlet
A = 79.4 mm excentrical
2682075000



Overall weight 6.9 kg



OEM Original Equipment Manufacturer:



GUOMAT NO.:2B53022



Contitech No:FD530-22 311

Contitech No:FD530 22 311

Contitech No: Also known as: 64545,

Contitech No:FD530-22321


Comparable: W013587136,

W01-358-7136,

WO13587136,

WO1-358-7136

FIRESTONE:21T2 W01-358-7135

FIRESTONE:21T2 W01 358 7135

FIRESTONE:21T2 W013587135


GOODYEAR:2B14-360

GOODYEAR:2B14360

GOODYEAR:2B14 360


GOODYEAR::556 22 8 554

GOODYEAR::556-22-8-554

GOODYEAR::556228554





Vibration isolation – dynamic characteristic values

Design height H: recommended 250mm, minimum 225mm

Pressure p [bar]

3

4

5

6

7

8

Vol. V [l]

Force (Load) [kN]

15.2

20.7

25.8

31.5

36.8

42



Spring rate [N/mm]

222.5

286

349.5

413

476.5

540

19



Natural frequency [Hz]

1.9

1.8

1.8

1.8

1.8

1.7







Pneumatic application – static characteristic values

Force F [kN]

Pressure p [bar]

3

4

5

6

7

8

Vol. V [l]

Height H [mm]

260

14.1

19.3

24.1

29.5

34.5

39.4

20

220

18.2

24.4

30.5

37

43.2

49.1

17

180

21

28.2

35.3

42.6

49.7

56.8

14

140

23.1

31

38.7

46.5

54.3

61.9

11

100

24.4

32.3

40.4

48.7

56.8

64.7

7.2



FD 530-22 CI Double Convolution Air Spring Actuator 12 Months Warranty 0

FD 530-22 CI Double Convolution Air Spring Actuator 12 Months Warranty 1FD 530-22 CI Double Convolution Air Spring Actuator 12 Months Warranty 2





other kinds of guomat air spring refer to ​FD 530-22:



GUOMAT NO. Reference Order NO. Force (lbs) Max OD (in) Design height(in) Height Narural frequ.[cpm]
80 psi 100 psi Min MAX
FD 530 22 311 FD 530-22 311 161326 6530 8170 15 9.8 3.3 12.2 108
FD 530 22 316 FD 530-22 316 161327 6530 8170 15 9.8 4.1 12.2 108
FD 530 22 321 FD 530-22 321 161328 6530 8170 15 9.8 4.1 12.2 108
FD 530 22 342 FD 530-22 342 161329 6530 8170 15 9.8 4.1 12.2 108
FD 530 22 345 FD 530-22 345 161330 6530 8170 15 9.8 4.1 12.2 108
FD 530 22 374 FD 530-22 374 161331 6530 8170 15 9.8 3.3 12.2 108





Note:



The installation of components or kits should only be carried out by personnel who are experienced in the installation and correct operation of vehicle systems. The person installing a component or kit is also responsible for determining the suitability of the component or kit for a particular application.
Manufacturers and distributors are not responsible for misuse of these products. Make sure you use it according to the instructions and make sure the vehicle or equipment you are using is not suitable as different vehicles and equipment vary widely. Manufacturers and distributors are not responsible for the products you buy here.
