| Place of Origin: | Guangzhou,China（Main Land） |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1T9663 |
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | ＄69 |
| Packaging Details: | Carton/Cartons |
| Delivery Time: | 3-10 work days |
| Payment Terms: | T/T, L/C,PayPal |
| Supply Ability: | 1000 |
| Type: | Rolling Air Spring | GUOMAT NO.: | 1T9663 |
|---|---|---|---|
| Material: | Natural Rubber | Package: | Strong Carton |
| Model: | Truck | Warranty: | 12 Months |
| Condition: | New | Piston: | With Piston |
| Firestone: | W01-358-9663 | Hendrickson Truck: | 60271-2 |
| High Light: | air ride springs,firestone air springs |
||

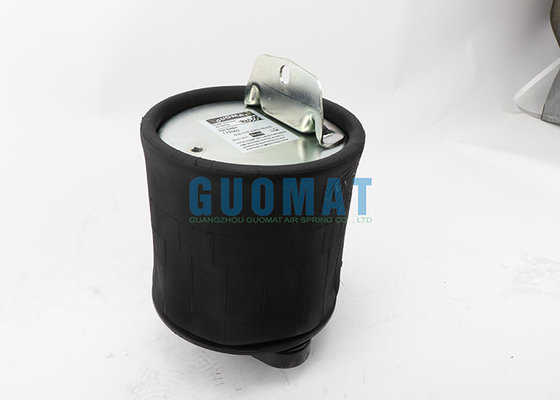

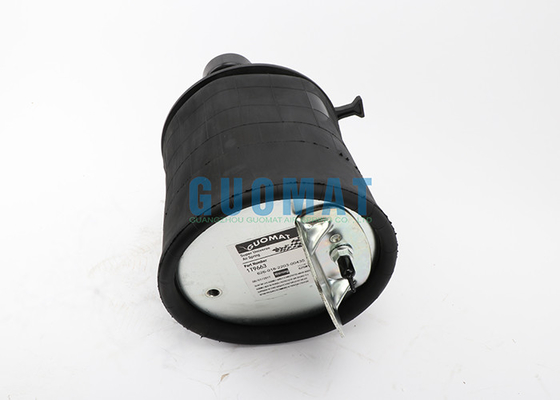

W01-358-9663 Firestone Rubber Bellows 1T15M-8 For Hendrickson Truck 60271-2
Product Information
GUOMAT NO. : 1T9663
Vehicle Type: Truck
Positon: The Floating Bridge
OEM Reference
Firestone 1T15M-8,
Firestone W01-M58-9663
Firestone W01 M58 9663
Firestone W01M589663
Vehicle OEM Reference
NEWAY M00557007

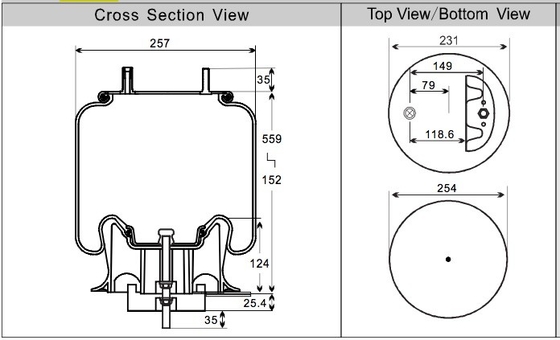

Technical Parameters

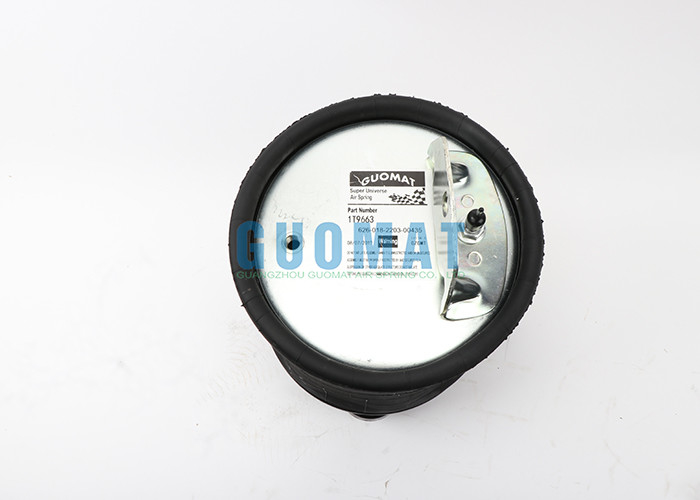

1.Top Cover Plate
Screw Bolt / Stud Tooth :1 pcs :M12
Gas Hole / Air inlet : M20X1.5 , M12X1.5
Top Cover Plate Diameter: Ø231 mm
Distance Between Air inlet and Stud: 149 mm

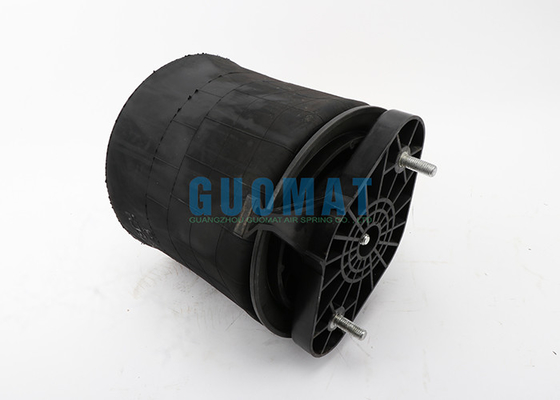

2.Piston
Screw Bolt / Stud Tooth :1 pcs :M12
Distance Between Two Stud :in the middle
Piston Diameter: Ø254 mm
Piston Height: 124 mm
| Air spring type | Inlet type |
| Reversible air spring | female |
| Top plate diameter | Top plate installation type |
| 9.00 | Bracket and air inlet |
| Piston diameter | Number of threaded holes on top plate |
| 10.00 | 1 |
| Bellows diameter | Number of studs on top plate |
| 10.12 | 1 |
| Piston height | Height of top plate stud |
| 4.87 | 1.35 |
| Piston material | The distance between the bracket installation and the air inlet |
| Synthetic | 5.87 |
| Maximum extension height | Piston installation type |
| 22.00 | Stud |
| Minimum compression height | Piston stud quantity |
| 6.00 | 1 |
| Number of bellows | With inner bumper |
| 1T15M8 | No |
About Us...
Guangzhou Guomat Air Spring CO., Ltd.is located in Guangzhou, about 15min’s drive from BAIYUN AIRPORT. Our mainly products air spring, rubber bellow, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.
Our goal is to make your choice easier and save your money. We serve customers world-wide by offering quality goods at unbeatable prices, all while maintaining a focus on superior customer service. PLEASE FEEL FREE TO ASKANY QUESTIONS. All questions will be answered promptly (usually in less than 24 hours except weekends and holidays)
Give us your trust and we'll help you to repair or update your car!
The Warranty Period of Air Spring
GUOMAT air spring made of high quality materials(natural rubber), the warranty period of One Year.
Our air spring provides high performance and dynamics while ensuring perfect grip and maximum driving comfort in any case. In addition to improving the stability of the vehicle, they can reduce the number of vibratory movements due to road defects to optimize the comfort of passengers and allow you to ride smoothly.
Our dampers are designed to provide excellent ride quality by quickly adjusting to different road and vehicle conditions while providing ultimate safety and functionality.
