|TYPE:||ROLLING LOBE AIR SPRING||GUOMAT NUMBER:||1T5311|
|MATERIAL:||NATRAL RUBBER||PACKAGE:||STRONG CARTONS|
truck air bag suspension,
air ride springs

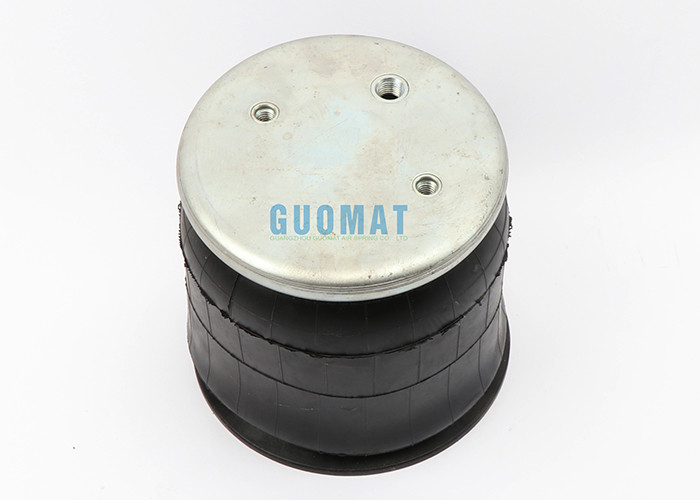

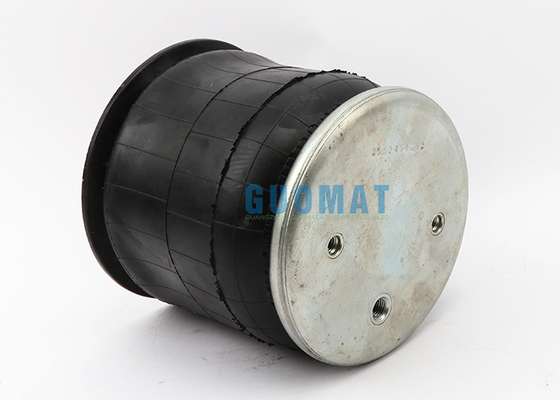

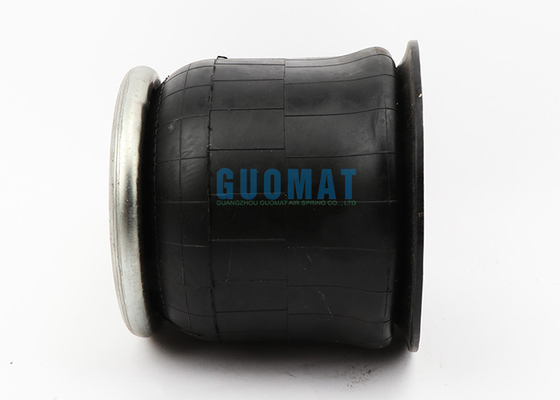

1R8-009 Bellows 1T14C-3 Firestone W01-358-5311 Firestone Rolling Lobe Air Spring
GUOMAT NO. :1T5311
VEHICLE TYPE: Truck
POSITION: The Floating Bridge
|Maximum Diameter @ 100 PSIG (mm)||231.14||Design Height||9|
|Maximum Height (mm)||322.58||Load (at Design Height) at: 40 psig (pounds)||1190|
|Maximum Stroke (mm)||195.58||Load (at Design Height) at: 60 psig (pounds)||1890|
|Minimum Usable Height (mm)||127||Load (at Design Height) at: 80 psig (pounds)||2570|
|Force @ 80PSI at Stroke of 1 Inch (pounds)||2790||Natural Frequency (@80 psig) (cpm)||86|
|Force @ 80PSI at Stroke of 3 Inch (pounds)||2570||% of Isolation at Forced Frequency 400 CPM||95.1|
|Force @ 80PSI at Stroke of Maximum Stroke (pounds)||1720||% of Isolation at Forced Frequency 800 CPM||98.8|
|Style Cross-Ref Extended Height (Similar End Closure) Style Number||1T14C3||% of Isolation at Forced Frequency 1500 CPM||99.7|
|Material||2-Ply Standard Cord||Blind Nut Centers (mm)||88.9|
|Bead plate Type||3||Port Offset from Blind Nut Centerline (mm)||44.45|
W01-358-5311, W013585311, WO1-358-5311, WO13585311
Firestone Bellows NO. 1T14C-1 & 1T14F-2
Firestone Bellows NO. 1T14C 1 & 1T14F 2
Firestone Bellows NO. 1T14C1 & 1T14F2
FIRESTONE W01-358-5311 / W01 358 5311 / W013585311
Style 1T14C-3;Blind nuts, 1/4 NPT:W01-358-5405;W01 358 5405.;W013585405.
VEHICLE OEM REFERENCES
Compressed Height: 5.40
Top Plate Number:3079
Top Plate Width:6.31
Firestone Bellows Number:1T14C-1 & 1T14F-2
Airmount / Airstroke Actuator
1T14C1 STYLE AIRSPRING, ROLLING LOBE TYPE, (2) 3/8-16 BLIND NUTS, 1/4" NPT OFFSET PORT, RUBBER BUMPER
WO1-358-5311, 1T14C1 RB2BN1/4OFF P.
LOAD RANGE ( ISOLATOR)............. .480-2700 1b
DESIGN HE IGHT RANGE ( ISOLATOR).. ..10.5-13.0 in
USEABLE STROKE (ACTUATOR)..............11.8 in
ASSEMBLY WEIGHT ................... .8.2 1b
Guangzhou Guomat Air Spring CO., Ltd.is located in Guangzhou, about 15min’s drive from BAIYUN AIRPORT.Our mainly products air spring, rubber bellow, air suspension compressor and refitted suspension system.They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.
Our goal is to make your choice easier and save your money. We serve customers world-wide by offering qualitygoods at unbeatable prices, all while maintaining a focus on superior customer service. PLEASE FEEL FREE TO ASKANY QUESTIONS. All questions will be answered promptly (usually in less than 24 hours except weekends and holidays)
Give us your trust and we'll help you to repair or update your car!
The warranty period of Air Spring
GUOMAT air spring made of high quality materials(natural rubber), the warranty period of One Year.
Our air spring provide high performance and dynamics while ensuring perfect grip and maximum driving comfort in any case. In addition to improving the stability of the vehicle, they can reduce the number of vibratory movements due to road defects to optimize the comfort of passengers and allow you to ride smoothly.
Our dampers are designed to provide excellent ride quality by quickly adjusting to different road and vehicle conditions while providing ultimate safety and functionality.
