| Place of Origin: | GUANGZHOU CHINA(MAIN LAND) |
| Brand Name: | Firestone |
| Certification: | ISO/TS16949:2009 |
| Model Number: | W01-358-5323 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | CARTON/CARTONS |
| Delivery Time: | 5-10 work days |
| Payment Terms: | T/T, L/C,PayPal |
| Supply Ability: | 1000 |
| TYPE: | ROLLING LOBE AIR SPRING | MATERIAL: | NATRAL RUBBER |
|---|---|---|---|
| PACKAGE: | STRONG CARTONS | MODEL: | TRUCK |
| WARRANTY: | 12 MONTHS | CONDITION: | NEW |
| SITUATION: | WITH PISTON | Firestone: | W01-358-5323 |
| High Light: | truck air bag suspension,air ride springs |
||

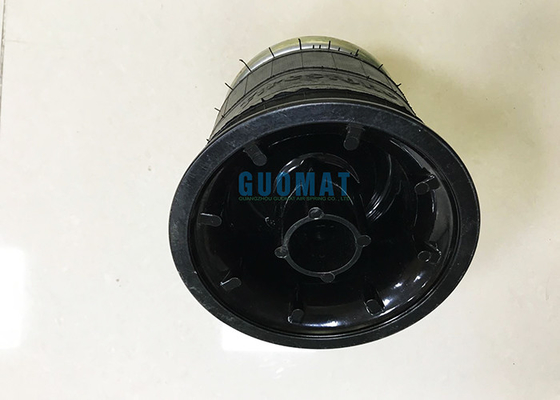

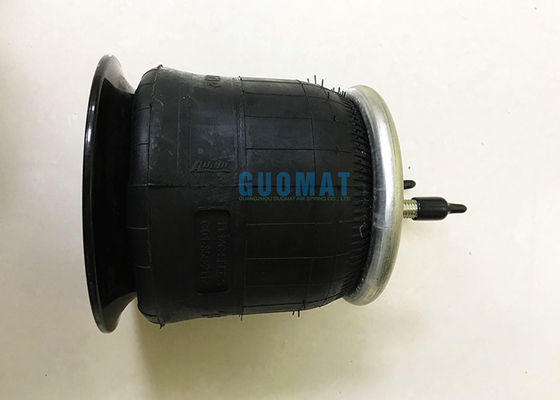

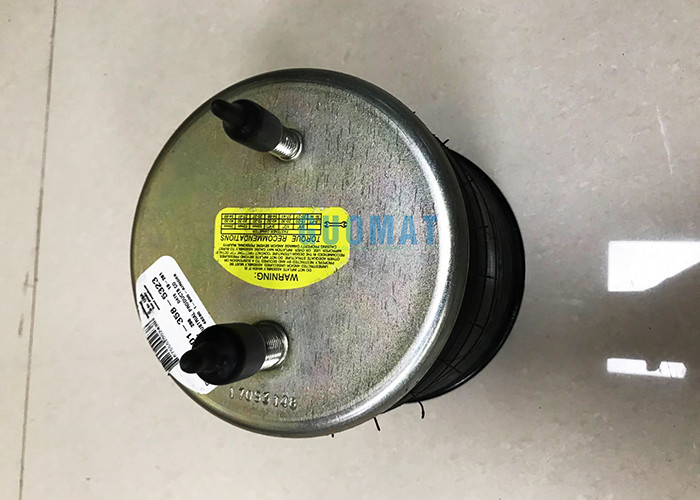

W01-358-5323 Firestone Air Shocks for Trucks Reversible Sleeve 1T14C-1 or 1T14F-2
Product Information
VEHICLE TYPE: Truck
POSITION: The Floating Bridge
W01-358-5323, W013585323, WO1-358-5323, WO13585323
| Maximum Diameter @ 100 PSIG (mm) | 231.14 | Design Height | 9 |
| Maximum Height (mm) | 322.58 | Load (at Design Height) at: 40 psig (pounds) | 1190 |
| Maximum Stroke (mm) | 195.58 | Load (at Design Height) at: 60 psig (pounds) | 1890 |
| Minimum Usable Height (mm) | 127 | Load (at Design Height) at: 80 psig (pounds) | 2570 |
| Force @ 80PSI at Stroke of 1 Inch (pounds) | 2790 | Natural Frequency (@80 psig) (cpm) | 86 |
| Force @ 80PSI at Stroke of 3 Inch (pounds) | 2570 | % of Isolation at Forced Frequency 400 CPM | 95.1 |
| Force @ 80PSI at Stroke of Maximum Stroke (pounds) | 1720 | % of Isolation at Forced Frequency 800 CPM | 98.8 |
| Style Cross-Ref Extended Height (Similar End Closure) Style Number | 1T14C3 | % of Isolation at Forced Frequency 1500 CPM | 99.7 |
| Material | 2-Ply Standard Cord | Blind Nut Centers (mm) | 88.9 |
| Bead plate Type | 3 | Port Offset from Blind Nut Centerline (mm) | 44.45 |
OEM REFERENCES
W01-358-5323, W013585323, WO1-358-5323, WO13585323
FIRESTONE 5323
Firestone Bellows NO. 1T14C-1 & 1T14F-2
Firestone Bellows NO. 1T14C 1 & 1T14F 2
Firestone Bellows NO. 1T14C1 & 1T14F2
FIRESTONE W01-358-5323 / W01 358 5323 / W013585323
VEHICLE OEM REFERENCES

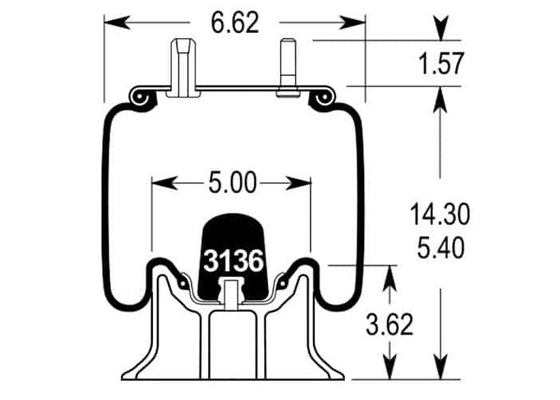

Extended Height:14.30
Compressed Height: 5.40

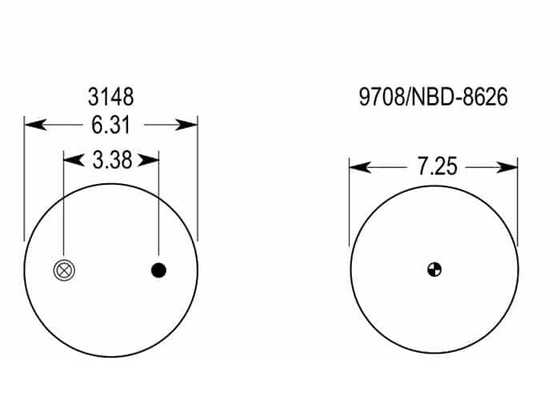

Top Plate Number:3079
Top Plate Width:6.31
Piston Number:9708
Piston Width:7.26
Firestone Bellows Number:1T14C-1 & 1T14F-2Granning Number:7504
Ridewell Number:1003585323C
Other kinds we can produce:
Style 1T14C-1 Two Ply Bellows
Blind nuts, 114 NPT:W01-358-5310;W01 358 5310;W01-358-5310
Blind nuts, 114 NPT, bumper:W01-358-5311;W01 358 5311;W01-358-5311
Blind nuts, 3/4 NPT:W01-358-5305;W01 358 5305;W01-358-5305
Blind nuts, 3/4 NPT, bumper:W01-358-5306;W01 358 5306;W01-358-5306
Countersunk steel bead ring 13/4 bolts, nuts, washers: W01-358-5307;W01 358 5307;W013585307
FEATURES :
LOAD RANGE ( ISOLATOR)............. .480-2700 1b
DESIGN HE IGHT RANGE ( ISOLATOR).. ..10.5-13.0 in
USEABLE STROKE (ACTUATOR)..............11.8 in
ASSEMBLY WEIGHT ................... .8.2 1b
ALUMINUM PISTON
