W013589215 CONTI 11105-15A414 Truck Air Springs For Hendrickson 1T9215

W013589215 CONTI 11105-15A414 Truck Air Springs For Hendrickson 1T9215

  • W013589215 CONTI 11105-15A414 Truck Air Springs For Hendrickson 1T9215
  • W013589215 CONTI 11105-15A414 Truck Air Springs For Hendrickson 1T9215
  • W013589215 CONTI 11105-15A414 Truck Air Springs For Hendrickson 1T9215
  • W013589215 CONTI 11105-15A414 Truck Air Springs For Hendrickson 1T9215
W013589215 CONTI 11105-15A414 Truck Air Springs For Hendrickson 1T9215
Product Details:
Place of Origin: Guangdong , China
Brand Name: GUOMAT
Certification: ISO/TS16949
Model Number: 1T9215
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: $59-159/pc
Packaging Details: strong carton box or as customer's need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,paypal or others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Rubber Bellows ,Steel Piston FIRESTONE: W013589215
Other Name: Air Spring Shock CONTITECH: 11 10 5-15 A 414
Flexi Member: 1T19L-5 GUOMAT NO.: 9215
High Light:

W013589215

,

11105-15A414

,

1T9215 Truck Air Springs

FIRESTONE Air Springs W013589215 CONTI 11105-15A414 For HENDRICKSON Truck GUOMAT 1T9215





Features and advantages

Almost no maintenance
Stress tested to ensure quality
Increase traction and towing capacity
Replace worn-out OEM airbags
Extend the service life of other suspension components
No maintenance-these airbags are the real workhorse and do not require any maintenance after initial installation
Direct replacement from OEM air spring-no other components required
Ideal for extending the overall service life of the suspension – Torque air springs are the most convenient and reliable solution

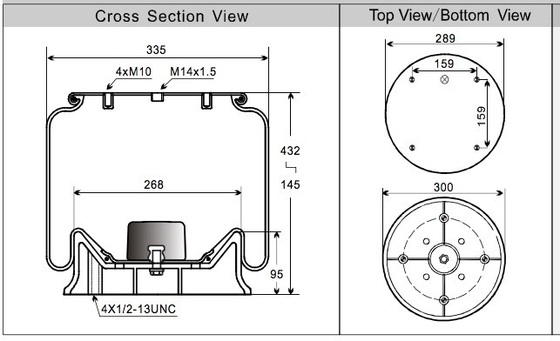

FIRESTONE Air Springs W013589215 specification:





Base plate/neutron type: aluminum

Number of top plate holes/studs: 5

Top plate diameter: 11.3

Top plate C to C diameter: 6.25

Base plate hole bolt Qyt: 4

Diameter of base plate: 11.7

Diameter of base plate C to C: 7.87

Base plate part number: 566-20-7-334

Bottom plate alignment: 45 degrees

Bumper: Yes

Bracket: Not applicable

Minimum height: 5.7

Maximum height: 18



OEM Cross Number:



GUOMAT NO. 1T9215

GOODYEAR 1R14-037

Flexi Member 566-28-3-015

UTOMANN
AB1DK28L-9215
HENDRICKSON
B-3648
CONTI
11 10 5-15 A 414 64424
DAYTON
352-9215
FIRESTONE
9215 W013589215
INT’L/ NAVISTAR 554781C1
LOAD GUARD SC2047
TRIANGLE
8414

EFS9215, 1R14037, 9204, 8414, B-3648, 554781C1, SC2047, 64424, 11 10.5-15 A 414, 1110.5-15A414, 1110.515A414, W01-358-9215, W013589215, W01-358-9204, W013589204





OEM Suspension Supplier Number:



Goodyear Number: 1R14-037

Bellows type: rolling leaf

Ultraman bellows Number: 1DK28L

Firestone bellows Number: 1T19F-5, 1T19L-5

Goodyear Bellows Number: 566-28-3-015

Contitech bellows Number: 11 10.5-15

Triangle bellows Number: 6417



W013589215 CONTI 11105-15A414 Truck Air Springs For Hendrickson 1T9215 0
