| Place of Origin: | Guangdong , China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949 |
| Model Number: | 1T8806 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $59-159/pc |
| Packaging Details: | strong carton box or as customer's need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,paypal or others |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber Bellows ,Steel Piston | FIRESTONE: | W01-358-8806 |
|---|---|---|---|
| Other Name: | Rolling Lobe Air Spring | Cover Plate OD: | 286 MM |
| Air Inlet / Air Fitting: | M24 | GOODYEAR Number: | 1R12-445 |
| CONTITECH: | 910-14A545 | Dallas: | AS8806 |
| Bellows Number: | 1T15M-4 | ||
| High Light: | 286MM Truck Air Springs,W01-358-8806 Truck Air Springs,1T15M-4 Truck Air Springs |
||

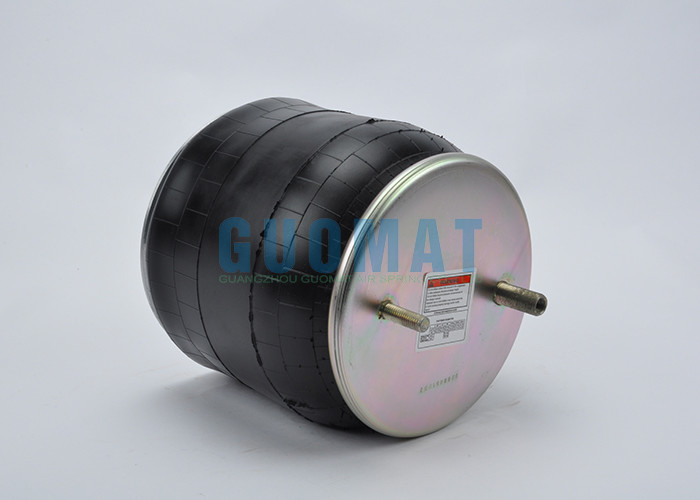

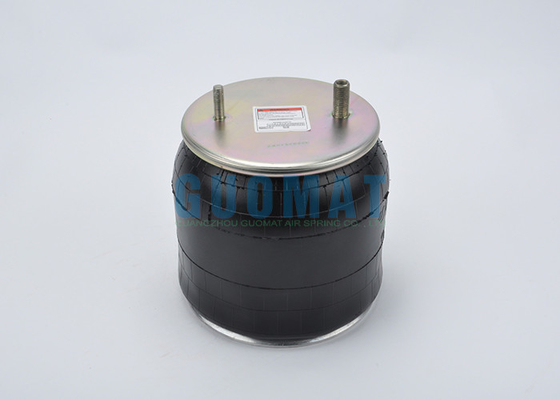

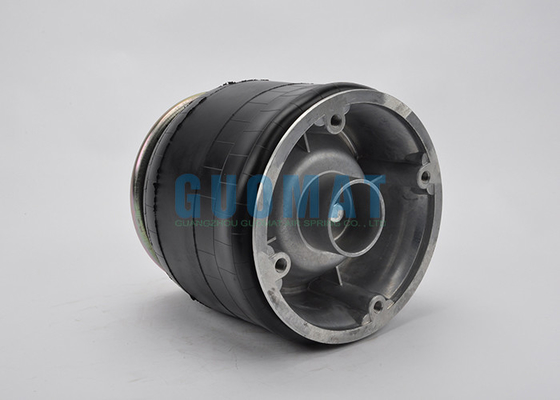

Truck Air Springs W01-358-8806 FIRESTONE Bellows Number 1T15M-4
GUOMAT NO.:18806 Air Springs SIZES:
| Air spring type | Inlet type |
| Reversible air spring | male |
| Top plate diameter | Inlet height |
| 9.00 | 1.57 |
| Piston diameter | Top plate installation type |
| 9.75 | Air inlet and stud |
| Bellows diameter | Number of studs on top plate |
| 10.12 | 1 |
| Piston height | Height of top plate stud |
| 3.75 | 1.57 |
| Piston material | The distance between the top plate stud and the air inlet |
| aluminum | 5.50 |
| Maximum extension height | Piston installation type |
| 17.00 | Threaded hole |
| Minimum compression height | Piston threaded hole quantity |
| 5.50 | 4 |
| Number of bellows | Piston threaded hole spacing |
| 1T15M4 | 7.89 |
| With inner bumper | |
| Yes |
OEM Cross Number:
GUOMAT NO.:1T8786
Firestone W01-358-8806
Firestone W01 358 8806
Firestone W013588806
Goodyear 1R12-445
Goodyear 566-24-3-076,
Goodyear 566-20-7-156,
Goodyear ASA-92-8-164,
1T15M-4,3235,9656,
NBD-10267
Automann AB1DK23I-8806,
Goodyear 1R12-445,
Ridewell 1003588806C,
Contitech 910-14A545,
Firestone 8806,
Contitech 64486,
Dallas AS8806,
GUOMAT NO.:18806 quick details:
| Place on the vehicle: | Left, Right, Front, Rear | type: | Air Suspension Spring |
| Decoration type: | Direct Replacement | size: | Single Dimension(CM) 42.00(Length)*30.00(Width)*30.00(Height) |
| Unit weight (KG): | 11.400 | Including the upper installation isolator: | No Isolator Required |
| Including the lower installation isolator: | No Isolator Required | Upper installation type: | Stud |
| Lower installation type: | Stud | Included hardware: | None |
| Drive layout: | Universal | platform: | Universal |
| Custom bundle: | Yes | Material: | Iron,Aluminium Alloy,Rubber |
| quantity: | Pair | Manufacturer's Warranty: | 1 Year |
| OE specifications or performance/customization: | OE Spec | adjustable: | Yes |
| feature: | Sealed | brand: | Guomat or Netural |
| Unified code: | Does not apply | Manufacturer Part Number: | 1T8806 |
