| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | W01-M58-6348 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $59.9-169.9/pc |
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs/week |
| Name: | Aluminum Plate Air Spring Isolator | Material: | Rubber+Aluminum+Steel |
|---|---|---|---|
| Goodyear: | 1R14-729 | Firestone: | W01-M58-6348 |
| Contitech: | 4023 NP 03 | SAF: | 3.229.0031.00 |
| Warranty: | 12 Months | Package: | Strong Carton |
| High Light: | 1R14-729 Goodyear Rubber Air Spring,Truck Rubber Air Spring,W01-M58-6348 Rubber Air Spring |
||
1R14-729 Goodyear Rubber Air Spring Contitech 4023 NP 03 Truck Air Suspension Replacement
●Material : Natural Rubber
●Warranty : 1 Year
●Rubber : Air Spring
●Application : Truck SAF
●Packing Size : 29*29*42
●Place of Origin : GuangDong
●MOQ : 1 Pieces
●Delivery Time : 2-8 working days
●Other Name : Truck Air Spring Kit
Manufacturer Part Number
|
FIRESTONE |
W01-M58-6348 |
|
FIRESTONE |
1T19F-11 |
|
CONTITECH |
4023 NP 03 |
|
GOODYEAR |
1R14-729 |
|
PHOENIX |
1D28A-10 |
|
TAURUS |
KR 624-18 |
|
DUNLOP |
D13B26 |
|
CF GOMMA |
1T19E-2 |
|
CF GOMMA |
204676 |
Vehicle Reference Number
|
SAF |
3.229.0031.00 /32290031 |
|
SAF |
3.229.2231.00 /32292231 |
|
SAF |
3.229.2431.00 /32292431 |
|
SAF |
3.229.2131.00 /32292131 |
SAF Contitech 4023NP03 Air Ballon Spring Technical Data
Cover Plate
Top Cover Plate Diameter : 289mm
Stud Center Distance of Top Cover Plate : 210mm
Distance Between Stud and Central Axis : 25mm
Air Inlet
Air Inlet : M22x1.5
Distance Between Air Hole and Central Axis : 95 mm
Bolt / Stud
Stud : 2xM12x1.75
Bumper Block / Buffer Block
Bumper Block height :58 mm
Bottom Piston
Bottom Piston Diameter : 260mm
Bottom Piston Height :178 mm
Middle faster between center Bolt : 200 mm
w01-m58-6348 4023NP03 1R14-729 1D2A-10 KR624-18 D13B26 1T19E-2 204676
3229003100 W01 M58 6348 3.229.0031.00 w01 m58 6348 3.229.2231.00 3229223100
3.229.2431.00 3229243100 3.229.2131.00 3229213100
We are able to provide multiple projects BPW and SAF
| No | OEM Number | Application |
| 1 |
3229004100
|
For SAF |
| 2 |
2229000200
|
For SAF |
| 3 |
32280010
|
For SAF |
| 4 |
3229000300
|
For SAF |
| 5 |
3229000500
|
For SAF |
| 6 |
3229000501
|
For SAF |
| 7 |
3229000501
|
For SAF |
| 8 |
3229000700
|
For SAF |
| 9 |
3229000702
|
For SAF |
| 10 |
0220024600
|
For BPW |
| 11 | 0542940010 | For BPW |
| 12 | 0542941361 | For BPW |
| 13 | 0542940081 | For BPW |
| 14 | 0542940611 | For BPW |
| 15 | 3229001300 | For SAF |
| 16 | 3229002700 | For SAF |
| 17 | 3229002800 | For SAF |
| 18 | 3229002900 | For SAF |
| 19 | 3229212900 | For SAF |
| 20 | 3229213100 | For SAF |
| 21 | 0220024100 | For BPW |
| 22 | 0542940340 | For BPW |
| 23 | 0542940610 | For BPW |
| 24 | 0542940910 | For BPW |
| 25 | 0542940931 | For BPW |

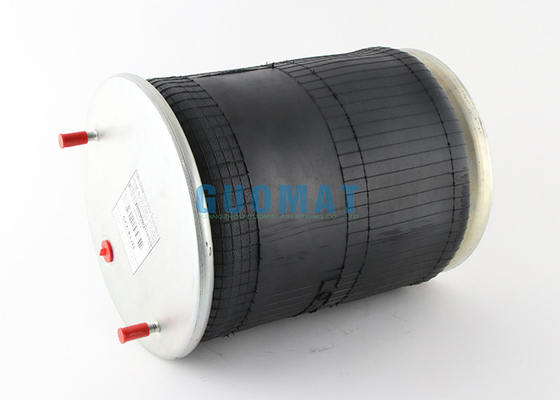

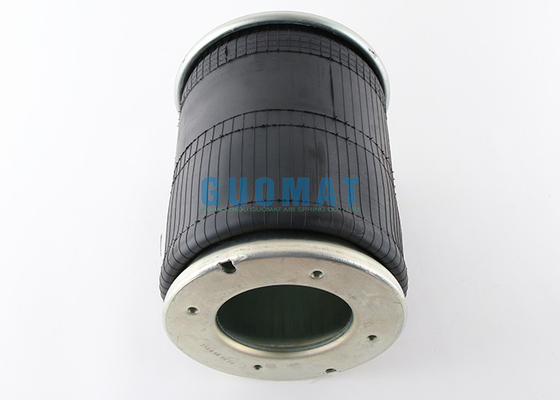

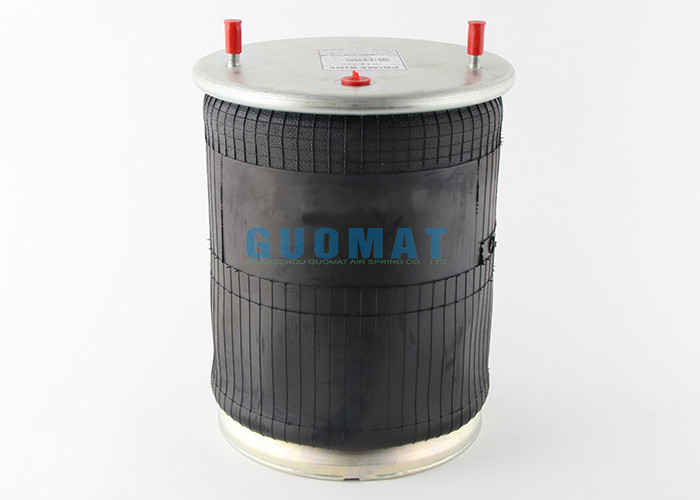

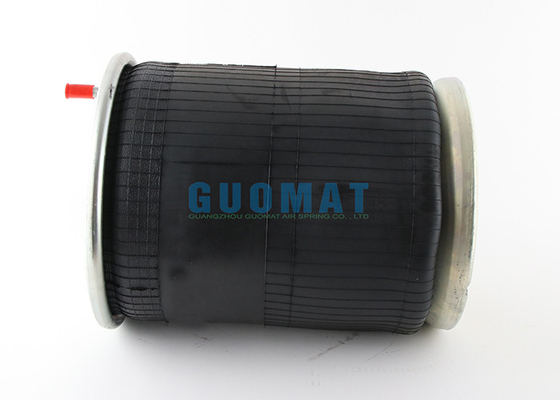

Product Picture
